Mobile Payment Terminal PCI + EMV Certified Bluetooth MPOS With Keypad HTY711
Simple and Practical: Well-Designed, Large Button Design, Convenient Input.
Mobile Payment Terminal PCI + EMV Certified Bluetooth MPOS With Keypad HTY711
Simple and Practical: Well-Designed, Large Button Design, Convenient Input.

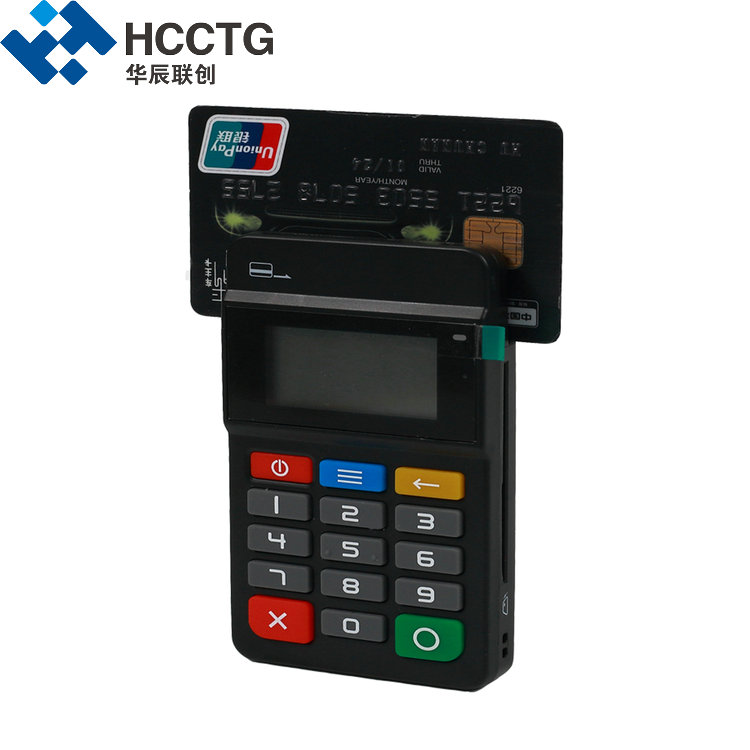

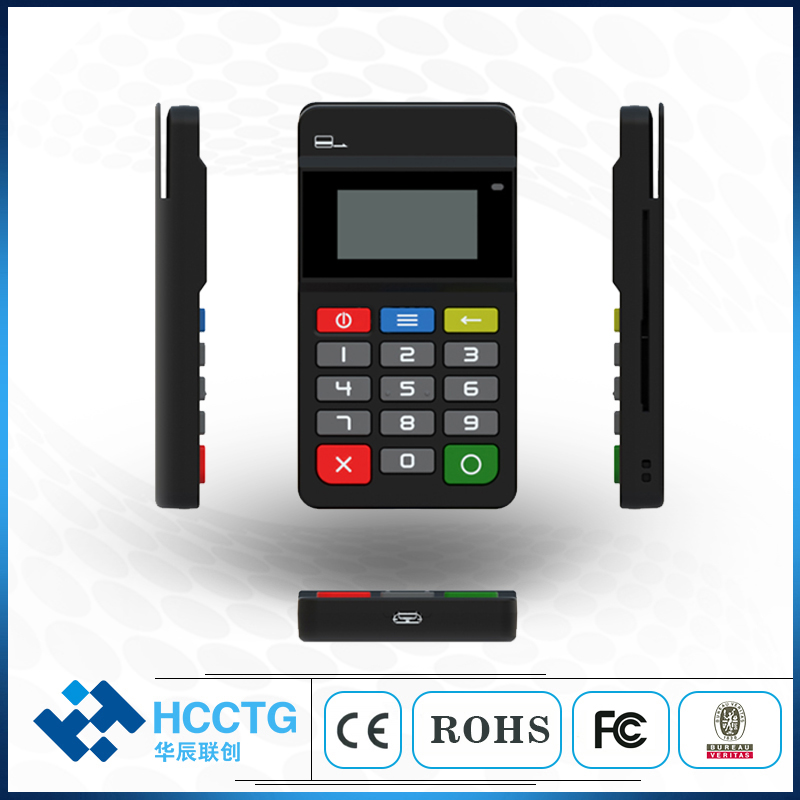

MPOS HTY711 is an innovative mobile payment terminal, connects with mobile phones and other smart devices via Bluetooth, combined with multiple applications and networks while providing portable intelligent mobile inquiry solution, it is small and portable, simple operation, safe and reliable.
Wireless Connection: Connects with mobile phone via Bluetooth: free from cables and improving payment experience.
Comprehensive Adaption: Supports for Bluetooth: 3.0/4.0,Android, IOS;
Exceptional Functions: Supports for all types of payment including Magnetic Stripe Card, IC Card (Contact & Contactless) and others.
Security Guarantees : Built-in high-grade security chip, dynamic state PSAM slot configuration to keep safe transaction.
Specifications
|
Processor |
32-bits CPU |
|
Memorizer |
8MB flash |
|
Display |
128*64 lattice LCD display |
|
Buttons |
10 numerical buttons, 4 functional buttons, Power On/Off button |
|
Card reader |
Magnetic Stripe Card Reader: Track1&2&3, Triple track |
|
IC Card reader |
ID-1 IC Card Reader, Capability of 1.8V/3V/5V Card |
|
Contactless Card Reader |
Supports for 13.56MHzContactless IC Card, ISO14443 TYPE A/TYPE B Card, M1 card |
|
Peripheral Ports |
Micro-USB, IC Card Slot, Magnetic Stripe Card Slot, PSAM Slot (Optional) |
|
Communication |
Bluetooth:3.0/4.0, Sleep Mode, Low Power Mode |
|
Power & Battery |
Built-in Rechargeable lithium ion battery, Support for More than 500 transactions by Magnetic Stripe Card and IC Card |
|
Indicator |
LED status indicator |
|
Buzzer |
Built-in buzzer; Transaction Alert; |
|
Dimension |
111mm*60mm*12mm(approx) |
|
Weight |
68g(approx) |
|
Certifications |
CE-RED; FCC ID; ROHS; UN38.3; MSDS EMV L1 & L2, PBOC 3.0 L1 & L2, Support China Union Pay electronic signature |
