The grounding terminal is used for medical equipment, easy to plug and unplug, small contact resistance, can be equipped with various specifications of grounding harnesses, can be customized according to customer requirements, high reliability.
The grounding terminal is used for medical equipment, easy to plug and unplug, small contact resistance, can be equipped with various specifications of grounding harnesses, can be customized according to customer requirements, high reliability.
Equipotential socket for medical equipment
The special grounding terminal for medical equipment can be plugged in and out quickly with minimal contact resistance, and is equipped with grounding harnesses of various specifications. It can be customized according to customer needs, with fast connection and high reliability. It is suitable for grounding and eliminating potential difference of various medical equipment and precision instruments.

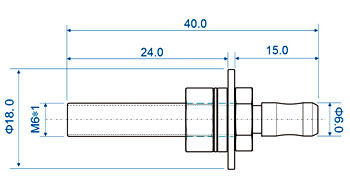

Products And Drawings For Ground Terminal
OLD06-02 Ground Terminal
OLD06-02 Cut Out Hole Size
OLD06-03 Ground Terminal
OLD06-03 Cut Out Hole Size

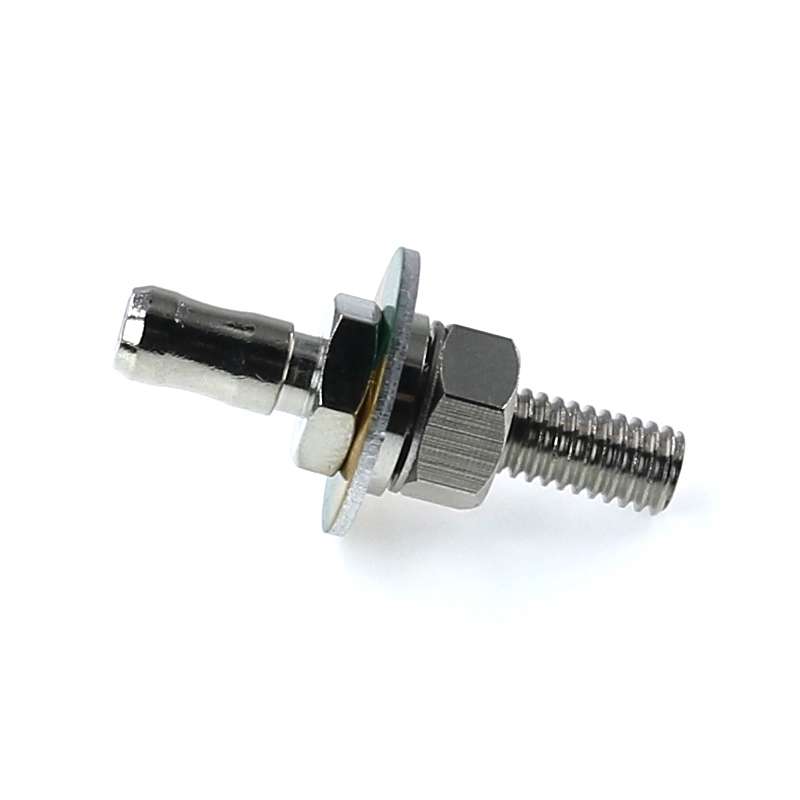

Ground Terminal physical
OLD06-04 Ground Terminal
OLD06-04 Cut Out Hole Size
*OLD06 Type grounding terminal (equipotential terminal) is currently available in lengths of 30mm, 35mm, and 40mm, and customized size products can be provided.
Both heads are OLDD06 adapter interface
One end is the OLDD06 adapter interface, and the other end is the ground clip
parameter of Ground Terminal
Connector Type
Ground Terminal L=30mm 35mm 40mm
Finishing
Nicke Plating
Accessory Type
Adapter,Distributor
Connection Gender
Male
For Use With
Medical Device
Protection Degree
\
Interface
Potential Socket
Voltage Rating
30V AC/DC
Orientation
Straight
Operating Temperature Range
-30~80(Fixed)°C,-5~80(Flexible)°C
Conductor Material
Copper
Body Material
Brass
Current Rating
10A
*Optional accessories for OLD06 equipotential terminal, one type is OLD06 adapter connector with both ends; the other type is OLD06 adapter connector with one end and ground clamp at the other end. Harness accessories with grounding clips are more convenient and flexible to use. Line length, line diameter and connection structure can be customized.
Optional grounding wire accessory
*For more information, please contact us through the contact information on the right side of the page.
