One Pair Of MC4 3 To 1 T-Branch Connectors For Solar Panels. Includes Both MMMF And FFFM. Used For Parallel Connection Between Panels And Maintain The Voltage Of Your Panel Configuration.
One Pair Of MC4 3 To 1 T-Branch Connectors For Solar Panels. Includes Both MMMF And FFFM. Used For Parallel Connection Between Panels And Maintain The Voltage Of Your Panel Configuration.

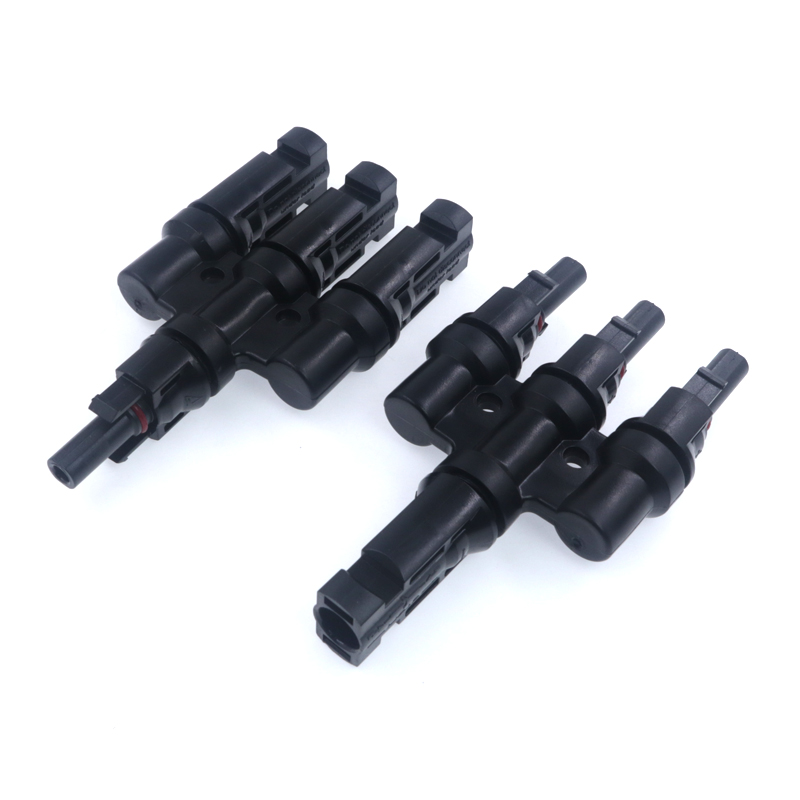

MC4 solar Connector T-Branch 3 to 1 Splitter MMMF + FFFM Pair
| Description Of MC4 T Branch connector |
The MC4 system consists of a plug and socket design. The plugs and sockets are inside plastic shells that appear to be the opposite gender - the plug is inside a cylindrical shell that looks like a female connector but is referred to as male, and the socket is inside a square probe that looks male but is electrically female.
| Drawings Of 3 In 1 MC4 Connector |
| Technical Data For 3 In 1 MC4 Connector |
| Product name | T branch Connector |
| Rated voltage | 1500V DC（IEC） |
| Rated currect |
17A(1.5MM2) 22A(2.5MM2, 14AWG) 30A(4mm2, 6mm2, 12AWG, 10Awg) |
| Degree of protection mated | IP67 |
| Insulation material | PC/PPO |
| Locking system | Snap-in |
| Flame class | UL-94-V0 |
| Contact material | Messing, Verzinnt copper alloy, tin-plated |
|
More T-Branch Type Solar Connectors |
||||||
 |
|
 |
|
 |
|
 |
| PV-T2 |
|
PV-T4 |
|
PV-T5 |
|
PV-T6 |
*For more information, please contact us by email or through any contact information on the webpage.
