Ball: 440c Stainless Steel;Rc 56 Min.
Race: 17-4PH,Stainless Steel,Heat Treated;
Liner: Teflon Fabric,Permanently Bonded to Race I.D.
Ball: 440c Stainless Steel;Rc 56 Min.
Race: 17-4PH,Stainless Steel,Heat Treated;
Liner: Teflon Fabric,Permanently Bonded to Race I.D.

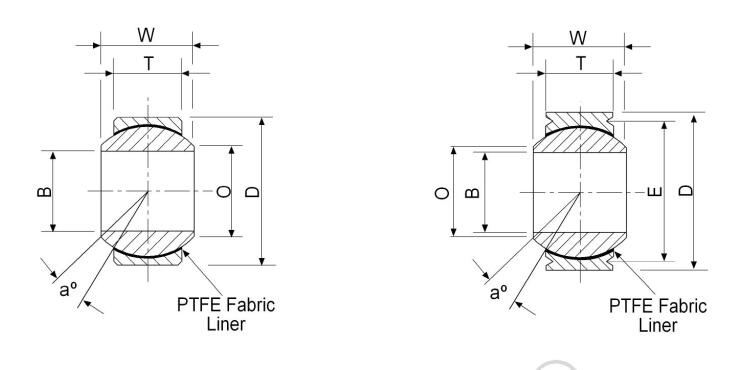

| Bearing No. |
B
+.0000
-.0005
|
D
+.0000
-.0005
|
w
+ .000
-.005
|
T
±.005
|
E
+.000
-.010
|
0
REF
|
Ball
Diameter
REF
|
a0
Misalign
Angle
|
Static
Radial
Limit Load
(Pounds)
|
Static
Axial
Limit Load
|
Dynamic
Oscillating
Radial Load
(Pounds)
|
Approx.
Weight
(Pounds)
|
| Ball Bore | Outside Diameter | Ball Width | Race Width | "V'Groove Diameter | Ball Flat Diameter | |||||||
| NSSB3 | .1900 | .5625 | .281 | .218 | .502 | .293 | .406 | 10 | 3,975 | 150 | 1,500 | .020 |
| NSSB4 | .2500 | .6562 | .343 | .250 | .596 | .364 | .500 | 10 | 6.040 | 430 | 2,320 | .020 |
| NSSB5 | .3125 | .7500 | .375 | .281 | .652 | .419 | .562 | 10 | 8,750 | 700 | 3,430 | .030 |
| NSSB6 | .3750 | .8125 | .406 | .312 | .714 | .515 | .656 | 9 | 10,540 | 1,100 | 4,200 | .040 |
| NSSB7 | .4375 | .9062 | .437 | .343 | .808 | .570 | .718 | 8 | 13,200 | 1.400 | 5,700 | .050 |
| NSSB8 | .5000 | 1.0000 | .500 | .390 | .878 | .641 | .813 | 8 | 17,900 | 2,100 | 7,900 | .070 |
| NSSB10 | .6250 | 1.1875 | .625 | .500 | 1.065 | .739 | .968 | 8 | 30,500 | 4,720 | 13,400 | .120 |
| NSSB12 | .7500 | 1.4375 | .750 | .593 | 1.315 | .920 | 1.187 | 8 | 46,400 | 6,750 | 19,700 | .210 |
| NSSB14 | .8750 | 1.5625 | .875 | .703 | 1.440 | .978 | 1.312 | 8 | 62,200 | 9,350 | 26,100 | .270 |
| NSSB16 | 1.0000 | 1.7500 | 1.000 | .797 | 1.628 | 1.118 | 1.500 | 9 | 82,200 | 12,160 | 34.100 | .390 |
Bearing No.
B
+.0000
-.0005
D
+.0000
-.0005
w
+ .000
-.005
T
±.005
E
+.000
-.010
0
REF
Ball
Diameter
REF
a0
Misalign
Angle
Static
Radial
Limit Load
(Pounds)
Static
Axial
Limit Load
Dynamic
Oscillating
Radial Load
(Pounds)
Approx.
Weight
(Pounds)
Ball Bore
Outside
Diameter
Ball
Width
Race
Width
"V'Groove
Diameter
Ball
Flat Diameter
NSSB3V
.1900
.5625
.281
.218
.502
.293
.406
10
3,975
150
1,500
.020
NSSB4V
.2500
.6562
.343
.250
.596
.364
.500
10
6.040
430
2,320
.020
NSSB5V
.3125
.7500
.375
.281
.652
.419
.562
10
8,750
700
3,430
.030
NSSB6V
.3750
.8125
.406
.312
.714
.515
.656
9
10,540
1,100
4,200
.040
NSSB7V
.4375
.9062
.437
.343
.808
.570
.718
8
13,200
1.400
5,700
.050
NSSB8V
.5000
1.0000
.500
.390
.878
.641
.813
8
17,900
2,100
7,900
.070
NSSB10V
.6250
1.1875
.625
.500
1.065
.739
.968
8
30,500
4,720
13,400
.120
NSSB12V
.7500
1.4375
.750
.593
1.315
.920
1.187
8
46,400
6,750
19,700
.210
NSSB14V
.8750
1.5625
.875
.703
1.440
.978
1.312
8
62,200
9,350
26,100
.270
NSSB16V
1.0000
1.7500
1.000
.797
1.628
1.118
1.500
9
82,200
12,160
34.100
.390
This series is also available with an optionl 52100 heat treated and hard chrome plated ball. To specify this configuration use p/n NSBT(3-16)OR NSBT(3-16)v in place of part numbers in table.
