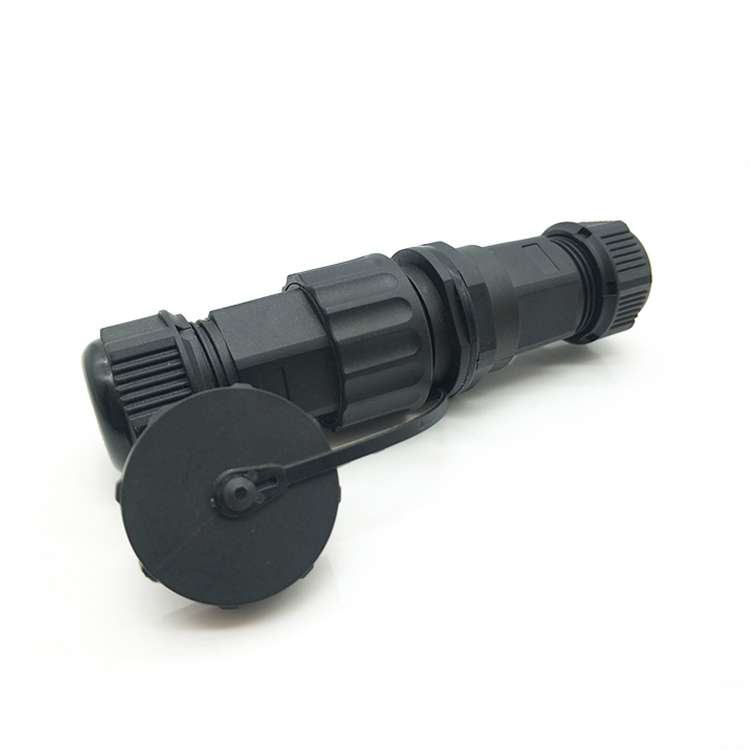

M20 panel mount waterproof electrical connector

M20 connector is screw type IP68 waterproof electrical connector.The user can attach the wires to the connector by screw.

Product Details

M20 panel mount waterproof electrical connector

  Description Of M20 Bayonet Connector

M20 waterproof electrical connector is widely used in outdoor and underwater wire connection.

  • Contact: 2 poles, 3 poles and 4 poles
  • Wire to wire connection
  • Wire to board connection
  • Current:20A
  • Cable OD:8-12(mm)
  • Shell material:Nylon66,Fire resistance:V-0
  • Insert material: PPS max temperature 260
  • Contact material:Brass with gold plating


  Drawing of M20 Connectors


The M20 panel mount waterproof connector has a larger shell and a higher current range. It is a rugged and durable connector designed for indoor/outdoor IP67 environments. It is designed for bayonet docking and is an ideal choice for any waterproof connection conditions that require quick plug-in.

The connectors can be used for both cable to cable (in-line) and cable to panel-mount connections. Each side can be male or female contact, (Plug or socket versions), the IP67 Sealing caps are available for both cable connector and panel connector.


FAQ:

What are electrical connectors called?

Electrical connectors generally refer to connecting devices that connect two circuits. There are single-potential and multi-potential connections, as well as different levels of waterproof electrical connectors.


*If you need more information, you can find customer service through the contact information on the right side of this page.
