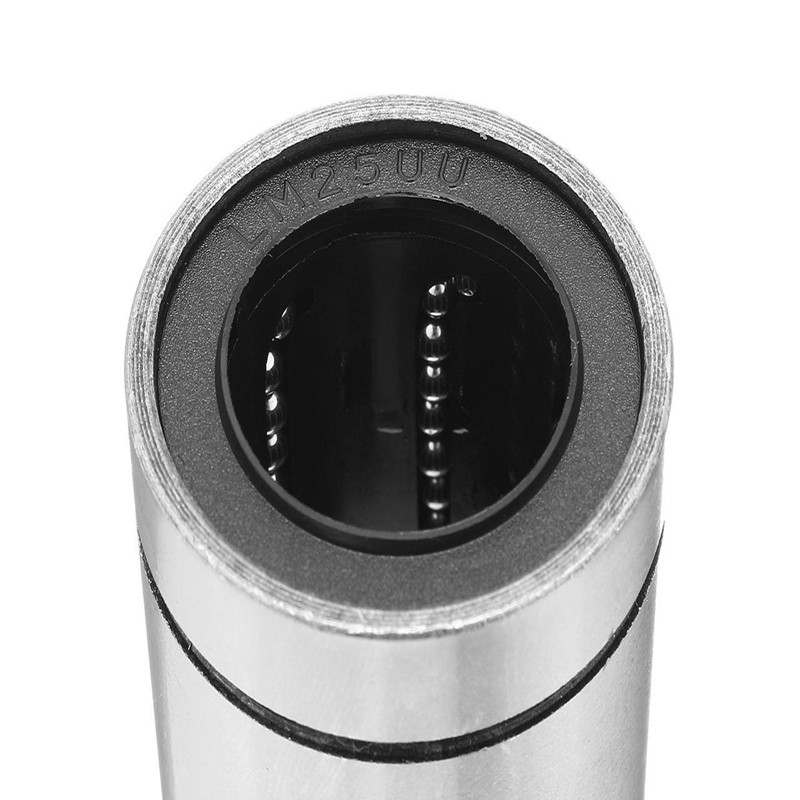

LM25UU Linear Motion Bushing, chromium Steel shell and bearing ball, good abrasion resistance, high precision and good strength.
. Item: LM25UU Linear Motion Bushing
. Type: Linear Motion Bushing. Size: 25mm x 40mm x 59mm
. Lead Time: 10 to 60 days
. Product Origin: Fuzhou, Fujian, China
. Shipping Port: Fuzhou, Ningbo, Yiwu, Shanghai
. Payment: T/T, L/C
The LM25UU Linear Motion Bushing gives you very precise, safe and reliable linear motion system. Such linear motion bearings are mostly used in 3D printers and CNC (Computer Numerical Control) machines. An LM25UU 25 MM Linear Motion Bearing can provide low friction motion along a single axis, hence find a wide range of applications in DIY and robotics prototyping.
This LM25UU Linear Motion Bushing closed type ball bushing has an 25mm bore and 40mm outer diameter is suitable for use in a mounted slide unit to carry components. These Bearings has various standardized parts which are interchangeable, so need no worry about replacement of any worn parts.
The linear motion ball bushing employs a high-carbon chromium steel case for strength and rigidity, a synthetic resin retainer plate for accurate ball guidance and low noise. The universal Ball Bearings is great for you to replace the damaged Ball Bearings in your devices for improving the efficiency and saving the energy. Balls in the cage loop run along a smooth ball guide surface to ensure low noise even in the high-speed operation.
Since Linear Motion bearings slide along the round shaft, for the reliable and smooth motion the shaft must be lubricated. The quality of the shaft directly influences the quality of linear motion we get. So, using chrome plated G6 Tolerance and hardened shaft may serve beneficial.
| Bearing No.: | LM25UU |
|
|
|---|---|---|---|
| Cage Material: | Nylon | ||
| Normal Shaft Dia.(dr): | 25mm | ||
| Outer Dia.(D): | 40mm | ||
| Total Length (L): | 59mm | ||
| Ball Circuit: | 5 | ||
| Dynamic (Cr): | 980kN | ||
| Static (Cor): | 1570kN | ||
| Weight: | 200g |
| Type | Straight | Motion | Linear Motion |
|---|---|---|---|
| Style | Standard | Outer Cylinder Material | [Steel] 52100 Bearing Steel Equivalent |
| Outer Cylinder Surface Finish | None | For Shaft Diameter(mm) | 25 |
| Overall Length L(mm) | 59 | Lubrication Type | Standard |
| O.D. D(mm) | 40 | Weight | 220g |
| Length | Single | Ball Recirculating Type | Single |
| Basic Dynamic Load Rating (Details)(N) | 980 | Basic Static Load Rating(N) | 1570 |
| Precision | High Grade | Inner Contact Circle Tolerance (Negative Side)(mm) | -0.009 |
| Eccentricity(µm) | 15 | Ball Material | 52100 Bearing Steel Equivalent |
| Retainer Material | Plastic (Duracon M90 Equivalent) | Seals | With Seal |
| Greased filled | Standard (Rust Prevent Oil) | RoHS | 10 |
Industry Packing + export carton + pallet/wooden box
Commercial Individual Packing - VCI bag + paper box (white or OEM colorful) + export carton + pallet/wooden box
By Sea for mass cargo (GW > 300KGS)
By Air (GW between 100KGS - 300 KGS)
By Express, such as DHL, TNT, Fedex and UPS for small cargo ( GW < 100KGS)
Buying at a profit. Direct manufacturer always offer you products with lowest prices;
Fast shipping. Industrial cluster advantages make our material purchase and producing efficiently. Truck and rail logistics enable us to deliver goods to the port as fast as possible;
Quality guarantee --- guarantee 100% full quality inspection before delivery;
Small order accept;
OEM service offered.
|
