When used as a roof sandwich panel, corrugated steel plate is used on the plate surface and flat colored steel plate is used on the lower panel. The core layer is made of polystyrene foam by vacuum technology and high pressure composite.
When used as a roof sandwich panel, corrugated steel plate is used on the plate surface and flat colored steel plate is used on the lower panel. The core layer is made of polystyrene foam by vacuum technology and high pressure composite.
Red 21 :
YRed 20 :
YRed 19 :
YRed 16 :
YRed 15 :
YRed 14 :
YRed 13 :
YRed 12 :
YRed 11 :
YRed 10 :
YRed 09 :
YRed 08 :
YRed 07 :
YRed 06 :
YRed 05 :
YRed 04 :
YRed 03 :
YRed 02 :
YRed 01 :

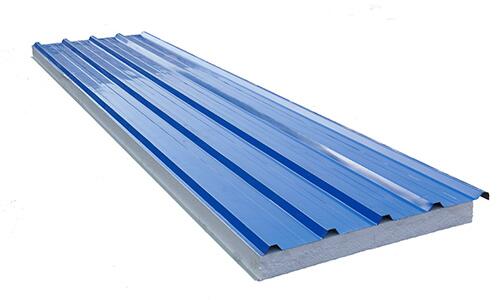

YLightweight EPS sandwich panels for roof system
The EPS sandwich panel has high surface finish and excellent light retention. It has the characteristics of non discoloration, abrasion resistance, anti sunlight and anti-aging. It has strong stability in the face of chemicals such as water, light, salt and acid. It has good thermal insulation, stable thermal conductivity, excellent compressive performance and seismic performance. It is suitable for coastal areas and areas with high incidence of natural disasters.
Highlights of EPS sandwich panels
1.Various colors
EPS sandwich panels of different colors can be selected according to different styles of buildings.
2.Low price
EPS sandwich panel is the cheapest of all sandwich panels.
3.Lightweight
Because of its variety of core materials, the weight of EPS sandwich board is relatively light.
4.Waterproof and thermal insulation
EPS sandwich panel can be very good at waterproof, thermal insulation and fire prevention.
5.Long service life
Because the coating of color steel claddingworks, the service life of EPS sandwich panel can reach more than 20 years.
6.Easy installation
The installation of EPS sandwich panel is very simple, which can save a lot of construction time.
Product Specification
|
Panel effective width |
950-1150mm |
|
Cladding thickness |
0.35--0.75mm |
|
Material of cladding |
PPGL/PPGI sheet&Aluminum sheet |
|
Coating |
PE,SMP,HDP,PVDF |
| Core |
Polystyrene foam |
|
EPS density |
8--20kg/m3 |
|
Panel thickness |
25mm---200mm |
|
Fire resistant level |
A2 |
|
Color |
Customized |
|
Panel length |
20FT,5.95m/40FT,11.95m |
Application
Fabrication of long-span structural roof, container house surface and thermal insulation carriage.
Product display
Packing & Delivery
◆Packing:
Seaworthy packing standards:
PVC on both sides to protect the roof panel ends;
Packed with paper to protect the panel ends;
Put EPS foam on the each space to keep the panel from squeezing each other.
If you have special requirements,please feel free to discuss with us.
This is to make us improved and protect your goods well.
◆Delivery:
Delivery time for regular colors,coating types and thickness:7-10 days;
Delivery time for special colors,coating types and thickness:20-30 days;
Delivery terms:FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
The installation of sandwich panels is relatively simple. Let's take a small house as an example to show you how to install sandwich panels.
If you have any questions about the installation of this product, please contact us and we will send you a detailed installation instruction.We can also tell you how to easily solve the installation problem in the email : syinhuan@chinayinhuan.com
