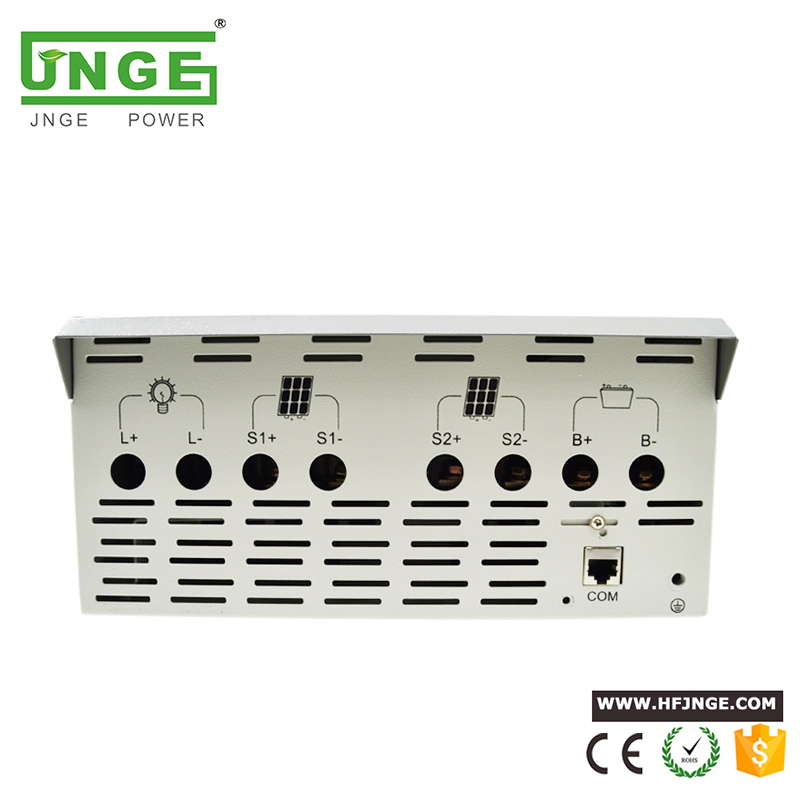

Lastest Design PWM Solar Charge Controller 100A 24V 48V 96V 110V 192V 220V 240V

Latest JND-X series PWM solar charge controller is used in solar off-grid system (independent system), especially suitable for small off-grid solar power generation control system, which automatically adjusts charging and discharging. The battery charging process of the JND-X controller is optimized to extend battery life and improve system performance.

Features and benefits

Brand Name :
JNGE
Application :
Off-grid solar power system
Charge mode :
PWM
Battery Sytem Voltage :
24/48/96/110/192/216/220/240V
PV max. input voltage :
450V
PV max. input current :
100A
PV max. power :
24KW
Display :
LCD
Communication :
WIFI/GPRS/Ethernet for optional

Request A Quote

Product Details

1. Microcomputer chip ensures accurate control

2. Perfect protections: over charge, over-discharge, reverse connection, PV cell panel reverse connection protection

3. Automatic brake and manual brake ensures that the wind turbine and the PV & wind hybrid charging controller operate safely and reliably

4. Voltage for automatic brake (rectified voltage of solar panel) and the recovery time after automatic brake can be adjusted in accordance

with customer’s demands

5. High efficiency, soft braking, independent input circuits for wind turbine and the PV. As a result, if there is something wrong with one circuit,the other circuit can operate smoothly to provide stable power supply for load.

6. Common cathode circuit design makes the system more stable and reliable.

Good performance:

Excellent thermal design and air cooling control.

High efficient PWM charging ways.

Variety of load control method, enhanced the flexibility of the system

Battery charging parameters can be set up.

Any combination of photovoltaic module and storage battery reverse automatic protection function, no damage to any device.

Adopt traditional LCD display and keyboard design, convenient to view the running parameters of the controller.

Provide industrial generic RS232 communication interface, the user can design PC communication software, also can buy the company developed the upper machine communication accessories.

Electrical parameter

Electrical parameter

parameter

rated system voltage

240V

220V

216V

192V

120V

110V

96V

48V

24V

Rated charge current

100A

The maximum allowable voltage

320V

293V

288V

256V

160V

147V

128V

64V

32V

Max input voltage

450V

430V

400V

250V

230V

200V

100V

50V

Min input voltage

300V

275V

270V

240V

150V

138V

120V

60V

30V

Max input power

24000W

22000W

21600W

19200W

12000W

11000W

9600W

4800W

2400W

Static loss

<0.2A

Charge loop drop

≤0.5V

Discharge circuit of pressure drop

≤0.3V

Battery voltage parameters（Temperature：25℃）

controls parameter
Over voltage switching off	320V	294V	288V	256V	160V	147V	128V	64V	32V
limited charge voltage	300V	275V	270V	240V	150V	138V	120V	60V	30V
Over voltage Recover	294V	270V	265V	235V	147V	135V	118V	59V	29.5V
Average voltage	290V	266V	261V	232V	145V	133V	116V	58V	29V
Boost voltage	276V	253V	248V	221V	138V	127V	110V	55.2V	27.6V
Float voltage	250V	229V	225V	200V	125V	115V	100V	50V	25V
undervoltage recovery	216V	198V	194V	173V	108V	99V	87V	43.2V	21.8V
Under voltage disconnect	——
Duration of equilibrium	2 hours

Note: The Battery voltage parameters can be set up on behalf of this keypad and LCD Settings, all parameters can be set through the communications software

Environmental parameter

Environmental parameter	parameter
Work temperature	-35℃- +55℃
Store Temperature	-35℃- +80℃
Temperature Range	10%-90%No condensation
Protection level	IP30
Using altitude	≤3000m
