EU USA standard storage hybrid inverter 50kw 100kw
EU USA standard storage hybrid inverter 50kw 100kw
Warranty :
5-10 yearsLead Time :
20-30daysCertification :
CE, TUV, IEC, UL, VDE,,,,etcItem No :
Three PhaseOutput Voltage :
380-480VType :
Hybrid
Greensun Hybrid Storage Solar Inverter Commercial Use
Large Storage On Off Grid Inverter 50KW 100KW Hybrid Inverters for Energy Systems Project
Large Storage On Off Grid Inverter 50KW 100KW Hybrid Inverters for Energy Systems Project
|
Model |
50KW-EU |
100KW-EU |
50KW-US |
100KW-US |
|
Utility-interactive Mode |
|
|||
|
Battery Voltage |
400V(250~520V) |
400V(250~520V) |
||
|
Battery DC Max Current |
150A |
300A |
150A |
300A |
|
PV Voltage |
520-900V |
520-900V |
520-900V |
520-900V |
|
AC Voltage |
480V 60Hz |
480V 60Hz |
400V 50Hz |
400V 50Hz |
|
AC Current |
60A |
120A |
60A |
120A |
|
Stand-alone Mode |
|
|
||
|
Battery Voltage |
250~520V |
250~520V |
||
|
Battery DC Max Current |
150A |
300A |
150A |
300A |
|
Nominal AC output power |
50KW |
100KW |
50KW |
100KW |
|
AC Max Power |
55KW |
110KW |
55KW |
110KW |
|
Cooling |
Forced air cooling |
Forced air cooling |
||
|
Size (W*H*D) |
800*2160*800mm |
800*2160*800mm |
||
|
Peak efficiency |
95.50% |
95.50% |
95.50% |
95.50% |
|
Compliance |
UL, CSA, IEC, VED, CE |
|||
The hybrid network energy storage inverter has its own charger, which can be directly connected to lead-acid batteries and lithium iron phosphate batteries.
Inverter specifications include single-phase 220-240v, 50hz; three-phase 380-415V 50hz; single-phase 120v / 240v 60hz; and three-phase 480v.

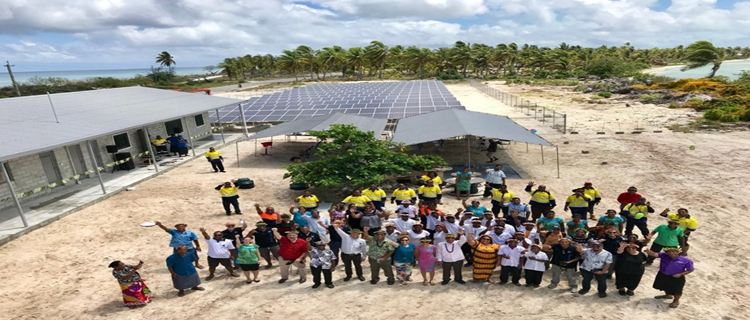

Our Company Projects for Reference
