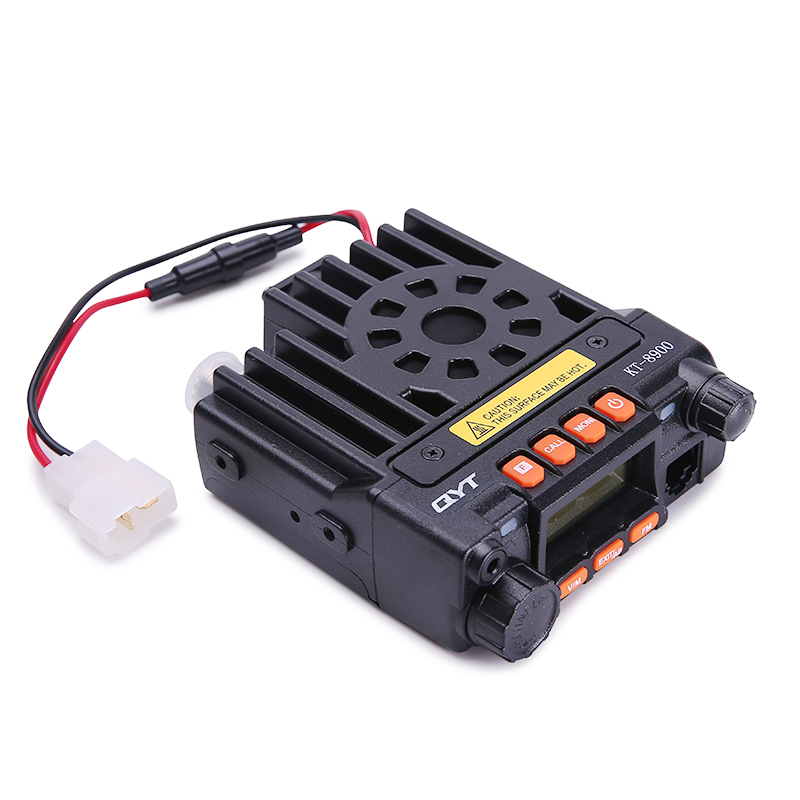

KT-8900 VHF UHF dual band mobile ham radio

QYT KT-8900 is VHF UHF mobile radio which with simultaneous dual band receive. Max 25 Watts RF output on VHF and max 20 watts on UHF.

Analog mobile radio has never been so cost performance as with the KT-8900.

The Mini Size, Simple Design, Easy to Use, Excellent Quality and Full-Range VHF 136-174MHz and UHF 400-480MHz allowing you to enjoy the fun of ham radio with your friends.

Product Details

The Analog Mobile Ham Radio Base Station Kit from QYT is your ticket to experience two way radio fun.

Manufacture by QYT for hams, this kit has everything you need to get you started as an analog amateur radio operator at fabulous cost!

The KT-8900 is a mini dual band VHF and UHF mobile radio. Which is a great training radio for an amateur radio club instructional program. It comes in handy for hams who are new to two way radio and want to build a ham shack on a budget. It's the perfect gift for that ham in your life who wants an analog mobile or base station radio to Get On The Air.

The KT-8900 could be used as commercial mobile radio, public mobile radio even taxi two way radio.

The QYT KT-8900 offers up to 25 watts VHF and 20 watts UHF operation in High output mode. It features 256 Channels, with CTCSS and DCS, channels scan and DTMF technology. It includes Lone worker mode, an emergency alarm and VOX capability. The KT-8900 has an LCD display, programmable function keys on the console, a hand microphone with programmable keys, a built-in LEDs and a DTMF keypad.

The QYT KT-8900 is also repeater capable and compatible with all brand analog walkie talkie and mobile ham radios.

Power cable besides the standard cigarette lighter power supply, we also have the Adapter which use household electricity consumption input voltage of 220-240V AC/DC and an output voltage of 13.8V DC±15%.

USB Programming Cable to connects your QYT radios to your computer and software to programming your radio!



The KT-8900 Kit includes:

  • Radiostation
  • Microphone
  • DC power cable
  • Mobile mounting bracket
  • Mounting hardware
  • User's manual

General Specifications

Frequency Range

VHF: 136-174MHz

UHF:400-480MHz

Channel Capacity

200 channels

Channel Spacing

25KHz, 20KHz, 12.5KHz

Channel Step

 5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 25KHz

Working Voltage

13.8V DC ±15%

Squelch way

CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF

Frequency Stability

±2.5ppm

Operating Temperature

-20℃~+60℃

Dimension(W*H*D)

140(W)*43(H)*172(D)mm

Weight

1030g

Receiver (ETSI EN 300 086 Standardized.Test)

Wide Band

Narrow band

Sensitivity

≤0.25μV

≤0.35μV

Channel chioce

≥70dB

≥60dB

Intermodulation

≥65dB

≥60dB

Spurious Rejection

≥70dB

≥70dB

Audio response

+1~ -3dB(0.3~3KHz)

+1~ -3dB(0.3~2.55KHz)

Signal to noise ratio

≥45dB

≥40dB

Audio distortion

≤5%

Audio output power

≥2W±10%

Transmitter (ETSI EN 300 086 Standardized.Test)

Wide Band

Narrow band

Output power

25W/20W (VHF / UHF)

Modulation Mode

16KΦF3E

11KΦF3E

Channel Power

≥70dB

≥60dB

Signal noise ratio

≥40dB

≥36dB

Parasitic harmonic

≥60dB

≥60dB

Audio response

+1~ -3dB(0.3~3KHz)

+1~ -3dB(0.3~2.25KHz)

Audio distortion

≤5%
