JNTECH fish pond filter system Air aerator 750w 1100w 1500w 2200w

JNTECH set up in 2006, is a high-tech enterprise in Hefei, China, which integrate intelligent power electronics products’ R ;D, manufacture, sales and service, focus on manufacture of solar pump inverter, solar off-grid inverter relative solar products. All our products have passed CE and TUV certifications. Jntech solar pump system and off grid system are used in more than 50 countries in the world, especially in UNDP, UNHCR, UNICEF,OCHA, ICRC, NGO projects in Asia, Middle East, and African countires.

Request A Quote

Product Details

System features

Solar power supply all day, zero-cost operation throughout the year, green, energy-saving,environmental friendly；
Automatic intelligent switch according to the intensity of light, adjust the aerobic power, no need for manualmanagement throughout the year;
Compared to traditional utility grid aerationequipment, no electric shock, safety;
The core components have a service life up to 15 years to prevent environmental pollution and ecological damage;
The metal parts of the system are made of aluminum alloy and stainless steel,which are durable and rust-proof;
Energy storage and non-storage systems are available according to customer requirements.

Type	Model	Motor Power	Voltage	Load Water Surface	Aeration Capacity
Type	Model	W	V/50Hz		kg/h
Paddlewheel Aerator	JNFB-SC-750	750W	220	500-1000	≥1.1
	JNFD-SC-1100	1100W	220	1200-5000	≥1.3
	JNFB-SC-1500	1500W	220	2000-6500	≥1.5
	JNFB-SC-2200	2200W	220	2500-8000	≥2.0
Impeller Aerator	JNFB-YL-750	750W	220	800-1500	≥1.4
	JNFB-YL-1100	1100W	220	1500-2000	≥1.6
	JNFB-YL-1500	1500W	220	2500-5000	≥2.2
	JNFB-YL-2200	2200W	220	3500-7000	≥4.5
Jet Aerator	JNFD-PY-280	280W	220	200-400	≥0.35
	JNFD-PY-490	490W	220	300-600	≥0.61
	JNFD-PY-750	750W	220	500-1000	≥1.17
	JNFD-PY-1100	1100W	220	2500-5000	≥1.3
	JNFD-PY-1500	1500W	220	3500-5000	≥1.95
Fountain Aerator	JNFD-PQ-250	250W	220	200-400	≥0.3
	JNFD-PQ-550	550W	220	300-600	≥0.7
	JNFD-PQ-750	750W	220	500-1000	≥1.2
	JNFD-PQ-1100	1100W	220	600-1200	≥1.4
	JNFD-PQ-1500	1500W	220	1000-2000	≥1.8
	JNFD-PQ-2200	2200W	220	1200-2400	≥2.0
Air Jet Aerator	JNFB-SL-1500	1500W	220	/	≥0.82
Air Jet Aerator	JNFB-SL-2200	2200W	220	/	≥1.2

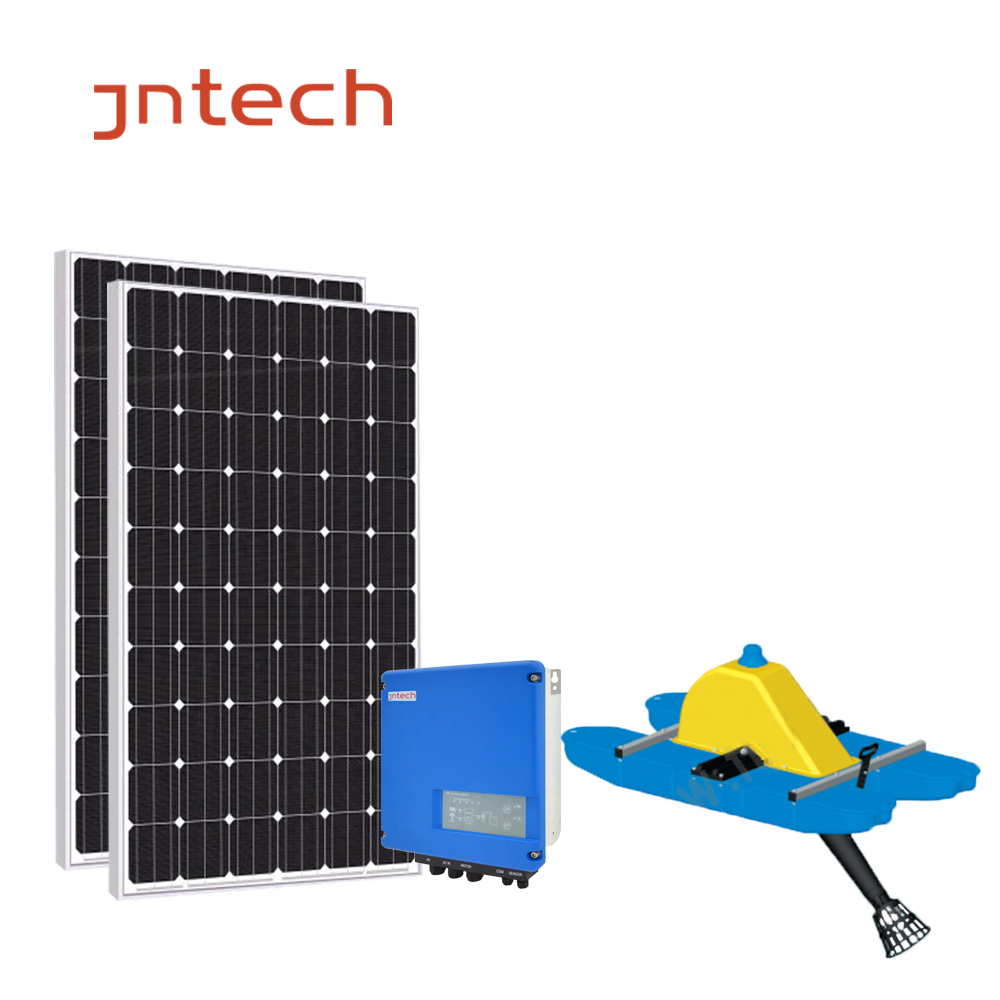

Solar aeration system solution

1、PV type

Advantages

Pure photovoltaic energy work, no operating costs;
Modular design, fully automatic operation, low maintenance costs;
Away from the utility grid, no risk of electric shock,safe and high efficient, long life;
The installation is simple and convenient, the system is maintenance-free;
Perfect solution for aquaculture or environmental protection projects in off-grid or remote areas.

2、Solar and grid dual input type

Applicable conditions

High electricity price, no electricity or power shortage areas;
The system is driving by photovoltaic directly, low cost system, butwhen there is not light, switch to grid supply for aeration.

Advantages

Solar and grid dual input mode to realize 24H operation of thesystem;
Adopt modular design, automatic operation, low maintenancecost;
Solar and utility grid work online at the same time, to maximize the utilization of photovoltaic energy and reduce the operating cost significantly;
High efficiency and long service life; Simple installation, convenient, maintenance-free system;
Perfect solution for all kinds of breeding or environmental protection projects.
