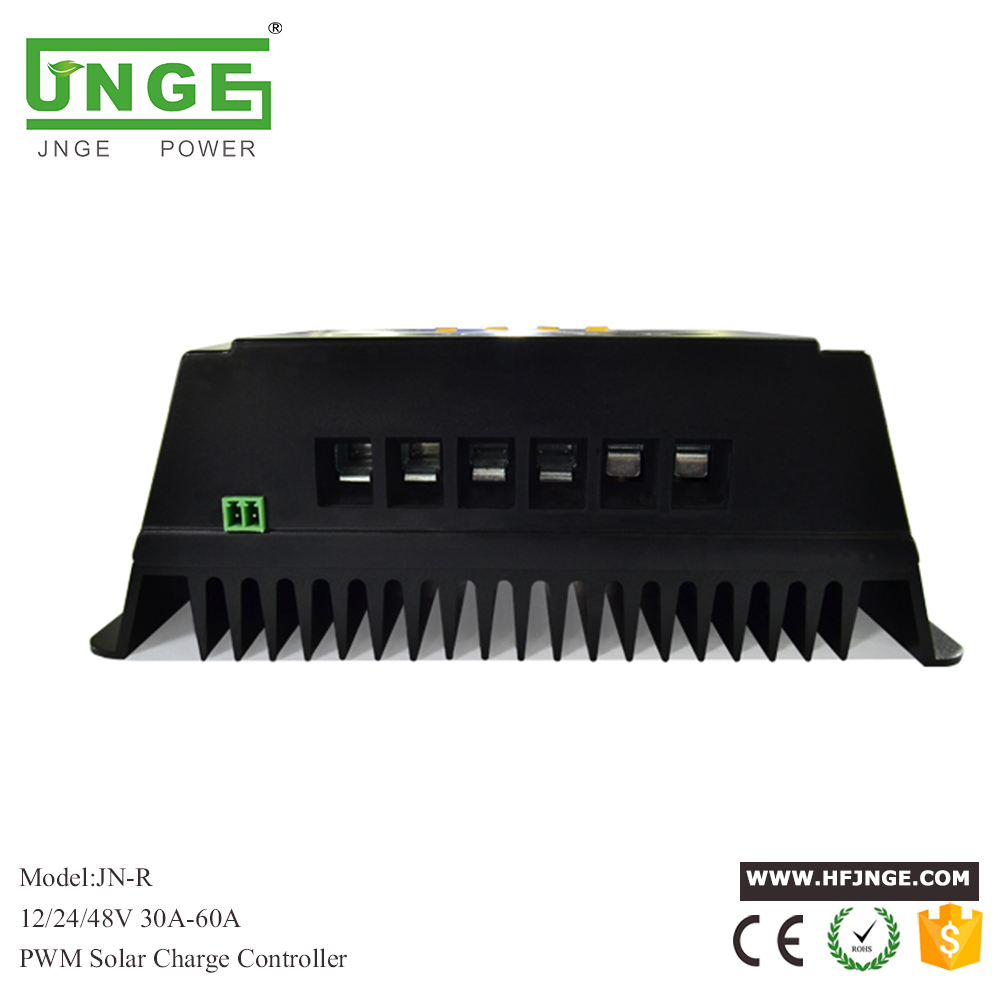

JN-R Series 30amp 40amp 50amp 60amp 12v 24v 48v auto solar charge controller LCD displaying

Solar Controller transform the solar energy into electricity power through the solar panel and stores,is widely used in mobile communication base stations,microwave stations,but also provide power supply for the pastoral areas,border,island units,and mobile occasions and so on.
Features and benefits
  • PV max. power :

    2880w
  • PV max. input current :

    60a
  • PV max. input voltage :

    88v
  • Battery Sytem Voltage :

    12/24V auto or 12/24/48V auto
  • Charge mode :

    PWM
  • Application :

    solar power system
  • Brand Name :

    JNGE
  • Display :

    LCD
  • Communication :

    WIFI/ETHERNET/GPRS for optional
Product Details

JN-R Series 30a 40a 50a 60a 12v 24v 48v auto solar charge controller LCD displaying


Features:

1. Common cathode circuit design makes the system more stable and reliable.

2. Support RS232 communication for PC monitor, more intelligent.(for option)

3. Excellent EMC design.

4. LCD display with USB charger

5. Strong data storage, storage time can be up to 10 years.

6. Multi-protection and temperature control

7. Japan imported MOSFET with better performance and more durable.


Electrical parameter

item

JN-K(12V/24V/48V)

JN-R(12V/24V/48V)

Rated voltage

12V/24Vauto,48V

Battery max voltage

15V/30V/60V

Solar panel max voltage

22V/44V/88V

Rated charging current

10A

20A

30A

40A

50A

60A

Charging line voltage drop

≤0.7V

Discharging line voltage drop

≤0.2V

Static loss

0.2W

communication

RS485 Interface

USB output

0.5A/5V

Over-temperature protection

Below 75℃ full current75℃-90℃ half current,     above 90℃ off charge

Working environment parameters

LCD display temperature

-20℃-75℃

Working environment temperature

-20℃-50℃

Storage temperature

-30℃-70℃

Protection level

IP30

Mechanical parameters

Wire terminal²)

2.5

6

10

10

16

16

Size L*W*Hmm)

153*94*46.5

207.5*129*69.5

Net weightkg

0.35

0.38

0.40

1.30

1.35

1.40

Battery voltage parameters

Battery voltage parameters are based on 25℃/12V system24V system X248V systemX4

  Battery parameters

Battery type

Colloid lead acid battery

Sealed lead acid battery

Lithium iron phosphate battery

Manganate

lithium battery

User

definition

Over-charge disconnect voltage (V)

15.5

15.5

13.2

14.4

13-16

Overvoltage recovery voltage (V)

14.8

15.0

12.6

14.0

13-16

Equilibrium charge voltage (V)

14.6

14.6

12.4

13.8

13-15

Enhance charge voltage(V)

14.2

14.4

12.2

13.6

13-15

Floating charge voltage(V)

13.6

13.8

12.0

13.2

12-14

Under-voltage recovery voltage(V)

12.6

12.8

11.5

12.6

11-13

Under-voltage shut down voltage(V)

10.8

10.8

9.6

10.5

9-11

Equilibrium charge duration(min)

——

120

120

120

60-180

Enhance charge duration(min)

120

120

120

120

60-180
