JN-K Series 10a 20a 30a PWM solar controller

Solar panels may make power at very high voltage and current. If all that is fed directly to the battery then it may get overcharged or blast (in extreme cases).A solar charge controller prevents this from happening. It is is placed in between the solar panels and the battery bank to regulate the charging current and voltage of the batteries through solar. It also prevents the reverse flow of current from batteries to the solar panels during night-time.Basically, without a charge controller it is not possible to safely use solar energy for charging batteries.

Features and benefits

Brand Name :
JNGE
Application :
Off grid solar panles system
Charge mode :
PWM
Battery Sytem Voltage :
12/24v auto or 12/24/48v auto
PV max. input current :
30amp
PV max. power :
1440w
Display :
LCD
Communication :
WIFI/GPRS/ETHERNET for optional

Request A Quote

Product Details

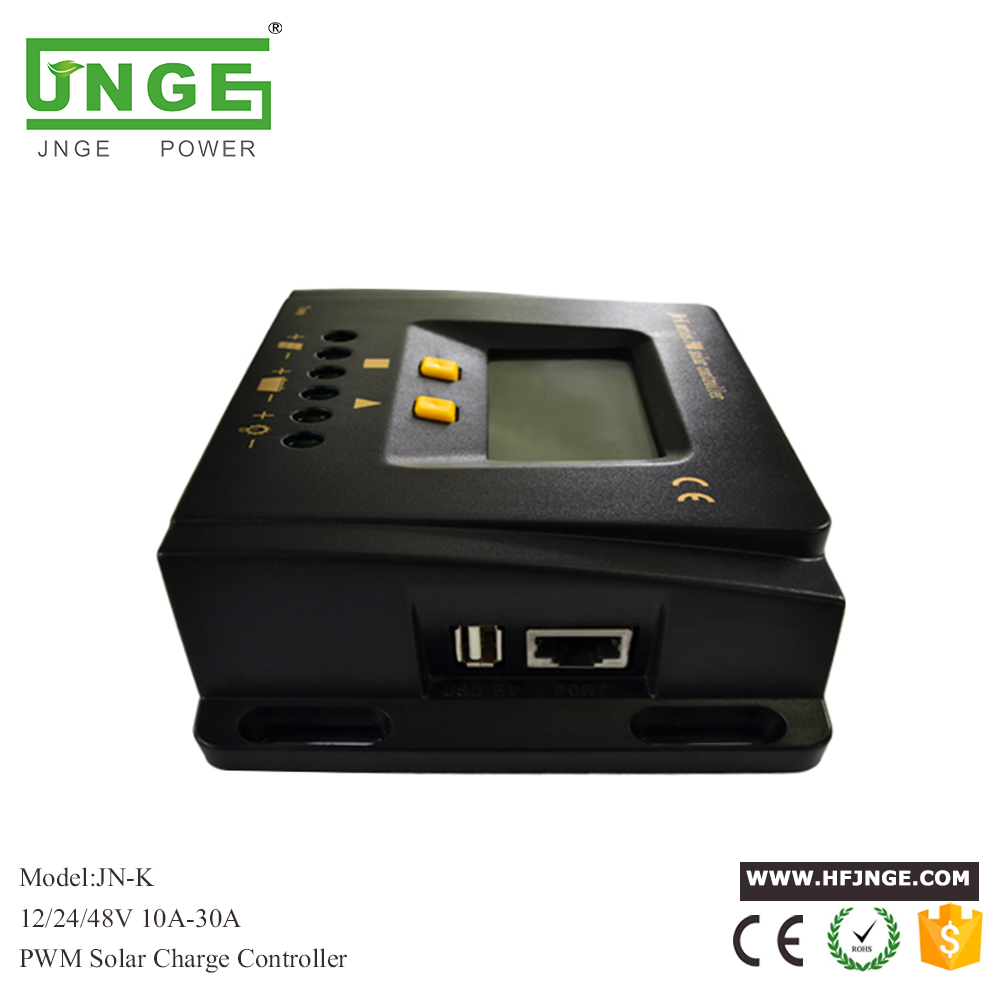

JN-K DC 12V 24V 48V automatic recognition smart pwm solar charge controller 10A 20A 30A

The controller is suitable for the automatic control of charging and discharging process in the off-grid solar system (independent system). The battery charging and discharging process of the controller is optimized, which can prolong the life of the battery and improve the performance of the system. The comprehensive function of self testing and electronic protection function can avoid the installation errors and system failures which can cause the controller damage.

Use CPU processor superior speed performance

Common cathode circuit design makes the system more stable and reliable.

The high precision A/D sampling to ensure the accuracy of sampling

Excellent EMC design

12V/24V automatic identification system voltage or 48V battery voltage

Imported MOSFET as power switch, low loss, high reliability

LCD display and keypad interface, complete menu display and operation

Use of RS-232 communication, the communication speed and communication protocol compatibility are very well

The controller with over temperature, over discharge, overload, short circuit protection function

The photovoltaic array and reverse battery protection function

The 5V DC output, can supply power for the mobile phone or digital products

Product Parameters:

Electrical parameter
Item			JN-K(12V/24V/48V)								JN-R(12V/24V/48V)
Rated voltage			12V/24Vauto，48V
Battery max voltage			15V/30V/60V
Solar panel max voltage			22V/44V/88V
Rated charging current			10A		20A			30A			40A				50A		60A
Charging line voltage drop			≤0.7V
Discharging line voltage drop			≤0.2V
Static loss			0.2W
communication			RS485Interface
USB output			0.5A/5V
Over-temperature protection			Below 75℃ full current，75℃-90℃ half current， above 90℃ off charge
Working environment parameters
LCD display temperature			-20℃-75℃
Working environment temperature			-20℃-50℃
Storage temperature			-30℃-70℃
Protection level			IP30
Mechanical parameters
Wire terminal（㎜²)			2.5		6			10		10				16			16
Size LWH（mm)			1539446.5							207.512969.5
Net weight（kg）			0.35	0.38			0.40			1.30			1.35				1.40
Battery voltage parameters （Battery voltage parameters are based on 25℃/12V system，24V system X2，48V systemX4）
Battery parameters Battery type			Colloid lead acid battery			Sealed lead acid battery			Lithium iron phosphate battery			Manganate lithium battery				User definition
Over-charge disconnect voltage (V)			15.5			15.5			13.2			14.4				13-16
Overvoltage recovery voltage (V)			14.8			15.0			12.6			14.0				13-16
Equilibrium charge voltage (V)			14.6			14.6			12.4			13.8				13-15
Enhance charge voltage(V)			14.2			14.4			12.2			13.6				13-15
Floating charge voltage(V)			13.6			13.8			12.0			13.2				12-14
Under-voltage recovery voltage(V)			12.6			12.8			11.5			12.6				11-13
Under-voltage shut down voltage(V)			10.8			10.8			9.6			10.5				9-11
Equilibrium charge duration(min)			——			120			120			120				60-180
Enhance charge duration(min)			120			120			120			120				60-180
Light control voltage parameters
Light control turn on voltage		Max	10V
		Min	6V
		Default	8V
Light control turn off voltage		Max	8V
		Min	2V
		Default	4V
Battery temperature compensation parameters
Temperature compensation parameters	Max		0mV∕℃∕2V
	Min		-8mV∕℃∕2V
	Default		-4mV ∕ ℃ ∕2V （based on 25℃）
Equilibrium, enhance, floating, enhance recovery voltage, low voltage disconnect recovery voltage, under voltage alarm recovery voltage, under voltage alarm voltage, low voltage disconnect voltage‘s temperature compensation parameters are the same
