JN-HI Solar Hybrid Inverter With MPPT Solar Charge Controller All In One

* Advanced multiphase synchronous rectifier and MPPT technology, high efficiency.
* Ultra wide input voltage range
* IGBT module is used to synchronize rectifier technology to improve equipment stability.
* RS485 communication for optional
* Full protections on overcharge, overdischarge, overtemperature, overload, reverse connection.
* Compatible with all battery types, also can be customized.

Features and benefits

Output wave form :
pure sine wave
Rated power :
300W-5000W
Display :
LCD
Output Voltage :
100/110/120/220/240v optional
Battery Voltage :
12/24/48/96v optional
Application :
Solar power system
Model Number :
JN-HI
Brand Name :
JNGE
Built-in solar charge controller :
30/40/50/70A
Communication :
WIFI/GPRS for optional

Request A Quote

Product Details

JN-HV series is high frequency hybrid power inverter with built-in MPPT solar charging controller all in one machine, it adopts IGBT for array anti inversion, and multi tube parallel IGBT forms a buck circuit for voltage and current conversion control; The output fuse is used for output overcurrent and short circuit protection, and the high voltage DC relay is used for battery reverse connection and other protection.

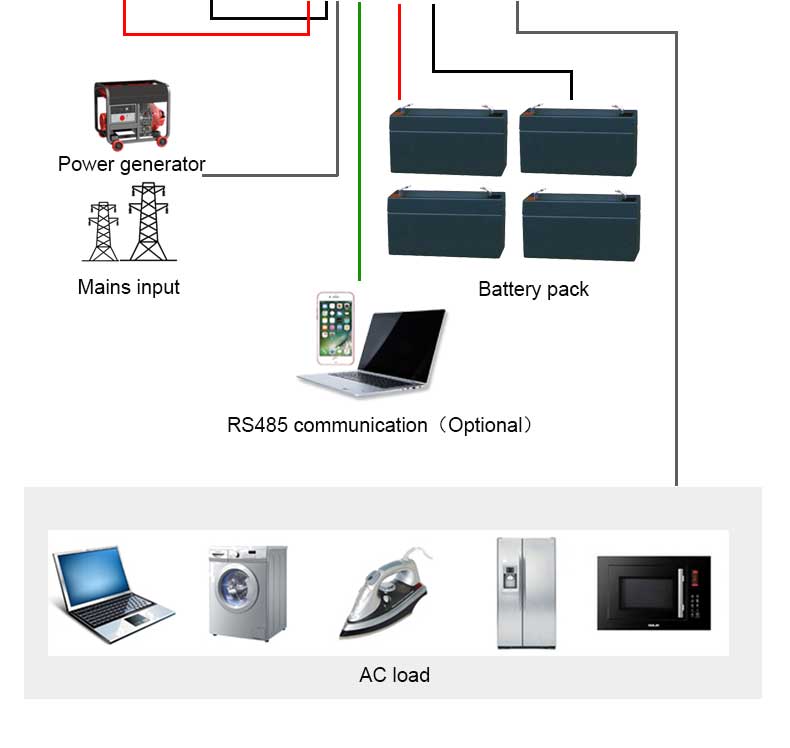

JN-HV series products adopt MPPT control algorithm, the efficiency is not less than 99%. MPPT algorithm adopts two-stage control, and the first stage adopts CVT control to quickly track and set the command voltage and improve the tracking speed; In the second stage, MPPT control algorithm is adopted to increase variable step size control, improve tracking speed, prevent MPPT search deviation, quickly track the maximum power point of photovoltaic array in any environment, and obtain the maximum energy of solar panel in real time; The controller can be connected to the upper computer through RS485, support the expansion of WiFi module and GPRS module, realize app cloud monitoring, and can be applied to communication base station, user system, street lamp system, field monitoring and other fields.
