This latest JN-FI series solar inverter with built in charge controller using high quality imported components,
advanced power conversion circuit, the maximum efficiency can reach more than 99.8%.
Photovoltaic charging has three-stage charging mode: MPPT- boost charging-floating charging.
With overcharge, overdischarge, overtemperature, overload and other comprehensive protection functions.
RS485 communication, can provide communication protocol, facilitate customer unified integrated management and secondary development.

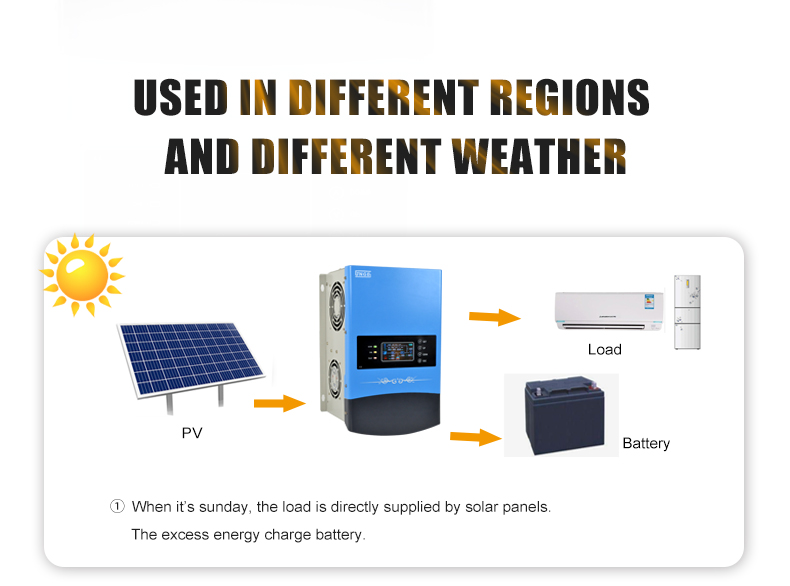

Inverter and bypass can achieve seamless switching, can achieve the switching process of electrical equipment continuous electricity.
Inverter adopts built-in pure copper power frequency isolation transformer, instant load capacity is strong, load impact resistance is strong.
|
Hybrid Inverter and MPPT controller all-in-one parameters
|
|
Parameter Name
|
JN-FI parameter table (and adjustable range)
|
|
Model
|
JN-FI1000/S50-*
|
JN-FI1500/S50-*
|
JN-FI2000/S50-*
|
JN-FI3000/S70-*
|
JN-FI4000/S100-*
|
JN-FI5000/S100-*
|
JN-FI6000/S100-*
|
|
Battery voltage
|
12V
|
24V
|
48V
|
24V
|
48V
|
24V
|
48V
|
24V
|
48V
|
24V
|
48V
|
96V
|
24V
|
48V
|
96V
|
48V
|
96V
|
|
AC mains input
|
Maximum Charge current
（The charging current is adjustable
）
|
50A
|
25A
|
13A
|
38A
|
19A
|
50A
|
25A
|
75A
|
38A
|
100A
|
50A
|
25A
|
125A
|
63A
|
31A
|
75A
|
38A
|
|
Electricity input voltage range
|
±10%~±15%
|
|
Power input frequency
|
45Hz~65 Hz
|
|
Inverter output
|
Rated power
|
1000W
|
1500W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
|
Wave
|
Pure sine wave
|
|
Output voltage range
|
110VAC/115VAC/120VAC/220VAC/230VAC/240VAC ±5% (customizable)
|
|
Output frequency
|
50HZ/60HZ
|
|
Maximum Inverter Efficiency
|
＞92%
|
|
Solar Charge Controller (Optional)
|
Max. charge current
|
50A
|
50A
|
50A
|
70A
|
100A
|
100A
|
100A
|
|
PV max. input power
|
600W
|
1200W
|
2400W
|
1200W
|
2400W
|
1200W
|
2400W
|
1680W
|
3360W
|
2400W
|
4800W
|
9600W
|
2400W
|
4800W
|
9600W
|
4800W
|
9600W
|
|
PV Open circuit voltage range
|
20V~100 V (12 V systems)
|
|
40V~145 V (24 V system)
|
|
80V~145 V (48 V system)
|
|
160V~240 V (96 V system)
|
|
MPPT efficiency
|
﹥99.5%
|
|
Charging mode
|
Three stages: constant current (fast charge), constant voltage, floating charge
|
|
Battery type
|
Lead acid batteries, GEL batteries, Lithium iron phosphate, Lithium ternary, Customized.
|
|
Display mode
|
LCD Color Screen
|
|
Mode of communication
|
RS485、PC monitoring, WIFI/GPRS module and Ethernet extension app for cloud monitoring
|
|
Working environment
|
-25℃～+55℃
|
|
Storage temperature
|
-30℃～+70℃
|
|
Use altitude
|
Above 3000 m above sea level
|
|
Equipment protection grade
|
IP21
|
|
Humidity
|
10%~90%
|
|
KG Net
|
|
|
|
|
Product size
|
385*267*179 mm
|
467*337*199 mm
|
554*372*229 mm
|
