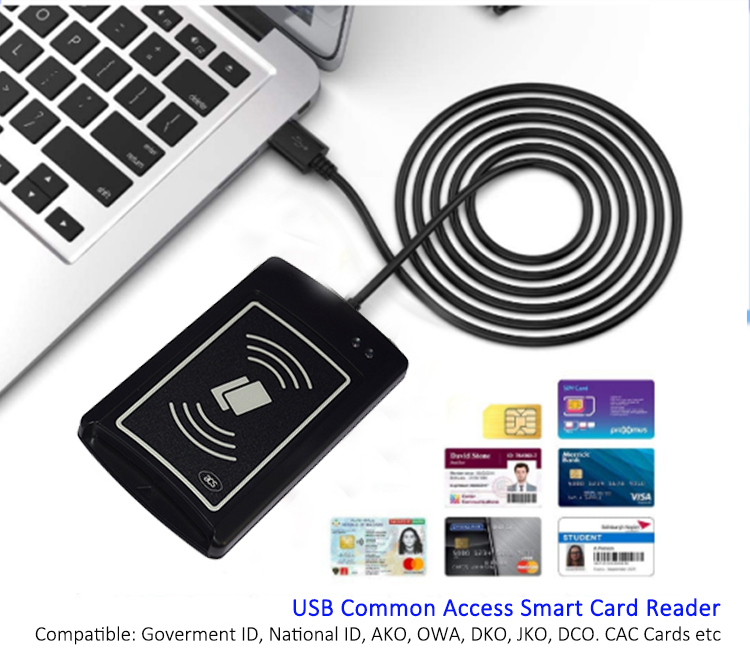

ISO14443 Type A/B Contact And Contactless Smart Card Reader ACR1281U-C1

ACR1281U-C1 can be used for topping up contactless cards via automated fare collection in public transport, and also provides the perfect complement to the "All-in-one Card" concept that combines many kinds of smart card applications in just a single card.

Feature

• Compliance with PC/SC for contact, contactless and SAM card interfaces
• Compliance with CCID
• Supports major contactless smart cards that conform to ISO14443 Type A and B
• Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
• Read/write speed of up to 848 kbps for contactless interface
• Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)
• Supports major contact smart cards that conform to ISO7816
• Supports memory cards such as SLE5528, SLE5542, etc.
• Read/write speed of up to 344 kbps for contact interface
• Durable landing type smart card connector
• Built-in SAM card slot
• intelligent support for hybrid and combine cards
• Firmware Upgradable
• User-controllable monotone buzzer and LEDs
• USB Full Speed (12 Mbps)

Application

• e-Government  and e-Healthcare
• e-Banking  and e-Payment
• Transportation
• Network Security
• Access Control
• Loyalty Program

Specification
