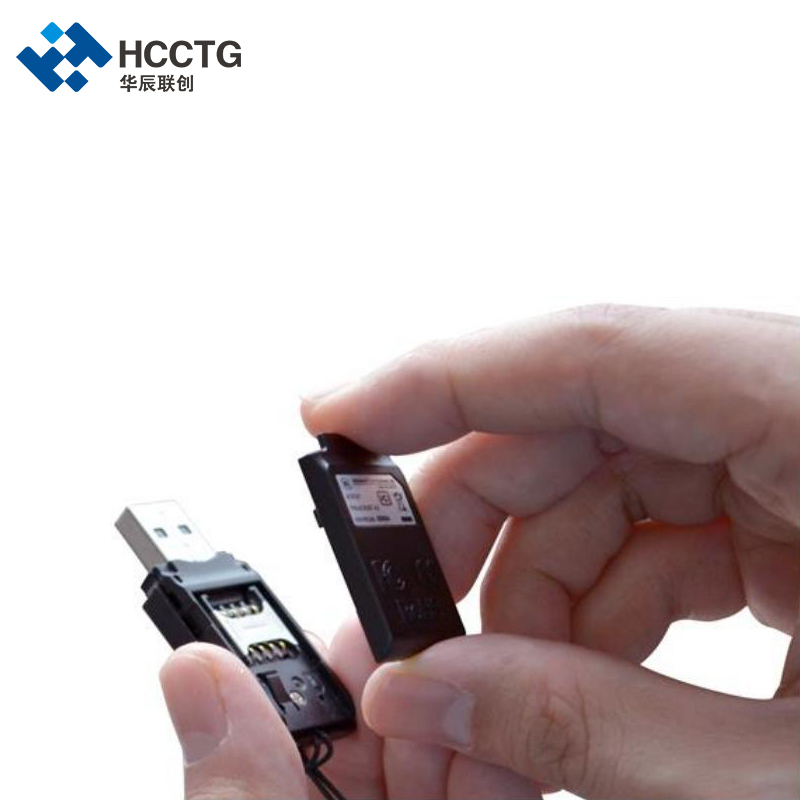

ISO7816 Contact SIM-sized Smart Card Reader ACR39T-A5

The ACR39T-A5 has PC/SC and CCID compliance, besides, it's also compatible with operating systems such as Windows®, Linux®, Mac OS®, and Solaris.

Product Details

PC/SC USB Full Speed CE ROHS Contact Smart Card Reader ACR39T-A5

The ACR39T-A5 supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and works well with most memory cards and microprocessor cards with the T=0 and T=1 protocol. It also features a USB Full Speed interface (with USB Type C connector) and a smart card read/write speed of up to 600 Kbps. This makes it ideal for a broad range of solutions, such as Physical and Logical Access Control, Digital Signature, and Online Banking.


Features


  • USB 2.0 Full Speed Interface
  • USB Type C Connector
  • Plug and Play – CCID support brings utmost mobility
  • Includes protective USB cap
  • Smart Card Reader:
  • Contact Interface:
  • Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) SIM-sized cards
  • Supports microprocessor cards with T=0 and T=1 protocol
  • Supports memory cards
  • Supports PPS (Protocol and Parameters Selection)
  • Features Short Circuit Protection
  • Application Programming Interface:
  • Supports PC/SC
  • Supports CT-API (through wrapper on top of PC/SC)
  • Supports Android™ 3.1 and later1



Specification

USB Host Interface

Protocol

USB CCID

Connector Type

Standard Type C

Power Source

From USB port

Speed

USB 2.0 Full Speed (12 Mbps)

Supply Voltage

5 V

Contact Smart Card Interface

Number of Slot

1 SIM-sized Card Slot

Standard

ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V)

Protocol

T=0; T=1; Memory Card Support

Supply Current

Max. 50 mA

Smart Card Read/Write Speed

9.6 Kbps – 600 Kbps

Short Circuit Protection

(+5) V/GND on all pins

Clock Frequency

4.80 MHz

Card Connector

Contact

Card Insertion Cycles

Min. 10,000 (Min. 30,000 upon request)

LED

Green

PC-linked Mode

PC/SC,CT-API (through wrapper on top of PC/SC)

Operating Conditions

Temperature

0°C to 60°C

Humidity

Max. 90% (non-condensing)

MTBF

500,000 hrs

Dimensions

49.5 mm (L) × 21.5 mm (W) × 9.0 mm (H)

Weight

7g

Color

Black

Certifications/Compliance

EN 62368/IEC 62368, CE, FCC, RoHS, REACH, UKCA, VCCI, WEEE, ISO 7816, USB 2.0 Full Speed, PC/SC,

CCID, Microsoft® WHQL

Device Driver Operating System Support

Windows® 7, Windows® 8, Windows® 8.1, Windows® 10,

Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016

Linux®, Mac OS®, Solaris, Android™ 3.1 and later
