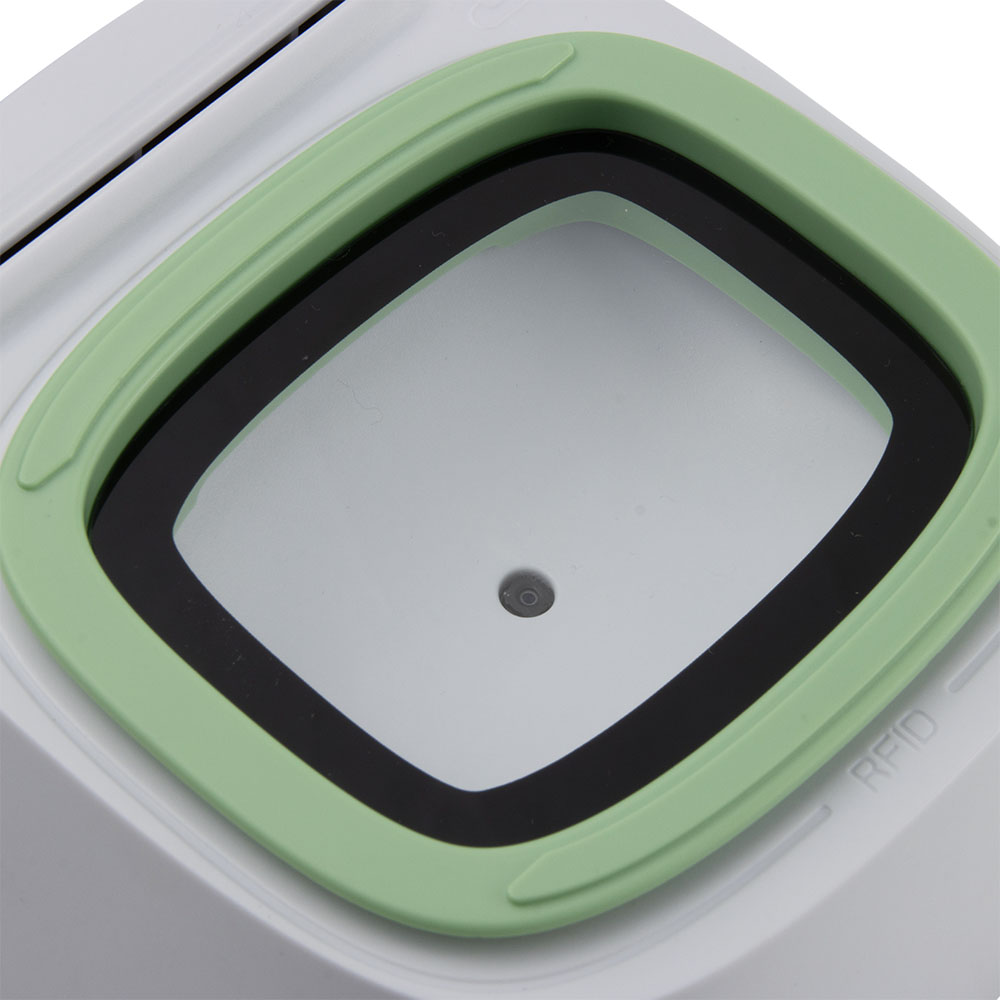

ISO14443 A/B Contactless IC Card Reader QR Code Scanning HCC3300
HCC3300 supports ISO7816/ISO14443 A/B, EMV2000 and PBOC2.0 specifications two SAM card socket can be extended. Realize the connection with PC and related equipment through USB interface. Besides, it can be widely used in industries such as finance, social security, industrial and commercial taxation, transportation, securities, post and telecommunications. It also supports contactless mobile payment applications.
Specification
|
Main Technical Feature |
|
|
Power Supply |
USB Bus / DC: +5V±10% 300mA. |
|
Consumption |
Current / operating Typical 250mA Max |
|
150mA Standby |
|
|
Outline |
120* 55* 64.9(L*W*H)mm |
|
Temperature |
Operation: -10ºC to 60ºC; Storage: -30ºC to 70ºC |
|
Humidity |
Operation: 10 to 85%; Storage: 10 to 90%, Non-Condensing. |
|
QR Code Scanning Feature |
|
|
Image sensor |
640H * 480V 30fps |
|
Field of view angle |
Horizontal: 65° Diagonal: 81° Vertical: 61° |
|
Deflection angle |
Horizontal: ±50° Vertical: ±50°Whirling: 360° |
|
Motion tolerance |
3m/s |
|
Code system support |
1D: Code128 / Code32 / Code 39 / Code 93 / EAN 13 / EAN 8 / EAN / UCC128 / ISBN13 / ISMN / ISSN / Logmars / NVE18 / PZN7 / PZN8 / service-id / SSCC 18 / UPC 12 / UPCA / DPD / UPU S10 / Swedish Postal Shipment ItemID |
|
2D: PDF417 / QR Code / Data Matrix / Royal Mail Cmdm Mailmark / PPN / Swiss QR Code |
|
|
Read Rate |
50ms |
|
Recognition Accuracy |
5mil |
|
Contrast |
≥25% |
|
Reading mode |
Trigger / Sensing / Continuous |
|
Reading material |
Screen / Paper / Metal / PVC film |
|
Ambient light |
0~100,000LUX |
|
Interface |
Mode 1:RS232:9600 Baud, None Parity, 8 bits |
|
Mode 2:USB HID Keyboard (default). |
|
|
Mode 3:USB Virtual Serial COM - 9600 Baud, None Parity, 8 bits |
|
|
IC Technical Feature |
|
|
Interface |
Mode 1:RS232:9600 Baud, None Parity, 8 bits |
|
Mode 2:CCID - PC/SC on USB (default). |
|
|
Mode 3:USB Virtual Serial COM - 9600 Baud, None Parity, 8 bits |
|
|
Contact IC |
|
|
Standard |
ISO7816 / EMV2000 Level 1 / PBOC 3.0 |
|
Card Voltage |
5V / 3.3V / 1.8V.selecting the nominal card supply voltage according to ISO / IEC7816-3. |
|
Protocol |
T=0 / T=1 |
|
IC Holder
|
8 contacts, short circuit protection, pressure: 0.4n ± 0.1n. Holder life: > 200,000 times |
|
Communication rate |
9600bps~38400bps, support PPS |
|
Protection |
Short-circuit protection |
|
Contactless IC |
|
|
Standard |
ISO14443 A&B / EMV2000 Level 1 / PBOC 3.0 |
|
Support Card |
SmartCPU Card / Mifare one 1K / 4K |
|
Protocol |
T = CL |
|
Frequency |
13.56MHz |
|
Effective range |
0~30mm |
|
Communication rate |
106K / 212K / 424K bps, support PPS |
