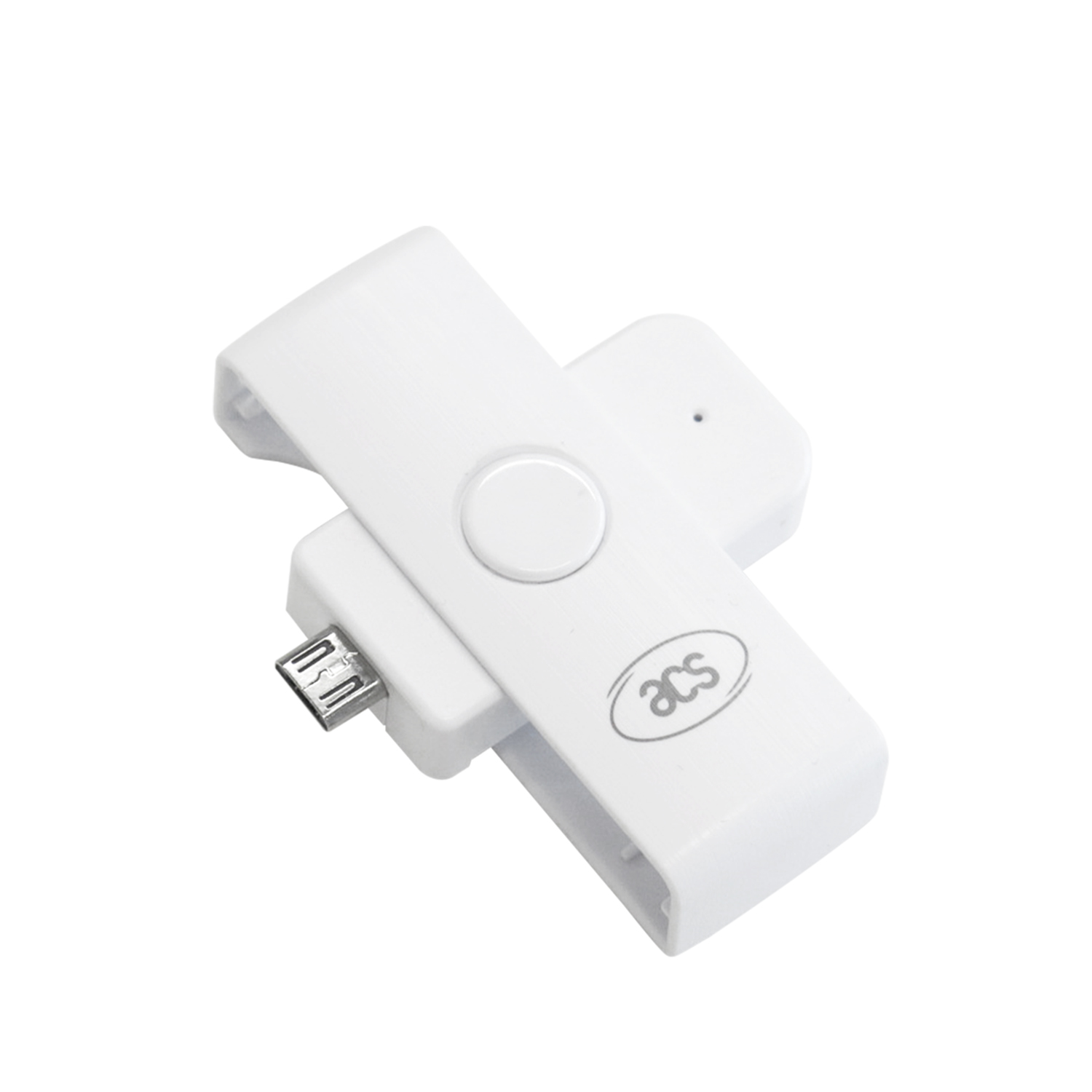

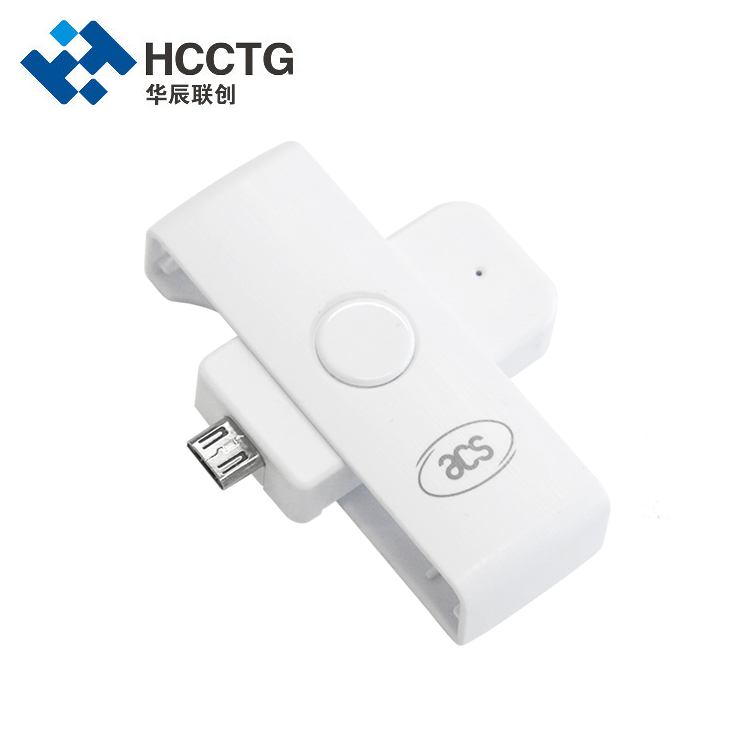

Supports PC/SC Contact IC Chip Smart Card Reader ACR39U-ND
ACR39U-ND (Micro-USB) supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and microprocessor cards with T=0 and T=1 protocol. In addition, it supports a wide variety of memory cards in the market including the Department of Defense Common Access Card (CAC), and SIPRNET Card. This makes it ideal for a broad range of solutions such as PIV Application, Physical and Logical Access Control, Digital Signature, and Online Banking.
It connects with computers through its USB Full Speed interface and has a smart card read/write speed of 600 Kbps. This small device proves to be a powerful smart card reader as it houses the ACR39 core, which has been proven to support highly demanding smart card applications.
Feature
2. Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
Supports Android™ 3.1 and later
Application
Specification
|
Dimensions |
58.0 mm (L) x 20 mm (W) x 13.9 mm (H) |
|
Weight |
9.7g |
|
Color |
White |
|
Protocol |
USB CCID |
|
Connector Type |
Micro B |
|
Power Source |
From USB port |
|
Speed |
USB Full Speed (12 Mbps) |
|
Supply Voltage |
5 V |
|
Number of Slot |
1 Full-sized Card Slot |
|
Standard |
ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
|
Protocol |
T=0; T=1; Memory Card Support |
|
Supply Current |
Max. 50mA |
|
Smart Card Read/Write Speed |
9.6 Kbps – 600 Kbps |
|
Short Circuit Protection |
(+5) V/GND on all pins |
|
Clock Frequency |
4.8 MHz |
|
Card Connector Type |
Contact |
|
Card Insertion Cycles |
Min. 100,000 |
|
LED |
Green |
|
PC-linked Mode |
PC/SC CT-API (through wrapper on top of PC/SC) |
|
Temperature |
0°C – 60°C |
|
Humidity |
Max. 90% (non-condensing) |
|
MTBF |
500,000 hrs |
|
Certifications/Compliance
|
EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL |
|
Device Driver Operating System Support
|
Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 Linux®, Mac OS®, Solaris, Android™ 3.1 and above |
