Inheriting the same design to the A-Type connector used in USB 2.0 application, but USB 3.0 Type A processes additional pins that are not in the USB 2.0 A Type. USB 3.0 connectors are often in blue color to help distinguish them from previous generations.

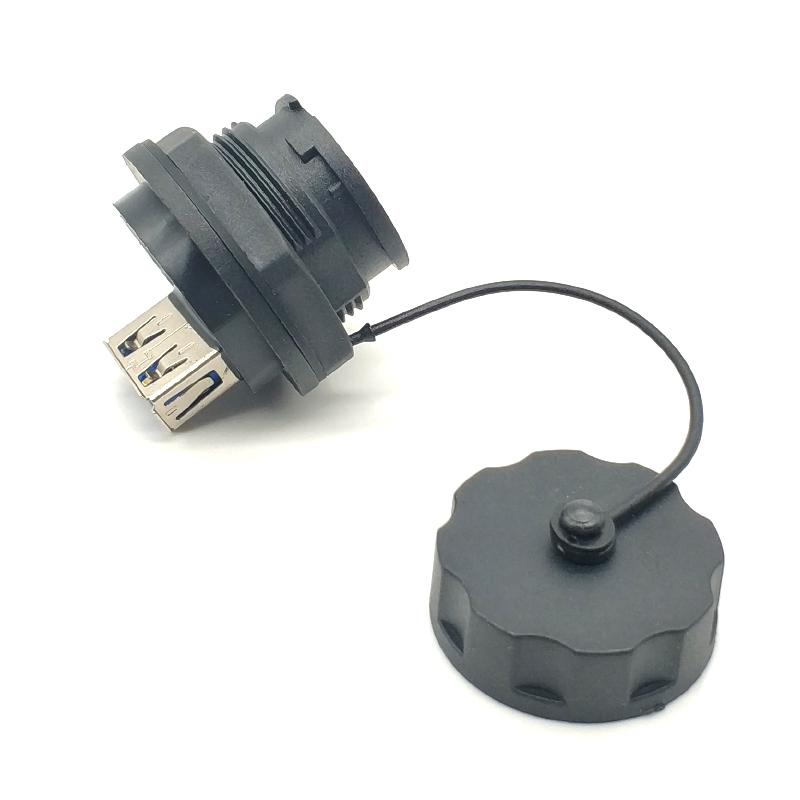

Ip67 usb round connector 3.0 wireless
Feature of Usb 3.0 connector
Specification of USB round connector
＜30mΩ
Product name:
USB 3.0 connector
Contact resistance:
Withstand voltage:
1000V/AC
Insulation resistance:
＞500MΩ
Durability:
＞500 mating cycles
Cable OD.:
φ5.5mm~φ7mm
Rated current:
1.5A
Receptacle housing:
PBT, Black
Overmolding:
PVC, Black
Contact:
Copper Alloy
Coupling ring:
PA66, Black
Operating temperature:
-40℃ ~ 80℃
Performance:
USB 2.0 or 3.0
Industrial seal rating:
IP67
Usb 3.0 connecto can be customized accessories
|
USB 3.0 waterproof connector can choose ordinary male or rubber-coated male, the length of the cable can be customized. |
|
Application of USB 3.0 waterproof round connector
USB 3.0 waterproof connector Because of its convenient connection and convenient use, it is widely used in data transmission of computers, external devices and other devices
*For more information, please contact us by email or through any contact information on the webpage.
