Long-term cooperation with many well-known vehicle manufacturers and system integrator
■ With more than ten years of technology accumulation and rich experience, we have thousands of successful industry applications; we can share our experience with partners;
■ We provide the customized product and customized design to achieve the best match between motor, motor controller and vehicle control system;
■ Enjoy high trust from customers and industry reputation.
Shipping Port :
ShenzhenPlace of Origin :
ChinaAvailability :
OEM/ODM, Minmum Order RequestPackage :
Standard Export Package Carton/WoodTransportation :
Express · Sea freight · Land freight · Air freightDelivery Time :
14-30 working days for customized EV motor controllerWarranty :
24 MonthsCustomized :
YESTerm of payment :
T/T, L/C, D/PSample freight payer :
BuyerSample provide :
YESCertification :
CE, EAC, ISO9001, OHSAS18001, TS16949, SGSV6-H-4D5.5G & V6-H-4D5.5G ;

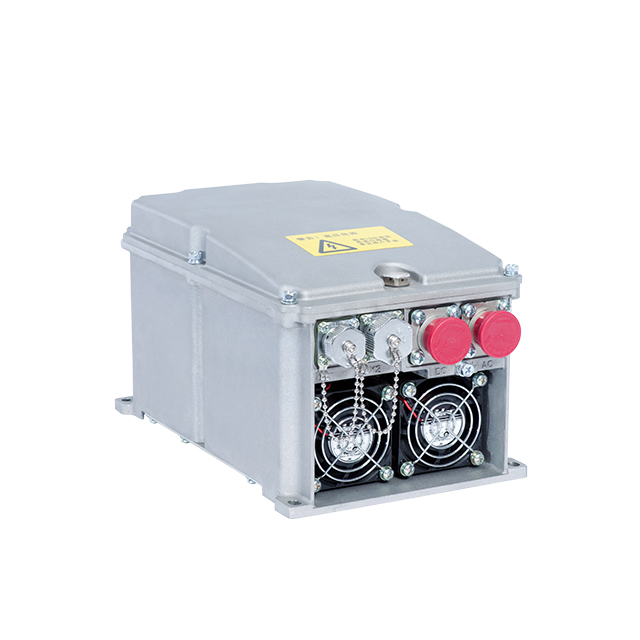

Three-in-one Auxiliary Controller (Oil pump + Gas pump + DC/DC)
Technical Parameter
|
Adaptable motor type |
Permanent magnet synchronous motor、Three phase asynchronous motor |
|
Applicable vehicle type |
Medium Bus、Large Bus、Logistics Vehicle |
|
Product type |
V6-H-4D5.5G & V6-H-4D5.5G |
|
Rated input voltage |
DC 540V |
|
Rated power |
5.5kW & 5.5kW & 3kW |
|
Input voltage range |
DC 350V~750V |
|
Rated output current |
13A & 13A , DC 27.5V |
|
Maximum output current |
19.5A & 19.5A , DC 130A |
|
Output frequency range |
0～300Hz |
|
Protection level |
IP67 |
|
Cooling type |
Water cooling |
|
Outline dimension |
333*308*159（mm） |
|
Weight |
13.5kg |
Outline dimension
Application
 |
 |
 |
 |
 |
 |
 |
 |
 |
Shenzhen V&T Technologies Co.,Ltd. is committed to R&D and manufacturing of integrated EV auxiliary motor controller. Please browse online now for more parameter information.
