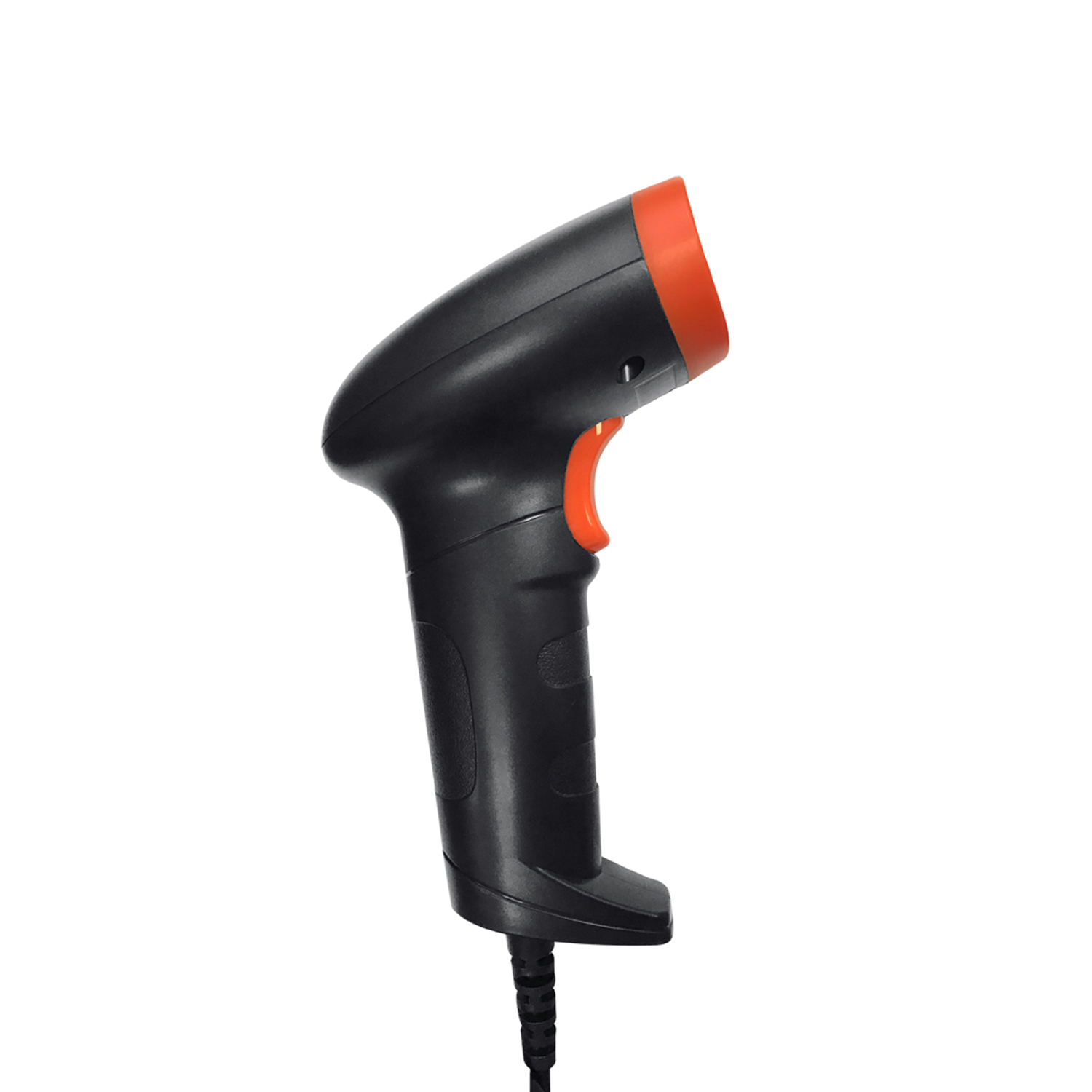

Handheld 2D Barcode Scanning Gun QR Code Payment Scanner HS-6605
The HS-6605 has a very high scan rate for linear barcodes and for paper barcodes and barcodes on the display, the HS-6605 can also be easily scanned for a variety of scanning applications.
The HS-6605 is built to meet the most demanding scanning requirements, providing consistent scanning performance in a completely dark environment, as well as over an extended temperature range.
Features
Specification
|
Performance parameter |
|
|
Image Sensor |
CMOS |
|
Pixel |
1280*960 CMOS |
|
Lighting |
White LED |
|
Reading code system |
2D:PDF417,QR Code,Data Matrix |
|
1D:Code 128,EAN/UPC,Interleaved 2 of 5,Matrix 2 of 5,Industrial 25,Code 39,Codabar,Code 93,Code 32Code 11 ,MSI-Plessey,GS1-Databar |
|
|
Reading accuracy |
≥5mil |
|
Bar code sensitivity
|
Tilt:±65°@ 0°Roll and 0° Skew |
|
Rotate:±360°@ 0°Pitch and 0° Skew |
|
|
Deflection:±60°@ 0°Roll and 0° Pitch |
|
|
Data interface |
USB HID-KBW,USB,RS-232 |
|
Field of view |
28° horizontal and 21.5° vertical |
|
Typical reading depth of field |
Code 39 5mil 6-8cm 15mil 4-15cm |
|
Physical parameter |
|
|
Dimensions（L*W*H） |
158*67*113mm |
|
Weight |
Weight 190g (including USB cable) |
|
Notification |
Beep, LED indicator |
|
Working current |
210mA |
|
Stand-by current |
70mA |
|
Environmental |
|
|
Operating Temperature |
-20℃~+60℃ (-4°F~140°F) |
|
Storage temperature |
-40℃~+70℃ (-40°F~176°F) |
|
Humidity |
5%~95%（non-condensing） |
|
Accessories list |
Data cable USB cable (2m) USB HID-KBW interface, USB virtual serial port |
