Rapidly add 1D and 2D barcode data to documents, spreadsheets, and databases.
Rapidly add 1D and 2D barcode data to documents, spreadsheets, and databases.

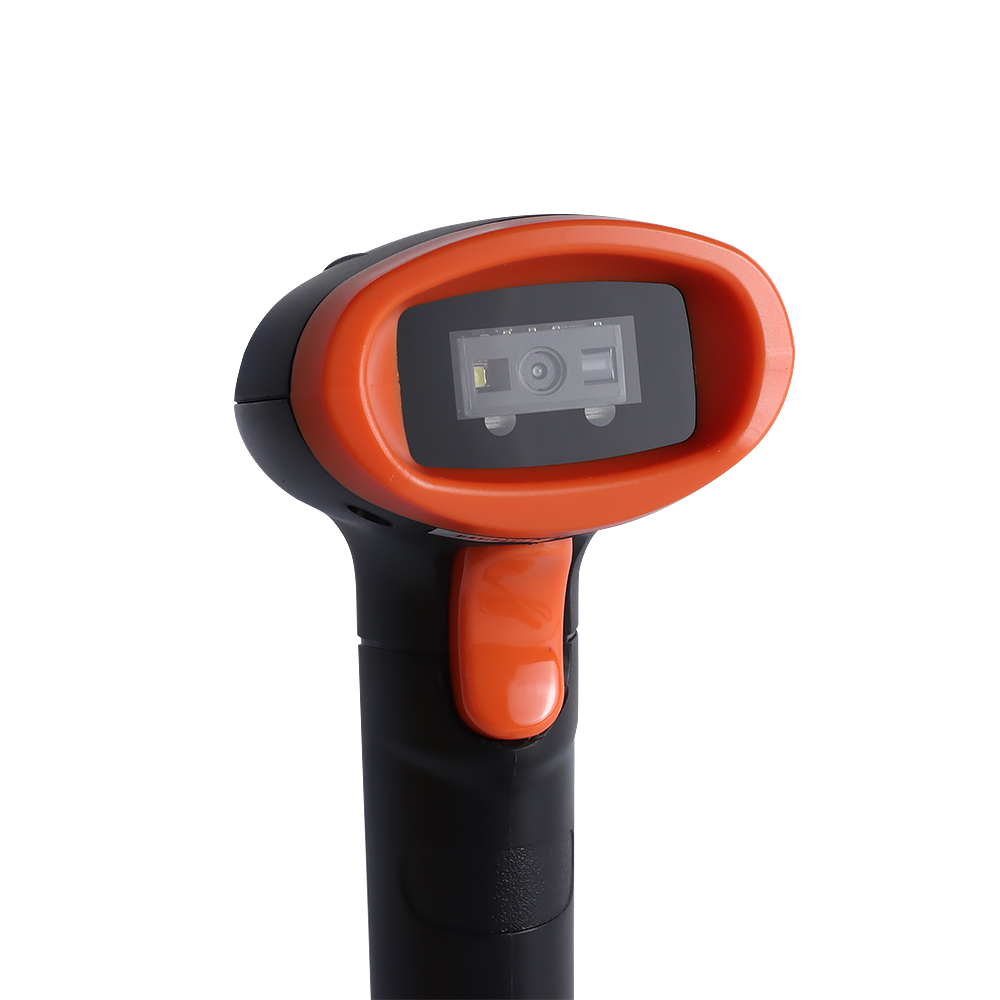

Industrial Handheld 2D Barcode Scanner
The HS-6603 is also a high-performance scanner that can easily read all kinds of 1D barcodes and read 2D qr barcodes at high speed.The HS-6603 has a very high scan rate for linear barcodes. For paper barcodes and barcodes on the display, the HS-6603 can also be easily scanned for a variety of scanning applications.
No matter if you run a small business, a sales shop, or work in a warehouse, each scanner can organize and catalog your barcode depending on your needs.
Specification
|
Performance parameter |
||
|
Image Sensor |
CMOS |
|
|
Pixel |
648*488 CMOS |
|
|
illumination |
White light led |
|
|
Reading code system |
2D |
PDF417,QR Code,Data Matrix |
|
1D |
Code128,EAN-8,EAN-13,UPC-E,UPC-A,Interleaved 2 of 5, Matrix 2 of 5, Industrial 25,Code 39, Codabar,Code 93, Code 11,MSI-Plessey,GS1-DataBar |
|
|
Reading accuracy |
≥5mil |
|
|
Bar code sensitivity |
tilt |
±65°@ 0°Roll and 0° Skew |
|
Rotate |
±360°@ 0°Pitch and 0° Skew |
|
|
deflection |
±60°@ 0°Roll and 0° Pitch |
|
|
Data interface |
Usb hid-kbw interface, usb virtual serial port, usb hid-pos interface, rs-232 interface |
|
|
Field of view |
28° horizontal and 21.5° vertical |
|
|
Typical reading depth of field |
Code 39 |
|
|
5mil 6-8cm |
||
|
15mil 4-15cm |
||
|
Physical parameter |
||
|
Size (length * width * height) |
158*67*113.2mm (Figure ) |
|
|
weight |
190g (including USB cable) |
|
|
Prompt mode |
Buzzer, led indicator |
|
|
Current |
Working current |
210mA |
|
stand-by current |
70mA |
|
|
Environmental parameters |
||
|
Operating temperature |
-20℃~+50℃ (-4°F~122°F) |
|
|
storage temperature |
-40℃~+70℃ (-40°F~176°F) |
|
|
Relative humidity |
5%~95% (no condensation) |
|
|
Accessories list |
||
|
Data line |
USB cable (2m) |
Accessories list |
