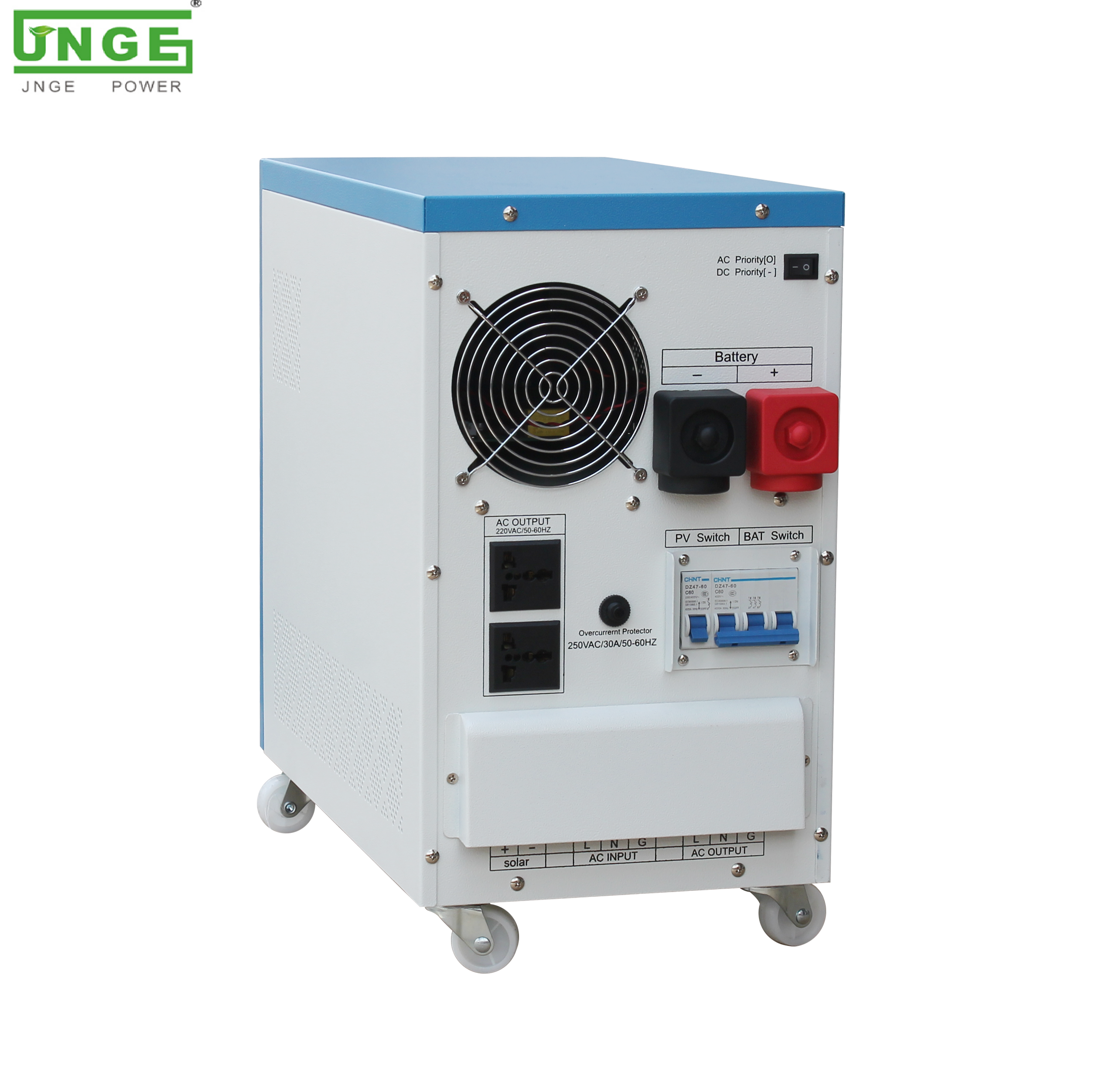

Hybrid inverter with built-in MPPT solar controller all on one

CM series hybrid inverter with built-in MPPT solar controller all on one has the advantages of high efficiency, low power consumption and strong carrying capacity and more intelligent, User can set charging mode according to the usage environment, and the AC complementary output, the mode of AC or DC, it has the advantages of stable quality, strong load resistance, anti-adverse environment and long service life; it is the main product of our company’s power frequency pure sine wave inverter.

Features and benefits

Built-in solar charge controller :
MPPT charge
Output wave form :
Pue sine wave inverter
Rated power :
1-8KW
Output Voltage :
100/110/120/220/240v
Display :
LCD
Battery Voltage :
12/24/48/96/120/192/220/240v
Application :
Off-grid solar system
Brand Name :
JNGE

Request A Quote

Product Details

Product features
*Double intelligence in one machine: DC mode or AC mode;
*The sine wave isolation output, it can power continuously for a long time;
*Using a ring-frequency transformer, the lowest in the industry of no-load losses;
*Broken code LCD screen: graphical interfaces, give the user better use of the feeling
*External battery, user can match the corresponding battery capacity and quantity according to their own needs;
*Strong carrying capacity, except driving all kinds of resistance load, it can also drive all kinds of inductive load;
*The design of the power frequency circuit, the system stability is good, the failure rate is low, the service life is long;
*Perfect protection function: low voltage protection, high voltage protection, high temperature protection, short circuit protection, overload protection and buzzer alarm;

*The product through CE、ROHS certification.

Product Function
1、Charging function
There are 2 modes as shown bellow：
1）PV charge the battery ,utility will not : when PV and utility are both connected to the machine , only the PV will charge the battery when there is sunlight ；
2）Both PV and utility will charge the battery : when PV and utility are both connected to the machine , AC(utility) will charge the battery . In the mean while , PV will also charge the battery if there is sunlight；
2、Utility as complementary power function
1）AC first ,DC standby UPS mode ；

When both utility and battery are connected to the machine , utility will supply power to the loads prior to the battery .When utility is cut off , the battery；

Step are as follows ：
Step 1：When utility power is acailable , it will output directly after voltage being stabilized and charge batteries at the same time ；
Step 2：When utility power is cut off suddenly , the inverter will convent DC power to AC power automatically to ensure uninterrupted power supply within 3ms ；
Step 3：When utility power becones available again , it will automatically transter to utility supplying power to loads and charge batteries at the same time.
2）DC first,AC standby UPS mode ；
When both utility and battery are connected to the inverter , battery will supply power to the loads prior to utility . when battery capacity is not enough , utility will continue to supply power automatically ；
Step 1：When battery has enough power , it will supply power to the loass directly ；
Step 2：When battery does not have enough power , it will automatically transter to utility supplying power to the loads ；
Step 3：After the battery is fully charged (e.g.by solar or wind charge controller ),it will then automatically ranster to battery supplying power to the loads.

Model

CM0530

CM1030

CM1530

CM2030

CM3030

4060

5060

6060

7060

801200

Rated power

500W

1000W

1500W

2000W

3000W

4000W

5000W

6000 W

7000W

8000W

Battery

Rated voltage

12V

24V

48V

24V

48V

24V

48V

24V

48V

Charging current

Max10A

Max15A

AC input

Voltage range

220VAC±20%

Frequency

50Hz±5Hz/60Hz±5Hz

AC output

Voltage range

220VAC±3%

Frequency

50/60Hz±1%(Inverter mode)

Output waveform

Pure sine wave

Conversion time

﹤10ms（Typical load）

Efficiency

＞85%（80% Resistive load）

Over load

110-120%/30s

Protection

Battery overvoltage and low voltage protection, overload protection, short circuit protection, over temperature protection

Display

LED+LCD

Cooling method

Forced air cooling

Operating temperature

0-40℃

Chassis size（mm）

410*176*240mm

490*230*335mm

510*252*460mm

Package Size（mm）

460*220*328mm

550*270*415mm

600*343*545mm

N.W.（Kg）

7.5

8.5

25.5

G.W.（Kg）

8.5

9.5
