Heat Average :
≤±1 ℃Time for Sterilization :
0~60 minTemperature Adjust Range :
105℃~134℃Working Temperature :
134℃Working Pressure :
0.22MPa

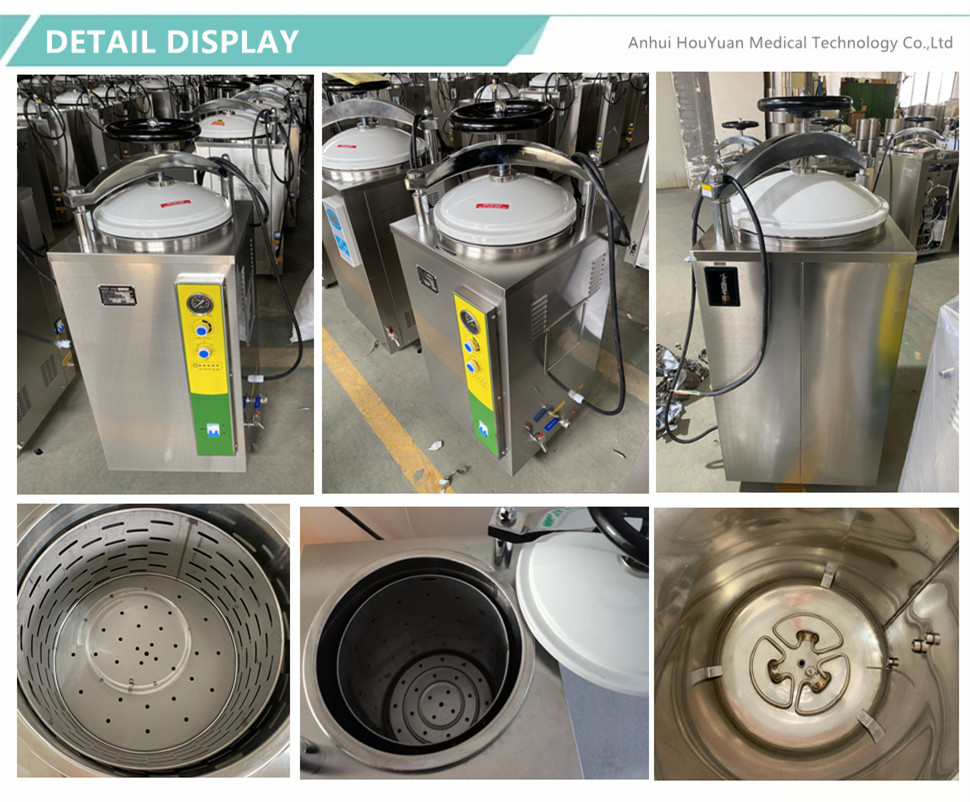

HouYuan Vertical Type Hospital Autoclave Sterilizer
♦ Fully stainless steel structure.
♦ Hand wheel type of quick-open door structure.
♦ Pressure safety lock.
♦ Indicator light indicates working state.
♦ Over temperature and over pressure auto-protection.
♦ Double scale indication pressure gauge.
♦ Self inflating type seal.
♦ Safe protection of water lacking.
♦ Automatically shut off with beep reminding after sterilization.
♦ Easy to operate,safe and reliable.
♦ With standard stainless steel sterilizing baskets.
♦ Power supply can be customized as per request for free.
|
Model |
HY-S35J |
HY-S50J |
HY-S75J |
HY-S100J |
|
Chamber |
35L
Φ318×450mm
|
50L
Φ340×550mm
|
75L
Φ400×600mm
|
100L
Φ440×650mm
|
|
Working Pressure |
0.22Mpa |
|||
|
Working Temperature |
134℃ |
|||
|
Max. Working Pressure |
0.23Mpa |
|||
|
Heat Average |
≤±1℃ |
|||
|
Timer |
0~60min |
|||
|
Temperature Scope |
105~134℃ |
|||
|
Power |
AC220V 50Hz or customized |
|||
|
2.5KW |
3KW |
4.5KW |
4.5KW |
|
|
Sterilizing Basket |
1pc |
1pc |
2pcs |
2pcs |
|
Overall Dimension(mm) |
450×450×1010 |
510×470×1130 |
560×560×1120 |
540×560×1250 |
|
Transport Dimension(mm) |
570×550×1150 |
590×590×1280 |
650×630×1280 |
680×630×1370 |
|
G.W./N.W. |
72/56 KG |
68/50 KG |
90/70 KG |
110/85 KG |
This electric autoclave is a vertical type high pressure sterilization machine, widely be used for hospitals, laboratories, with capacity from 35L to 100L which can meet kinds of customers' usage.
Located in Anhui Province, China--BENOVOR(HouYuan Medical) is a professional manufacturer of hospital sterilizers, laboratory sterilizer and other medical autoclave sterilizer.
In the past 15 years, BENOVOR(HouYuan Medical) has accumulated a large number of technologies and patents, gathered many professional experts, and has become one of the largest manufacturer in medical industrial.
BENOVOR(HouYuan Medical) has different types of products with different volumes. With more than 15 years' manufacturing experience, we have exported our products to all of the world.
Customer's satisfaction is our goal.
All the products from BENOVOR(HouYuan Medical) has been strictly certificated with CE, ISO 13485 and ISO 9001. Besides, we can support OEM and ODM to meet each customer's requirements.
Committed to the development and production of medical equipment, we strive to do better.
Q: How Can I Choose The Suitable One?
A: Please Tell Us Your Detailed Requirements By Mail or Online, We Will Recommend The Suitable One As Per Your Requests.
Q: Is Your Price Competitive?
A: We Make Sure To Offer You The Best Quality With Competitive Price.
Q: How Can I Pay?
A: We Accept Many Payment Methods, Such As T/T, Western Union, L/C.
Q: When Can I Receive It After Paying?
A: Normal Models Can Be Delivered Within 10-20 Days. Please Contact Us to Check Transport Time to Your Address.
Q: How To Deliver?
A: We Can Send By Express, By Sea And By Air.
Q: Will It Be Broken During Transport?
A: Please Do Not Worry, We Do Standard Export Package.
Q: What Should I Do If I Do Not Know How To Use?
A: Please Do Not Worry, User Manual Will Be Sent Together With Machine And You Can Also Contact Us With More Technical Support.
Q: What Should I Do If Some Parts Are Broken?
A: Please Do Not Worry,We Have 12 Months Warranty For Main Machine And Wearing Parts, We Can Provide Them For Free Within Warranty.
A: All Our Products Have Lifelong After-sale Service With Free Technical Support.
