This digital autoclave is a vertical autoclave sterilizer, with 6 volumes are optional to meet the needs of different customers, autoclave 75L, autoclave 100L, and 150L vertical mushroom autoclave are the best-selling models in laboratories, hospitals and mushroom farms.
Power :
Single-phase/ AC110-220V±10%/ 50-60HzTime for Drying :
OptionalHeat Average :
≤±1 ℃Time for Sterilization :
0~99 min or 0~99 hour59minTemperature Adjust Range :
105℃~134℃Working Temperature :
134℃Working Pressure :
0.22MPa

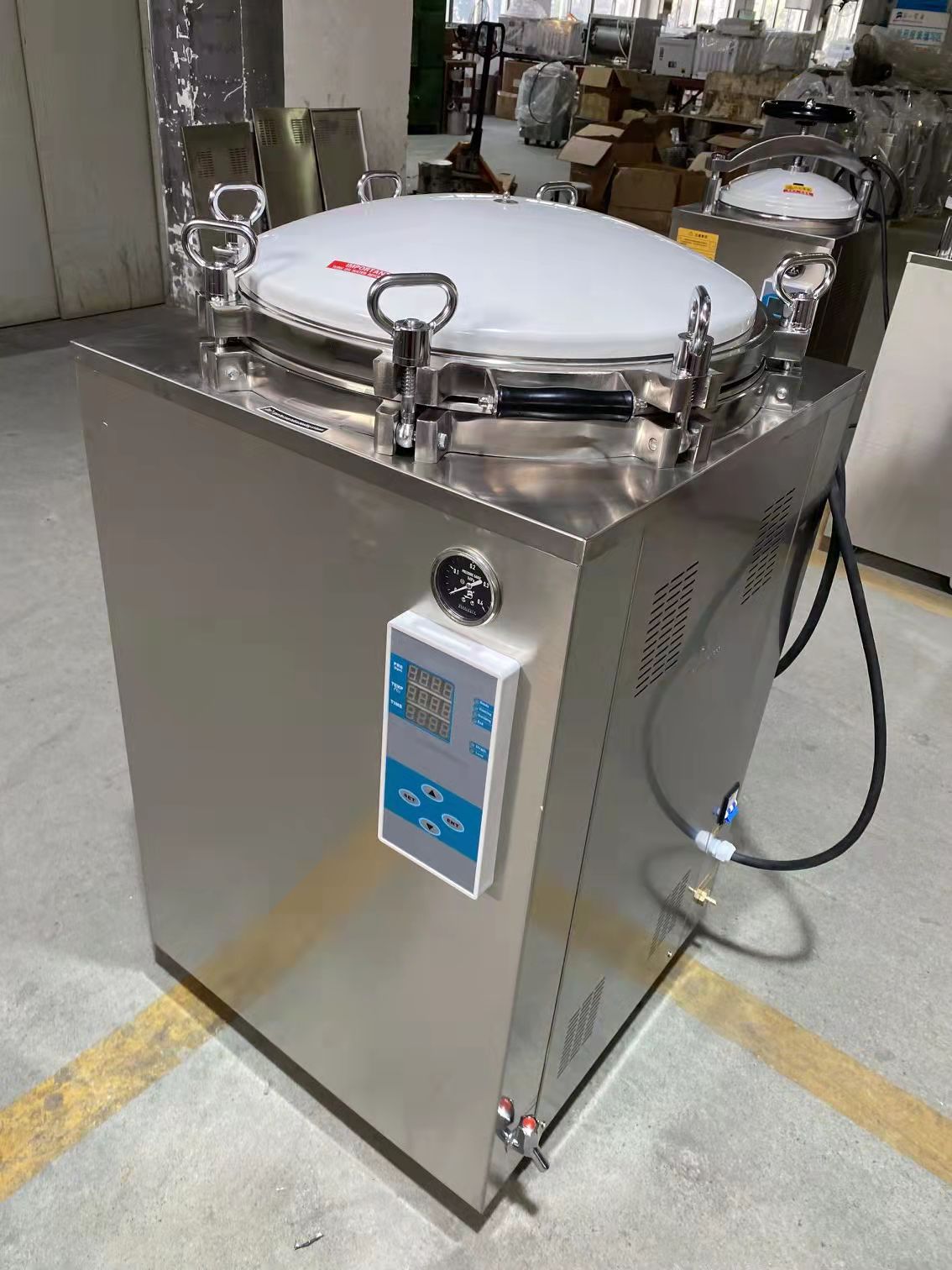

HouYuan Vertical Autoclave Sterilizer Digital Autoclave
♦ Capacity: 35 Liter, 50 Liter, 75 Liter, 100 Liter, 120 Liter, 150 Liter.
♦ Door safety lock system.
♦ Digital display of working status, touch type key.
♦ Auto discharge the cool air, and steam discharging automatically after sterilizing.
♦ Over temperature and over pressure auto-protection.
♦ Safe protection of water lacking.
♦ Self-inflating type seal.
♦ Automatically shut off with beep reminding after sterilization.
♦ With two stainless steel sterilizing baskets.
♦ Optional: Drying system, Printer Function.
|
Model |
HY-F35D |
HY-F50D | HY-F75D | HY-F100D | HY-F120D | HY-F150D |
|
Chamber |
35L
Φ318×450mm
|
50L
Φ340×550mm
|
75L
Φ400×600mm
|
100L
Φ440×650mm
|
120L
Φ480×660mm
|
150L
Φ510×740mm
|
|
Working Pressure |
0.22Mpa |
|||||
|
Working Temperature |
134℃ |
|||||
|
Max. Working Pressure |
0.23Mpa |
|||||
|
Heat Average |
≤±1℃ |
|||||
|
Timer |
0~99min or 0~99hour59min |
|||||
|
Temperature Scope |
105~134℃ |
|||||
|
Power |
AC110-220V±10%,50-60Hz±10% or customize for free |
|||||
| 2.5KW | 3KW | 4.5KW | 4.5KW | 6KW | 6KW | |
|
Overall Dimension(mm) |
470×450×840 |
520×500×970 | 550×530×990 | 580×560×1060 | 630×610×1130 | 660×640×1130 |
|
Transport Dimension(mm) |
570×570×1000 |
610×610×1130 | 650×650×1150 | 680×680×1220 | 730×730×1280 | 760×760×1280 |
|
G.W./N.W. |
64/46KG | 75/56 KG | 90/67 KG | 98/73 KG | 126/101 KG | 136/111 KG |
With 6 volumes optional to meet the needs of different customers, autoclave 75L, autoclave 100L, and 150L vertical mushroom autoclave are the best-selling models in laboratories, hospitals and mushroom farms.
Also widely be used in Clinics, Scientific Research Institutes, and other organizations to sterilize Surgical Instruments, Fabrics, Glasses, Culture Medias, Mushroom Cultivation/Substrate etc.
Located in Anhui Province, China--BENOVOR is a professional manufacturer of Hospital Autoclave, Laboratory Autoclave, Dental Autoclave and other relevant medical products.
In the past 15 years, BENOVOR has accumulated a large number of technologies and patents, gathered many professional experts, and has become one of the largest manufacturer in medical industrial.
BENOVOR has different types of products with different volumes. With more than 15 years' manufacturing experience, we have exported our products to all of the world.
Customer's satisfaction is our goal.
All the products from BENOVOR has been strictly certificated with CE, ISO 13485 and ISO 9001. Besides, we can support OEM and ODM to meet each customer's requirements.
Committed to the development and production of medical equipment, we strive to do better.
Q: How Can I Choose The Suitable One?
A: Please Tell Us Your Detailed Requirements By Mail or Online, We Will Recommend The Suitable One As Per Your Requests.
Q: Is Your Price Competitive?
A: We Make Sure To Offer You The Best Quality With Competitive Price.
Q: How Can I Pay?
A: We Accept Many Payment Methods, Such As T/T, Western Union, L/C.
Q: When Can I Receive It After Paying?
A: Normal Models Can Be Delivered Within 10-20 Days. Please Contact Us to Check Transport Time to Your Address.
Q: How To Deliver?
A: We Can Send By Express, By Sea And By Air.
Q: Will It Be Broken During Transport?
A: Please Do Not Worry, We Do Standard Export Package.
Q: What Should I Do If I Do Not Know How To Use?
A: Please Do Not Worry, User Manual Will Be Sent Together With Machine And You Can Also Contact Us With More Technical Support.
Q: What Should I Do If Some Parts Are Broken?
A: Please Do Not Worry,We Have 12 Months Warranty For Main Machine And Wearing Parts, We Can Provide Them For Free Within Warranty.
A: All Our Products Have Lifelong After-sale Service With Free Technical Support.
