Environmental Conditions :
Temperature 10~30°CTimer :
0-99 hours 59 mins or Continuous OperationTemperature Fluctuation :
±1℃Temperature Accuracy :
0.1℃Temperature Scope :
0℃~50℃Power Supply :
AC220/ 50HzHouYuan Microcomputer Control Artificial Climate Incubator
1. Microcomputer Control Artificial Climate Incubator Features:
* The overall frame of the constant temperature and humidity incubator is made of bronze fashion aluminum alloy and cold-rolled steel plate spraying production process, which is beautiful and generous. The inner tank is made of mirror stainless steel. The shelf bracket can be adjusted at will. It is safe and convenient to use, and has a novel and beautiful appearance;
* Adopting a microcomputer fully automatic large-screen LCD controller specially developed by Dascatel, equipped with 9 working program groups and each group is equipped with 99 program segment control or day and night switching control mode, which maximizes the user's control parameters Settings management;
* LCD liquid crystal controller has the display function of Beijing time, which makes it more convenient and simple for users to grasp the experimental time. The controller backlight can be turned off. Boot display company information function;
* Using light-emitting chip light suitable for plant growth: Semiconductor 2835 specification, lamp bead wavelength range of 400-780nm, light-emitting color temperature index: 4500K; with the use of light intensity setting parameters to directly input the setting function of the light intensity value, avoiding step adjustment The difference between light intensity and actual demand light intensity requirements;
* The refrigeration unit of the equipment adopts brand compressors and uses fluorine-free environmentally friendly refrigerants; the intelligent temperature adjustment method will automatically recognize changes in the environment and climate to adjust the difference between the upper and lower refrigeration values, taking into account the accuracy of temperature control and the energy saving of electricity;
* The self-protection function of the control system has the ability to automatically interrupt the operation when the high temperature exceeds the set range, sound and light alarms, to protect the safety of the samples and the experimental environment;
* The control system has a recovery function due to power failure. If there is a failure, the controller will give an alarm in time and display it on the display in the form of text, which is more direct and simple;
* The humidification adopts an external ultrasonic humidifier with a large-volume water tank, which is reliable and more stable.

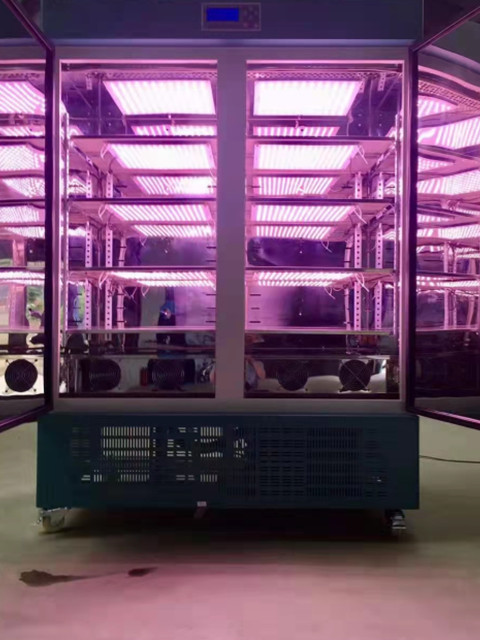

2. Microcomputer Control Artificial Climate Incubator Pictures:
3. Artificial Climate Incubator Specifications:
Model |
HYAC-P160C |
HYAC-P280C |
HYAC-P380C |
HYAC-P500C |
HYAC-P600C |
HYAC-P800C |
HYAC-P1000C |
HYAC-P1500C |
Volume |
160L |
300L |
400L |
500L |
600L |
800L |
1000L |
1000L |
Chamber Size (mm) |
540*540*600 |
540*540*1000 |
540*540*1310 |
640*640*1250 |
1300*640*1250 |
1300*640*1100 |
1300*640*1250 |
1960*640*1250 |
External Size (mm) |
600*600*1285 |
600*600*1735 |
600*600*1970 |
700*700*1950 |
1360*700*1585 |
1360*700*1820 |
1400*690*1980 |
2020*700*1980 |
Temperature Range |
0~50℃ (Illuminated 10~50℃, No illuminated 0~50℃) |
|||||||
Temperature Resolution |
0.1℃ |
|||||||
Temperature Fluctuation |
±1℃(The experimental conditions are no-load, ambient temperature 20℃, humidity 50%RH.) |
|||||||
Humidity Control Range |
50~95%RH(The temperature setting is above 10℃, and the humidity setting is valid.) |
|||||||
Humidity Fluctuation |
±5~±7%RH |
|||||||
Light Method |
External LED lights (not tubes) on the side, each with 96 beads. |
|||||||
Working Environment |
10~30℃ |
|||||||
Internal Material |
Mirror stainless steel |
|||||||
External Materail |
Fashionable aluminium alloy |
|||||||
Timer |
0~99hour59min or continous running |
|||||||
Optional |
|
|||||||
Power |
AC110-220V, 50-60Hz or customized. |
|||||||
Voltage |
≤817W |
≤1297W |
≤1361W |
≤1471W |
≤2028W |
≤2298W |
≤2476W |
≤4276W |
Optional Function |
Printer, U disk storage, carbon dioxide control, ultraviolet lamp sterilization, adjustable circulating wind speed, wireless alarm (message alarm), regular ventilation. |
4. Company Advantage
a. Series product advantage: Houyuan Medical has portable autoclave, tapletop autoclave, vertical autoclave and horizontal autoclave to meet different clients' demand.
b. OEM and ODM service advantage: Houyuan Medical supply OEM and ODM service;
c. Technical Support: User manual sent with machine, also can offer online technical support.
d. After-sales service: 24 hours online service.
