HouYuan Laboratory Vacuum Drying Oven

Usage: laboratory drying oven is widely used in research and application fields such as biochemistry, chemical pharmacy, medical and health, agricultural research, environmental protection, etc., for powder drying, baking, and disinfection and sterilization of various glass containers. It is especially suitable for fast and efficient drying treatment of dry heat sensitive, easily decomposed, easily oxidized substances and complex composition items.

Features and benefits
  • Material :

    Outside power coated cold rolling steel.
  • Temperature Controller :

    PID Microprocessor Control
  • Time Range :

    0-9999min
  • Temperature Accuracy :

    ±2℃ at 100℃
  • Temperature Homogeneous degree :

    ±3%(Measurement point is 100℃)
  • Temperature Fluctuation :

    ±1℃
  • Temperature Range :

    RT+10℃~250℃ Heating Around
  • Material :

    Inside 304 brushed stainless steel
  • Vacuum :

    ≤133 Pa
Product Details


HouYuan Laboratory Vacuum Drying Oven


1. HouYuan Laboratory Vacuum Drying Oven Features

* The inner chamber is made of stainless steel, matched with a circular arc design, and the outer shell is made of cold-rolled steel plate electrostatic spraying process, and the overall design is beautiful and generous.

* The inner door is made of ultra-thick tempered glass, and the outer door is equipped with an observation window to facilitate the observation of the drying treatment of objects in the working room.

* The use of high-performance CPU processing chip and high-sensitivity, high-precision platinum resistance sensor temperature control system makes the temperature control more accurate and the operation more convenient.

* With sensor failure alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and up to 9999 minutes of timing functions.

* The closing tightness of the box door can be adjusted, and the integrally formed silicone rubber door sealing ring ensures high vacuum in the box.

* Independent limit temperature control alarm system, automatically interrupt work when exceeding the limit temperature, double insurance.

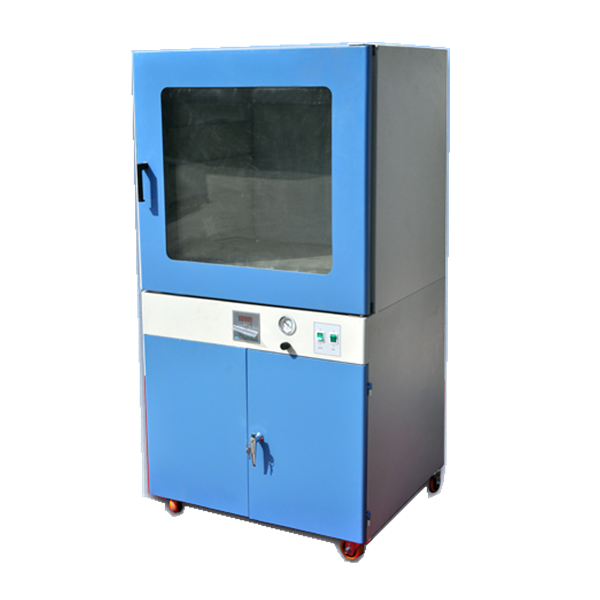

2. HouYuan Laboratory Vacuum Drying Oven Pictures

vacuum drying oven

vacuum drying oven


3. HouYuan Laboratory Vacuum Drying Oven Specifications

Model

HY-K30B

HY-K50B

HY-K90B

HY-K210B

Volume

30L

50L

90L

210L

Chamber Size (mm)

300*300*275

415*370*345

450*450*450

640*560*600

Overall Dimension (mm)

590*465*475

710*540*545

610*650*1430

810*760*1590

Temperature Range

RT+10~250℃ Heating Around

Temperature Accuracy

±2℃ at 100℃

Temperature Fluctuation

±1℃

Vacuum

≤133Pa

Temperature Controller

PID Microprocessor Control, soft-touch, digital display.

Temperature Sensor

PT100

Timer

0~9999min

Material

Inside 304 brushed stainless steel, Outside power coated cold rolling steel.

Shelf

2pcs

2pcs

2pcs

3pcs

Power

≥300W

≥1000W

≥1200W

≥2160W

AC220V±10V 50Hz±1Hz or customize.

Optional

1. Printer 2. RS485 Interface 3. Circulating fan speed adjustable control

4. Multi-segment programmable controller  5. UV sterilization system


4. Company Advantage

a. Series product advantage: Houyuan Medical has portable autoclave, tapletop autoclave, vertical autoclave and horizontal autoclave to meet different clients' demand.

b. OEM and ODM service advantage: Houyuan Medical supply OEM and ODM service;

c. Technical Support: User manual sent with machine, also can offer online technical support.

d. After-sales service: 24 hours online service.


5. FAQ

1. How Can I Choose the Suitable One?

Please Tell Us Your Detailed Requirements by Mail or Online, We Will Recommend the Suitable One As Your Requests.

2. Is Your Price Competitive?

We Make Sure to Offer You the Best Quality with Competitive Price.

3. How Can I Pay?

We Accept Many Payment Methods, Such As T/t, Western Union.

4. When Can I Receive It After Paying?

Normal Models Can Be Delivered within 5-7days. Please Contact Us to Check Transport Time to Your Address.

5. How to Deliver?

We Can Send by Express, by Sea and by Air.

6. Will It Be Broken During Transport?

We Do Standard Export Package.

7. What Should I Do if I Do Not Know How to Use?

User Manual Will Be Sent Together with Machine and You Can Also Contact Us with More Technical Support.

8. What Should I Do if Some Parts Are Broken?

We Have 12 Months Warranty for Main Machine. For Wearing Parts, You Can Buy Them from Us for Replacement.
