HouYuan Hot Air Circulation Lab Drying Oven

HouYuan Manufacturer Hot Air Circulation Lab Drying Oven:

For industrial and mining enterprises, universities, bio-pharmaceuticals, food processing, scientific research institutions, medical units and various laboratories for drying, baking, melting, disinfection, and sterilization of non-flammable, explosive and non-volatile items.


Features and benefits
  • Material :

    Outside power coated cold rolling steel.
  • Material :

    Inside 304 brushed stainless steel
  • Temperature Controller :

    PID Microprocessor Control
  • Time Range :

    0~9999min or Continuous Operation
  • Temperature Homogeneous degree :

    ±3%(Measurement point is 100℃)
  • Temperature Accuracy :

    ±2℃ at 100℃
  • Temperature Uniformity :

    0.1℃
  • Temperature Fluctuation :

    ±1℃
  • Working temperature :

    RT60~260℃
  • Temperature Range :

    RT+10℃~300℃
Product Details


HouYuan Hot Air Circulation Lab Drying Oven


1. Hot Air Circulation Drying Oven Features

* The temperature control system using high-performance CPU processing chip and high-sensitivity, high-precision platinum resistance sensor makes the temperature control more accurate and the operation more convenient.

* Equipped with sensor failure alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and up to 9999 minutes of timing functions.

* The shell made of high-quality cold-rolled steel plate adopts the spraying electrostatic powder spraying technology, which is more durable and easier to clean.

* The inside chamber is made of high-quality stainless steel, and the four-corner arc design makes cleaning more convenient.

* High temperature resistant motor, bottom heating method and optimized forced convection air duct structure are used to ensure the uniformity of temperature control.

* The shelf made of stainless steel round steel welding combined with polishing process is durable and heavier.

* The three-layer tempered glass observation window that meets the CCC certification is safer and the samples in the observation box are clearer.

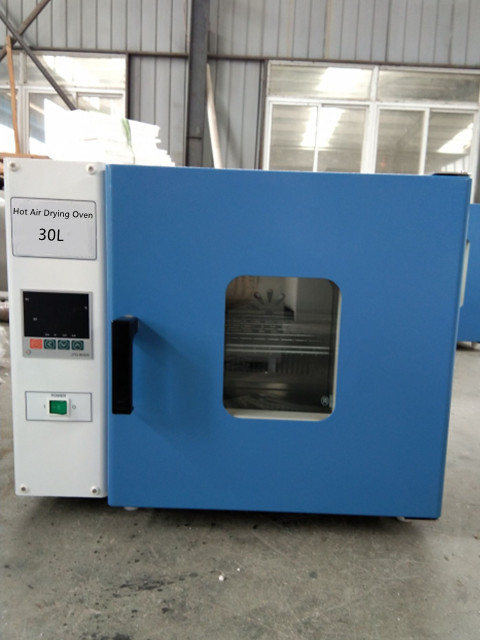

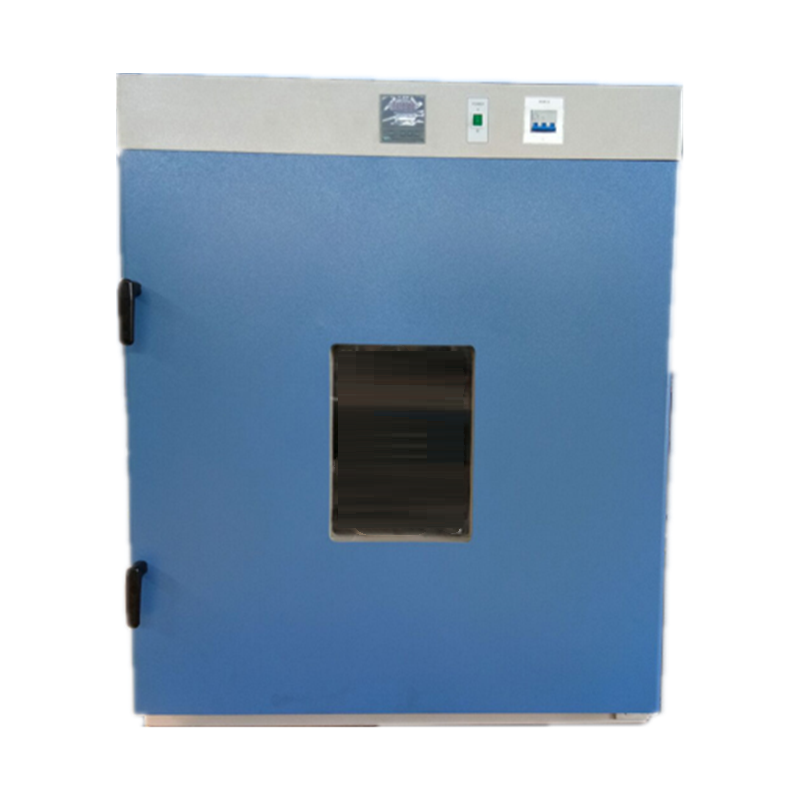

2. Hot Air Circulation Drying Oven Pictures

hot air drying ovenhot air drying ovenhot air drying ovenhot air drying ovenhot air drying ovenhot air drying oven



3.Hot Air Circulation Drying Oven Specifications

Model

HY-G30S

HY-G70S

HY-G135S

HY-G250S

HY-G450S

HY-G640S

Volume

30L

70L

135L

250L

420L

640L

Chamber Size (mm)

350*350*350

350*450*450

450*550*550

500*600*750

600*550*1300

800*800*1000

Overall Dimension (mm)

620*605*520

620*680*620

720*780*750

770*840*980

740*830*1650

940*1090*1380

Temperature Range

RT+10~300℃

Temperature Accuracy

±1℃ at 100℃

Temperature Fluctuation

±1℃

Temperature Uniformity

±2℃ at 100℃

Temperature Controller

PID Microprocessor Control, soft-touch,LCDdisplay.

Temperature Sensor

PT100

Timer

0~9999min or Continuous Operation

Material

Inside 304 brushed stainless steel, Outside power coated cold rolling steel.

Shelf

2pcs

2pcs

2pcs

3pcs

3pcs

3pcs

Power

500W

1000W

1500W

2000W

4000W

4000W

AC220V±10V 50Hz±1Hz

Optional

1. Printer 2. RS485 Interface 3. Circulating fan speed adjustable control

4. Multi-segment programmable controller 5. UV sterilization system


4. Company Advantage

a. Series product advantage: Houyuan Medical has portable autoclave, tapletop autoclave, vertical autoclave and horizontal autoclave to meet different clients' demand.

b. OEM and ODM service advantage: Houyuan Medical supply OEM and ODM service;

c. Technical Support: User manual sent with machine, also can offer online technical support.

d. After-sales service: 24 hours online service.


5. FAQ

1. How Can I Choose the Suitable One?

Please Tell Us Your Detailed Requirements by Mail or Online, We Will Recommend the Suitable One As Your Requests.

2. Is Your Price Competitive?

We Make Sure to Offer You the Best Quality with Competitive Price.

3. How Can I Pay?

We Accept Many Payment Methods, Such As T/t, Western Union.

4. When Can I Receive It After Paying?

Normal Models Can Be Delivered within 5-7days. Please Contact Us to Check Transport Time to Your Address.

5. How to Deliver?

We Can Send by Express, by Sea and by Air.

6. Will It Be Broken During Transport?

We Do Standard Export Package.

7. What Should I Do if I Do Not Know How to Use?

User Manual Will Be Sent Together with Machine and You Can Also Contact Us with More Technical Support.

8. What Should I Do if Some Parts Are Broken?

We Have 12 Months Warranty for Main Machine. For Wearing Parts, You Can Buy Them from Us for Replacement.
