HouYuan Fully Stainless Steel Horizontal Autoclave Machine

This fully stainless steel horizontal autoclave machine is an integral stainless steel 304 material, including the entire frame and interior material, it is suitable for sterilization environment with strong corrosiveness.
Features and benefits
  • Heat Average :

    ≤±2 ℃
  • Time for Drying :

    0~60 min
  • Time for Sterilization :

    0~60 min
  • Temperature Adjust Range :

    40℃~134℃
  • Working Temperature :

    134℃
  • Working Pressure :

    0.22MPa
Product Details

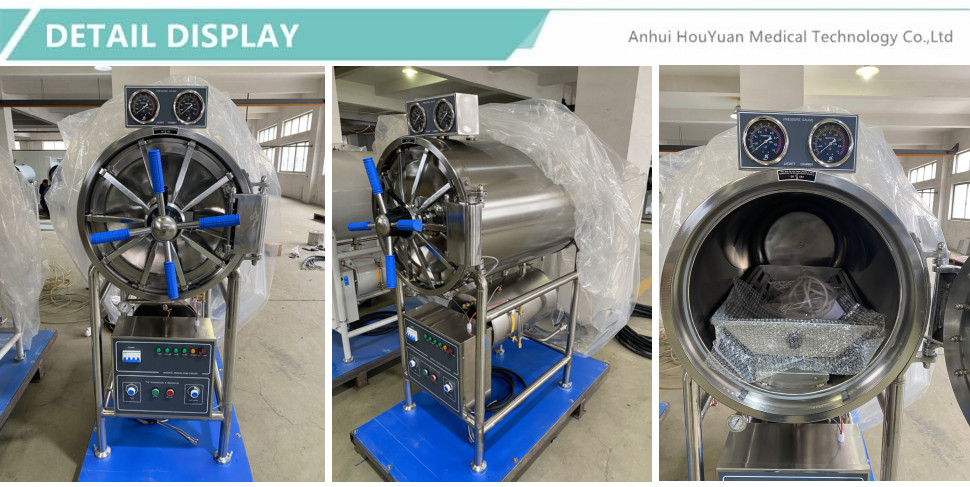

HouYuan Fully Stainless Steel Horizontal Autoclave Machine


♦ Automatically controlled the sterilizing process, easy to operate.

♦ With drying function,suitable for medical dressing drying.

♦ With over-temperature,over-pressure auto-protect device.

♦ The door can not be open until the pressure in the chamber reduced to 0.027MPa.

♦ The machine can't be start on if the door doesn't close well.

♦ The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.

♦ Automatically cut off the power if water-lack happened, and alarm at the meanwhile.

Both outside and inner chamber is high quality fully stainless steel 304 material.

♦ Power can be customized as per customers' requirements for free.

horizontal autoclave machine

Model

HY-WS150BJ

HY-WS200BJ

HY-WS280BJ

HY-WS400BJ

Capacity

150L

200L

280L

400L

Chamber Size

φ440×850mm

φ515×1000mm

φ600×1000mm

Φ700×1100mm

Working Pressure

0.22Mpa

Temperature Selection

40℃-134℃

Sterilization Time Selection

0-99 mins

Drying Time Selection

0-99 mins

Heat Average

≤±2℃

Power

9KW/380V 50Hz

9KW/380V 50Hz

12KW/380V 50Hz

18KW/380V 50Hz

Machine Size (mm)

1400×600×1300mm

1400X670×1650mm

1400x770x1780mm

1430x880x1830mm

Packing Size (mm)

1550×750×1850mm

1560×820×1850mm

1680×920×2100mm

1600×1050×2100mm

G.W./N.W.

320/240 KG

350/260 KG

465/365 KG

530/420 KG

horizontal autoclave machine

This horizontal cylindrical autoclave normally be used in kinds of hospitals, especially in the working environment with high humidity.



Q: How Can I Choose The Suitable One?

A: Please Tell Us Your Detailed Requirements By Mail or Online, We Will Recommend The Suitable One As Per Your Requests.

Q: Is Your Price Competitive?

A: We Make Sure To Offer You The Best Quality With Competitive Price.

Q: How Can I Pay?

A: We Accept Many Payment Methods, Such As T/T, Western Union, L/C.

Q: When Can I Receive It After Paying?

A: Normal Models Can Be Delivered Within 10-20 Days. Please Contact Us to Check Transport Time to Your Address.

Q: How To Deliver?

A: We Can Send By Express, By Sea And By Air.

Q: Will It Be Broken During Transport?

A: Please Do Not Worry, We Do Standard Export Package.

Q: What Should I Do If I Do Not Know How To Use?

A: Please Do Not Worry, User Manual Will Be Sent Together With Machine And You Can Also Contact Us With More Technical Support.


Q: What Should I Do If Some Parts Are Broken?

A: Please Do Not Worry,We Have 12 Months Warranty For Main Machine And Wearing Parts, We Can Provide Them For Free Within Warranty.

A: All Our Products Have Lifelong After-sale Service With Free Technical Support.
