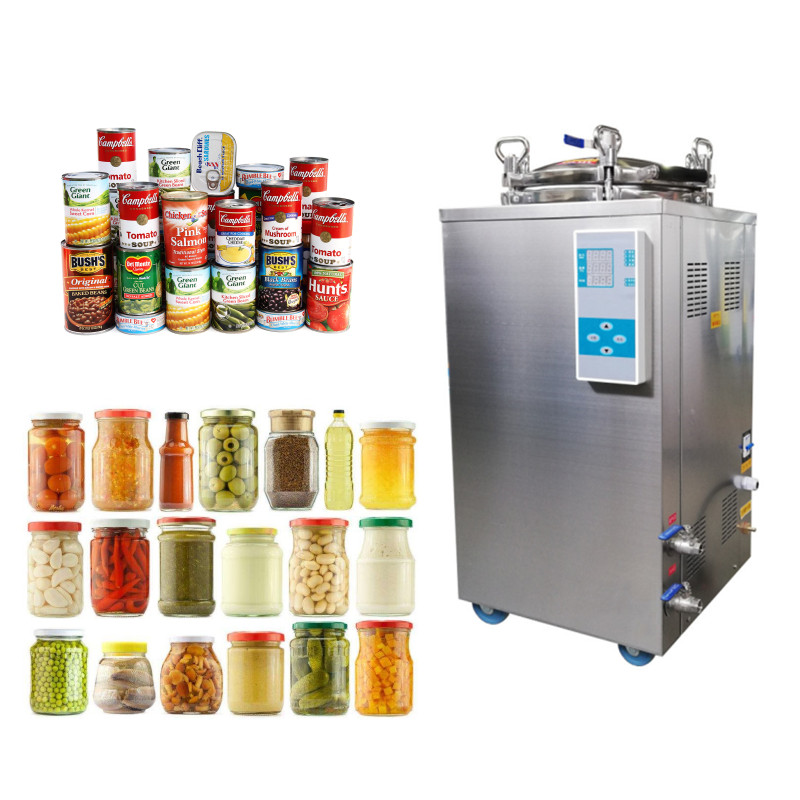

This vertical type food sterilization machine is a small food sterilizer, suit for sterilization of canned/bottle/vacuum pounches packing food, also a small retort sterilizer for food factory/shop.
This vertical type food sterilization machine is a small food sterilizer, suit for sterilization of canned/bottle/vacuum pounches packing food, also a small retort sterilizer for food factory/shop.
Heat Average :
≤±1 ℃Temperature Adjust Range :
105℃~134℃Time for Sterilization :
0~99 min or 0~99 hour59minWorking Temperature :
134℃Working Pressure :
0.22MPa
HouYuan Counter Pressure Retort Autoclave Food Sterilization Machine
Safety performance: When the steam over-pressure is 0.25MPa, the pressure will be released automatically. When the temperature exceeds 140 ℃, the power supply will be cut off automatically, and the double safety protection, water cut-off and overheating protection, and current overload automatic cut-off safety interlock device protection will be provided.
♦ When the water level is lower than the specified water level, the sterilizer will automatically cut off the heating power and send out an alarm signal.
♦ Equipped with timer to automatically control the sterilization time.
♦ This product is equipped with safety valve, with steam overpressure 0.25MPa self relief, when the temperature exceeds 140 ℃, the power supply is automatically cut off, double safety protection, water cut-off overheating protection, current overload automatic cut-off safety interlock device protection, safe and reliable use.
♦ This product is suitable for the disinfection and sterilization of food packaging, utensils, instruments and other articles. It is an ideal equipment for aseptic test in Food Research Institute.
♦ The whole machine is made of high-quality stainless steel, which has the advantages of corrosion resistance, easy maintenance and long service life.
|
Model |
HY-F35DC |
HY-F50DC |
HY-F75DC |
HY-F100DC |
HY-F120DC |
|
Chamber |
35L
Φ318×450mm
|
50L
Φ340×550mm
|
75L
Φ400×600mm
|
100L
Φ440×650mm
|
100L
Φ510×740mm
|
|
Working Pressure |
0.22Mpa |
||||
|
Working Temperature |
134℃ |
||||
|
Heat Average |
≤±1℃ |
||||
|
Timer |
0~99min or 0~99hour59min |
||||
|
Boiling Temperature |
105~134℃ |
||||
|
Safety Performance |
When the steam over-pressure is 0.25MPa, the pressure will be released automatically. When the temperature exceeds 140 ℃, the power supply will be cut off automatically, and the double safety protection, water cut-off and overheating protection, and current overload automatic cut-off safety interlock device protection will be provided. |
||||
|
Power |
AC220V 50Hz or customized |
||||
|
2.5KW |
3KW |
4.5KW |
4.5KW |
6KW |
|
|
Overall Dimension(mm) |
480×460×850 |
520×520×980 |
560×560×980 |
590×590×1080 |
660×640×1130 |
|
Transport Dimension(mm) |
570×550×970 |
590×590×1110 |
650×630×1150 |
680×650×1220 |
760×760×1280 |
|
G.W./N.W. |
56/42 KG |
68/50 KG |
90/70 KG |
105/85 KG |
136/111 KG |
This vertical food sterilizer is a ideal food sterilization equipment for canned food, bottle food, vacuum pouches food.
Widely be used in Food factory, food shop, home-use, food research laboratory.
Located in Anhui Province, China--BENOVOR is a professional manufacturer of food sterilizer, small retort autoclave, counter pressure autoclave and other food sterilization machine.
In the past 15 years, BENOVOR has accumulated a large number of technologies and patents, gathered many professional experts, and has become one of the largest manufacturer in medical industrial.
BENOVOR has different types of products with different volumes. With more than 15 years' manufacturing experience, we have exported our products to all of the world.
Customer's satisfaction is our goal.
All the products from BENOVOR has been strictly certificated with CE, ISO 13485 and ISO 9001. Besides, we can support OEM and ODM to meet each customer's requirements.
Committed to the development and production of medical equipment, we strive to do better.
Q: How Can I Choose The Suitable One?
A: Please Tell Us Your Detailed Requirements By Mail or Online, We Will Recommend The Suitable One As Per Your Requests.
Q: Is Your Price Competitive?
A: We Make Sure To Offer You The Best Quality With Competitive Price.
Q: How Can I Pay?
A: We Accept Many Payment Methods, Such As T/T, Western Union, L/C.
Q: When Can I Receive It After Paying?
A: Normal Models Can Be Delivered Within 10-20 Days. Please Contact Us to Check Transport Time to Your Address.
Q: How To Deliver?
A: We Can Send By Express, By Sea And By Air.
Q: Will It Be Broken During Transport?
A: Please Do Not Worry, We Do Standard Export Package.
Q: What Should I Do If I Do Not Know How To Use?
A: Please Do Not Worry, User Manual Will Be Sent Together With Machine And You Can Also Contact Us With More Technical Support.
Q: What Should I Do If Some Parts Are Broken?
A: Please Do Not Worry,We Have 12 Months Warranty For Main Machine And Wearing Parts, We Can Provide Them For Free Within Warranty.
A: All Our Products Have Lifelong After-sale Service With Free Technical Support.
