Timer :
0-99 hours 59 mins or Continuous OperationTemperature Fluctuation :
±1℃Temperature Accuracy :
0.1℃Temperature Scope :
-10~50℃Power Supply :
AC220/ 50HzEnvironmental Conditions :
Temperature 10~30°CHouYuan Cooled Incubator With LED Lights
1. Cooled Incubator With LED Lights Features:
* The cabinet structure is made of mirror stainless steel in the studio, and the outer shell is sprayed with cold-rolled steel plate and adopts integral sealing and heat preservation. The overall structure is beautiful and novel, and at the same time it achieves a good heat preservation effect;
* The equipment is equipped with a non-protruding integral door handle sheet metal design, the overall hierarchy is clear and beautiful. The shelf bracket can be adjusted at will, it is safe and convenient to use, novel and beautiful in appearance;
* Using the microcomputer fully automatic large-screen LCD controller specially developed by Dascatel, equipped with 9 working program groups and each group is equipped with 99 program segment control or day and night switching control mode, which can meet the user control parameters to the greatest extent Settings management;
* LCD liquid crystal controller has the display function of Beijing time, which makes it more convenient and simple for users to grasp the experimental time. The controller backlight can be turned off. Boot display company information function;
* Using light-emitting chip light suitable for plant growth: Semiconductor 2835 specification, lamp bead wavelength range of 400-780nm, light-emitting color temperature index: 4500K; with the use of light intensity setting parameters to directly input the setting function of the light intensity value, avoiding step adjustment The problem of the difference between the light intensity and the actual demand light intensity requirements;
*The refrigeration unit of the equipment adopts branded compressors and uses non-fluorine environmentally friendly refrigerants; the intelligent temperature adjustment method will automatically recognize changes in the environment and climate to adjust the difference between the upper and lower refrigeration values, taking into account the accuracy of temperature control and the energy saving of electricity;
* The automatic non-frost operation mode combined with the non-energy consumption defrost mode effectively avoids large fluctuations in temperature from affecting the experimental results and ensures the temperature stability of the equipment for long-term experiments;
* The air duct structure specially designed for the requirements of the control parameters has a horizontal and vertical three-dimensional breeze circulation effect to ensure the uniformity of the air flow on each layer of the sample; in order to achieve a more stable experimental effect of control;
* Equipped with air intake control valve, which can manually switch and adjust the air circulation inside and outside the box, and cooperate with the breeze circulation in the box to keep the air in the working room fresh;
* The self-protection function of the control system has the function of automatically interrupting the operation when the high temperature exceeds the set range, sound and light alarm, to protect the safety of the sample and the experimental environment;
* The control system has a recovery function due to power failure. If there is a failure, the controller will give an alarm in time and display it on the display in the form of text, which is more direct and simple.

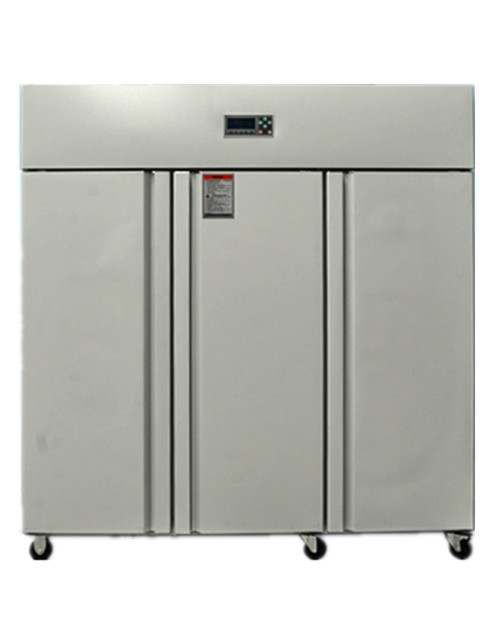

2. Cooled Incubator With LED Lights Pictures:
3. Cooled Incubator With LED Lights Specifications:
Model |
HYLI-P160C |
HYLI-P250C |
HYLI-P300C |
HYLI-P400C |
HYLI-P500C |
HYLI-P800C |
HYLI-P1000C |
HYLI-P1200C |
HYLI-P1500C |
Volume |
160L |
300L |
400L |
500L |
600L |
800L |
1000L |
1200L |
1500L |
Chamber Size (mm) |
450*420*850 |
540*520*900 |
540*520*1200 |
640*620*1100 |
640*620*1300 |
1200*620*1050 |
1200*620*1200 |
1300*620*1300 |
1710*550*1400 |
External Size (mm) |
550*580*1560 |
640*680*1640 |
640*680*1790 |
740*780*1700 |
740*780*1900 |
1300*780*1830 |
1300*780*1830 |
1400*780*1930 |
1810*690*1970 |
Temperature Range |
-10~50℃ |
||||||||
Temperature Resolution |
0.1℃ |
||||||||
Temperature Fluctuation |
±1℃(The experimental conditions are no-load, ambient temperature 20℃, humidity 50%RH.) |
||||||||
Illuminance (lux) |
20000 |
||||||||
LightingMethod |
Side external LED light (Not lamp),96 lamp beads per LED light. |
||||||||
Working Environment |
10~30℃ |
||||||||
Internal Material |
Mirror stainless steel |
||||||||
ExternalMaterial |
Fashionable aluminium alloy |
||||||||
Timer |
0~99hour59min orcontinuous running |
||||||||
Power |
AC110-220V, 50-60Hz |
||||||||
Voltage |
1026W |
1416W |
1416W |
1436W |
1590W |
2448W |
2448W |
2756W |
4476W |
4. Company Advantage
a. Series product advantage: Houyuan Medical has portable autoclave, tapletop autoclave, vertical autoclave and horizontal autoclave to meet different clients' demand.
b. OEM and ODM service advantage: Houyuan Medical supply OEM and ODM service;
c. Technical Support: User manual sent with machine, also can offer online technical support.
d. After-sales service: 24 hours online service.
5. FAQ
1. How Can I Choose the Suitable One?
Please Tell Us Your Detailed Requirements by Mail or Online, We Will Recommend the Suitable One As Your Requests.
2. Is Your Price Competitive?
We Make Sure to Offer You the Best Quality with Competitive Price.
3. How Can I Pay?
We Accept Many Payment Methods, Such As T/t, Western Union.
4. When Can I Receive It After Paying?
Normal Models Can Be Delivered within 5-7days. Please Contact Us to Check Transport Time to Your Address.
5. How to Deliver?
We Can Send by Express, by Sea and by Air.
6. Will It Be Broken During Transport?
We Do Standard Export Package.
7. What Should I Do if I Do Not Know How to Use?
User Manual Will Be Sent Together with Machine and You Can Also Contact Us with More Technical Support.
8. What Should I Do if Some Parts Are Broken?
We Have 12 Months Warranty for Main Machine. For Wearing Parts, You Can Buy Them from Us for Replacement.
