This Clinical Laboratory Vertical Steam Sterilizer Autoclave is fully automatic circulation type, specially be used in clinical laboratory.
This Clinical Laboratory Vertical Steam Sterilizer Autoclave is fully automatic circulation type, specially be used in clinical laboratory.
Heat Average :
≤±1 ℃Time for Sterilization :
0~99 min or 0~99 hour59minTemperature Adjust Range :
0℃~134℃Working Temperature :
134℃Working Pressure :
0.22MPa
HouYuan Clinical Laboratory Vertical Steam Sterilizer Autoclave
♦ Fully stainless steel structure.
♦ Hand wheel type of quick-open door structure.
♦ Door safety lock system.
♦ Automatically controlled by computer.
♦ LCD display of working status, touch type key.
♦ Over temperature & Over pressure auto-protection.
♦ Steam-water inner circulation system: No steam discharge, and the environment for sterilizing will be clean and dry.
♦ Self-inflating type seal.
♦ Safe protection of water lacking.
♦ Automatically shut off with beep reminding after sterilization.
♦ Optional drying function.
680×410×1040
710×460×1150
730×510×1250
730×510×1250
750×510×1170
780×570×1290
820×600×1400
820×620×1450
108/85 KG
125/99 KG
Model
HY-S35G
HY-S50G
HY-S75G
HY-S100G
Chamber
35L
Φ318×450mm
50L
Φ340×550mm
75L
Φ400×600mm
100L
Φ440×650mm
Working Pressure
0.22Mpa
Working Temperature
134℃
Max. Working Pressure
0.23Mpa
Heat Average
≤±1℃
Timer
0~99min
or 0~99hour59min
Temperature Scope
0~134℃
Power
AC220V
50Hz or customized
2.5KW
3KW
4.5KW
4.5KW
Overall Dimension(mm)
Transport Dimension(mm)
G.W./N.W.
120/98 KG
154/122 KG
This vertical laboratory autoclave has an internal circulation system of steam and water, does not emit steam to the outside.
It is very suitable for sterilization needs that require a dry environment.
Widely be used in clinical laboratories, CDC, biological laboratories, blood stations and other places. , for sterilization of instruments, culture medium, liquid and waste etc.

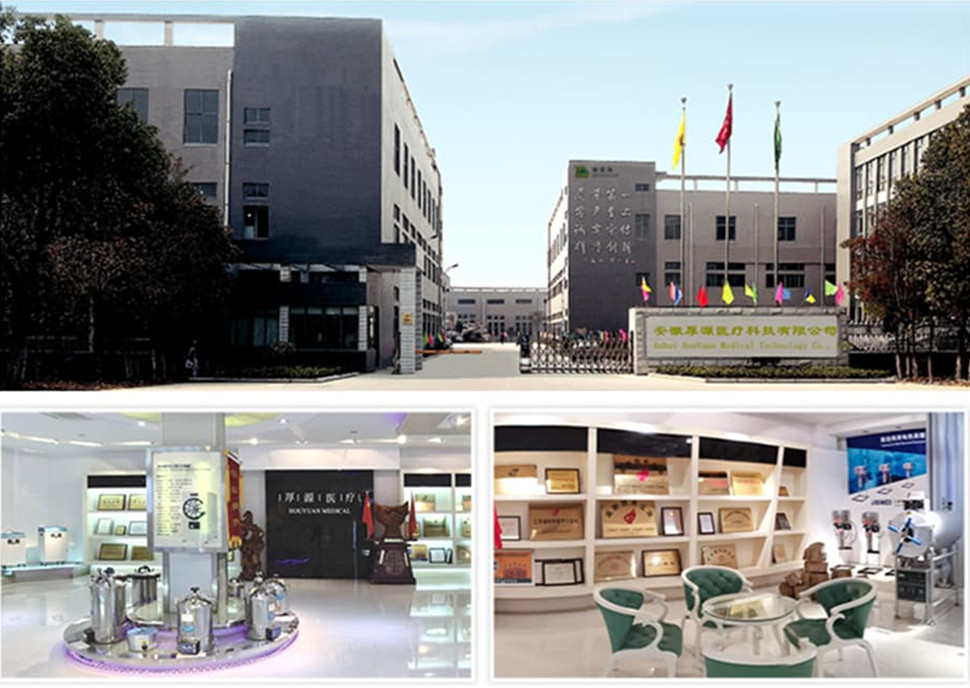

Located in Anhui Province, China--BENOVOR(HouYuan Medical) is a professional manufacturer of Hospital Autoclave, Laboratory Steam Sterilizer, Dental Autoclave and other relevant medical products.
In the past 15 years, BENOVOR(HouYuan Medical) has accumulated a large number of technologies and patents, gathered many professional experts, and has become one of the largest manufacturer in medical industrial.
BENOVOR(HouYuan Medical) has different types of products with different volumes. With more than 15 years' manufacturing experience, we have exported our products to all of the world.
Customer's satisfaction is our goal.
All the products from BENOVOR(HouYuan Medical) has been strictly certificated with CE, ISO 13485 and ISO 9001.
Besides, we can support OEM and ODM to meet each customer's requirements.
Committed to the development and production of medical equipment, we strive to do better.
Q: How Can I Choose The Suitable One?
A: Please Tell Us Your Detailed Requirements By Mail or Online, We Will Recommend The Suitable One As Per Your Requests.
Q: Is Your Price Competitive?
A: We Make Sure To Offer You The Best Quality With Competitive Price.
Q: How Can I Pay?
A: We Accept Many Payment Methods, Such As T/T, Western Union, L/C.
Q: When Can I Receive It After Paying?
A: Normal Models Can Be Delivered Within 10-20 Days. Please Contact Us to Check Transport Time to Your Address.
Q: How To Deliver?
A: We Can Send By Express, By Sea And By Air.
Q: Will It Be Broken During Transport?
A: Please Do Not Worry, We Do Standard Export Package.
Q: What Should I Do If I Do Not Know How To Use?
A: Please Do Not Worry, User Manual Will Be Sent Together With Machine And You Can Also Contact Us With More Technical Support.
Q: What Should I Do If Some Parts Are Broken?
A: Please Do Not Worry,We Have 12 Months Warranty For Main Machine And Wearing Parts, We Can Provide Them For Free Within Warranty.
A: All Our Products Have Lifelong After-sale Service With Free Technical Support.
