Application:
Clean biological safety cabinet is necessary in animalcule lab, especially in the condition needding protection measure, such as medicine, pharmacy, scientific research and so on.
Vibration Half Peak :
≤3μmFront Suction Air Speed :
0.55m±0.025m/sCleanliness Grade :
Class 100 (US Federal 209E)Noise :

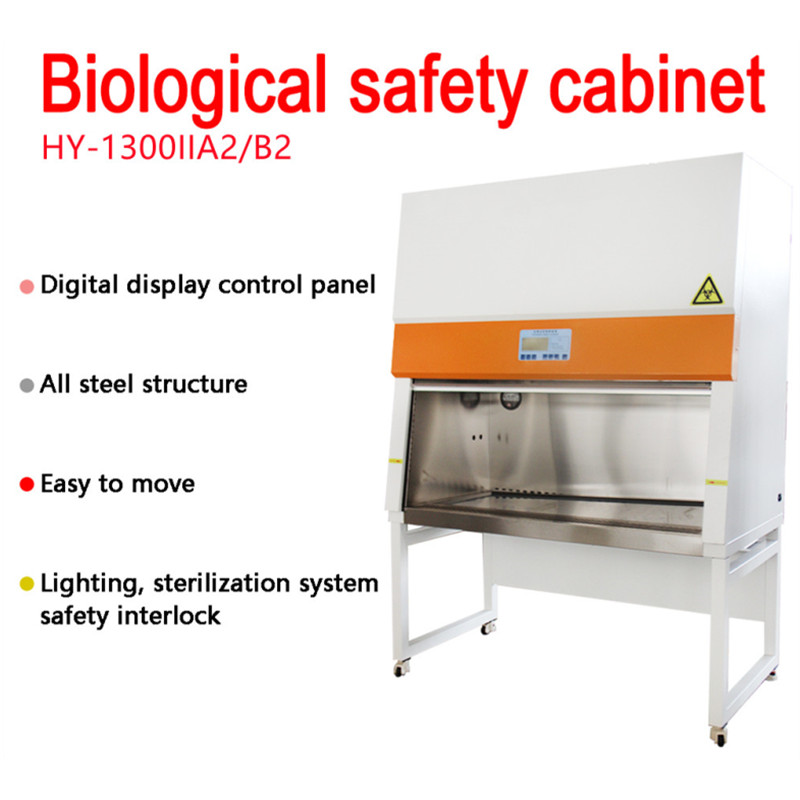

≤65dB(A)HouYuan Class II Clean Biological Safety Cabinet
1. HouYuan Class II Clean Biological Safety Cabinet Features:
♦ Air curtain isolation design prevents internal and external cross-contamination. A2 is 30% air exhaust and 70% internal circulation, B2 is 100% air exhaust, negative pressure vertical laminar flow, no need to install pipes.
♦ Move the toughened glass door up and down, which can be positioned arbitrarily, is easy to operate, and can be completely closed for sterilization, and the positioning height limit alarm prompts.
♦ The working area is equipped with a waterproof power output socket and a sewage interface to provide great convenience for the operator.
♦ A special filter is installed at the exhaust air to control emission pollution.
♦ The working environment is made of high-quality 304 stainless steel, which is smooth, seamless, and has no dead ends. It can be easily and thoroughly disinfected and can prevent the erosion of corrosive agents and disinfectants.
♦ It adopts LCD panel control and built-in UV lamp protection device, which can only be opened when the safety door is closed.
♦ With DOP detection port, built-in differential pressure gauge.
♦ 10° tilt angle, in line with the human body design concept.
2. HouYuan Class II Clean Biological Safety Cabinet Specifications:
| Model | HY-1000IIA2/B2 | HY-1300IIA2/B2 | HY-1600IIA2/B2 | |
| Airflow System | A2 is 30% air exhaust 70% air recirculation, B2 is 100% air exhause | |||
| Cleanliness Grade | Class 100 (US Federal 209E) | |||
| Number of Colonies | ≤0.5pcs/dish·hour (Φ90mm culture plate) | |||
| Average Wind Speed | Inside the door | 0.38±0.025m/s | ||
| Middle | 0.26±0.025m/s | |||
| Inside | 0.27±0.025m/s | |||
| Front Suction Air Speed | 0.55m±0.025m/s (30% air exhaust) | |||
| Noise | ≤65dB(A) | |||
| Vibration Half Peak | ≤3μm | |||
| Power Supply | AC Single Phase 220V/50Hz | |||
| Maximum Power Consumption | 500W | 600W | 700W | |
| Weight | 210KG | 250KG | 270KG | |
| Interal Size (mm) for A2/B2 (W*D*H) | 1040*650*620 | 1340*650*620 | 1640*650*620 | |
| External Size (mm) for A2 (W*D*H) | 1200*800*2100 | 1500*800*2100 | 1800*800*2100 | |
| External Size (mm) for B2 (W*D*H) | 1200*800*2270 | 1500*800*2270 | 1800*800*2270 | |
| High Efficiency Filter Specification & Quantity |
980*490*50*①
520*380*70*①
|
1280*490*50*①
820*380*70*①
|
1580*490*50*①
1120*380*70*①
|
|
| Specification & Quantity of Fluorescent Lamp/UV Lamp | 20W*②/20W*① | 30W*②/30W*① | 30W*②/30W*① | |
3. Company Advantage
a. Series product advantage: Houyuan Medical has different capacity ultrasonic cleaner to meet different clients' demand.
b. OEM and ODM service advantage: Houyuan Medical supply OEM and ODM service;
c. Technical Support: User manual sent with machine, also can offer online technical support.
d. After-sales service: 24 hours online service.
4. FAQ
1. How Can I Choose the Suitable One?
Please Tell Us Your Detailed Requirements by Mail or Online, We Will Recommend the Suitable One As Your Requests.
2. Is Your Price Competitive?
We Make Sure to Offer You the Best Quality with Competitive Price.
3. How Can I Pay?
We Accept Many Payment Methods, Such As T/t, Western Union.
4. When Can I Receive It After Paying?
Normal Models Can Be Delivered within 5-7days. Please Contact Us to Check Transport Time to Your Address.
5. How to Deliver?
We Can Send by Express, by Sea and by Air.
6. Will It Be Broken During Transport?
We Do Standard Export Package.
7. What Should I Do if I Do Not Know How to Use?
User Manual Will Be Sent Together with Machine and You Can Also Contact Us with More Technical Support.
8. What Should I Do if Some Parts Are Broken?
We Have 12 Months Warranty for Main Machine. For Wearing Parts, You Can Buy Them from Us for Replacement.
