illumination :
≥300LXWind Speed :
0.25-0.45m/sPower :
220V/50HZNoise :
≤62dBNumber of Bacteria :
≤0.5per utensil.hour(90mm utensil)Clean Grade :

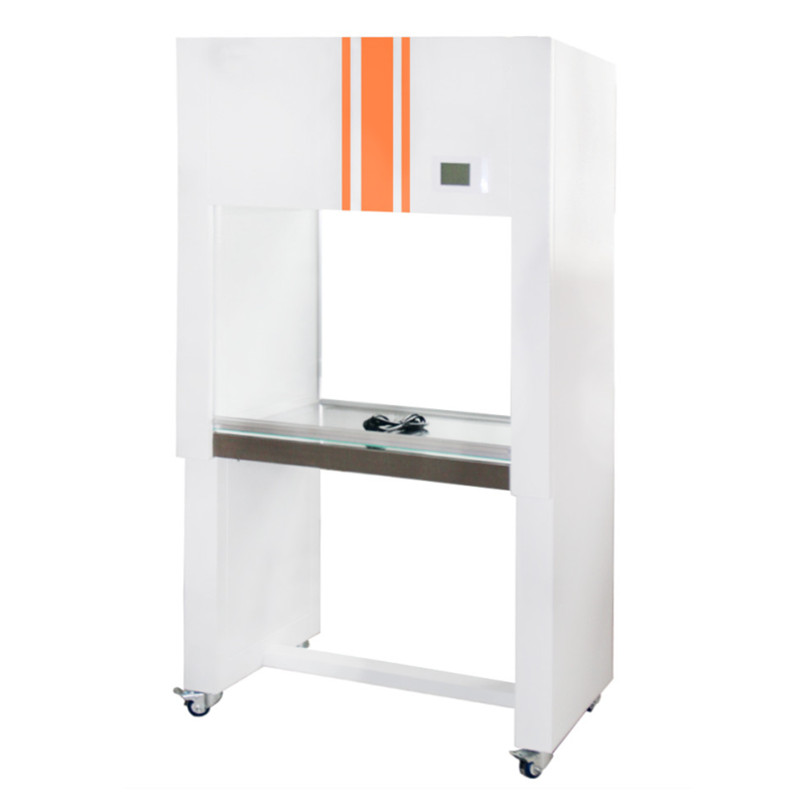

Grade 100 (209 E U.S. Federal)HouYuan Class 100 Laminar Flow Hood For Sale
1. HouYuan Class 100 Laminar Flow Hood Features:
Application:
It is widely used in medicine, pharmacy, biological & chemical experiment, electron, precise apparatus, instrument and so on.
♦ Adopting arbitrary positioning sliding door system;
♦ The shell is welded by cold-rolled plates, the surface is electrostatically sprayed, and the work surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean;
♦ The lighting and sterilization systems are interlocked safely;
♦ Digital display LCD control interface, more user-friendly design;
♦ Equipped with a HEPA filter and a primary filter for preliminary filtration, which can effectively extend the service life of the high-efficiency filter.
2. HouYuan Class 100 Laminar Flow Hood Specifications:
| Model | HY-CJ1G | HY-CJ2G | HY-CJ1D | HY-CJ2D |
|
Air Supply |
Horizontal Air Supply |
Vertical Air Supply |
||
| Cleanliness Grade | Class 100 (US Federal 209E) | |||
| Number of Colonies | ≤0.5pcs/dish * hour (Φ90mm culture dish) | |||
| Noise | ≤62dB (A) | |||
| Power Supply | AC Single Phase 220V/50Hz | |||
| The Average Wind Speed | 0.25~0.45m/s | |||
| Vibration Half Peak |
≤0.5μΜ(x, y, z direction) |
|||
|
Illumination |
≥300LX |
|||
|
Max. Power consumption |
100W |
500W |
100W | 500W |
|
Working Area(W*D*H) |
700*410*580mm |
1150*410*580mm |
700*550*580mm |
1770*510*600mm |
| Overall Dimension(W*D*H) |
860*590*1600mm |
1310*590*1600mm |
860*590*1600mm |
1800*740*1440mm |
| Fluorescent Lamp/UV Lamp |
12W*①/20W*① |
12W*①/30W*① |
12W*①/20W*① |
12W*①/30W*① |
| High Efficiency Filter |
850*565*50*① |
1130*565*50*① |
685*455*50*① |
1135*455*50*① |
|
Applicable Persons |
Single person-single side |
Double person-single side |
Single person-single side |
Double person-single side |
| Note: Non-standard size can be customized. | ||||
3. Company Advantage
a. Series product advantage: Houyuan Medical has different capacity ultrasonic cleaner to meet different clients' demand.
b. OEM and ODM service advantage: Houyuan Medical supply OEM and ODM service;
c. Technical Support: User manual sent with machine, also can offer online technical support.
d. After-sales service: 24 hours online service.
