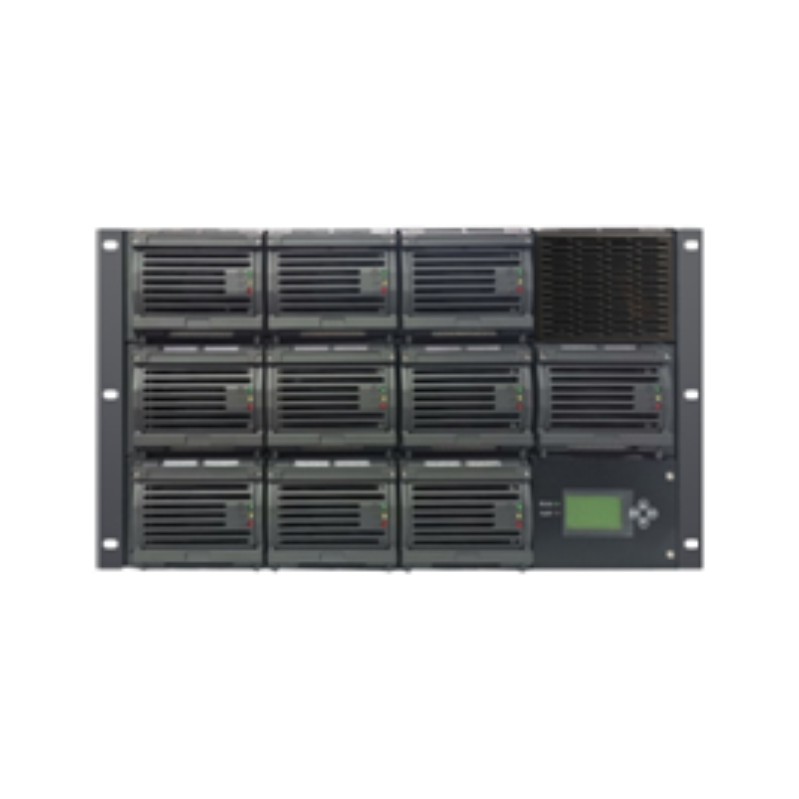

Hot-swappable Module Embedded Rectifier System

ER series adopts 19-inch rack disk redundant design, which is convenient for flexible expansion and provides enough power to meet the requirements of communication systems. It is suitable for power grids such as switches, computer rooms, base stations, satellite communications, data communications, railways and power systems for occasions with a wide fluctuation range, the operation is simple and convenient, and it is easy to install and maintain.
Features and benefits
  • Applications :

    Widely used in communication and industrial fields.
  • Certificates :

    CE, EN61000, IEC60146
  • OEM/ODM Service :

    Yes, customized service available
  • Communication :

    RS485,SNMP
  • Input AC voltage :

    220Vac/110Vac
  • Nominal DC current(output) :

    30A/50A/60A
  • Nominal DC voltage(Output) :

    48VDC/24VDC
Product Details

Technical features:


>Wide input AC voltage range: 90~290Vac;

>Provide 6 sets of passive dry contacts;
>Power factor values up to 0.99;
>With battery management system, with batterytemperature probe;
>Standard 19-inch 2U frame for easy cabinet installation;
>With activity alarm, sound and light form to remindalarm information;
>Have rich LED+LCD status display and alarm signal display and alarm recording functions;
>Ultra-lowradiation: usingadyanced electromagnetic compatibility design;

>Efficiency of the whole machine: 93.2%;
>48V single module output current 50A/30A optional, 24V single module output current 60A, 2U system output current up to 150A, overall current up to 600A;

>Temperature compensation system, which can be set to protect once power off and two times power off;

>The system confifiguration is flflexible, convenient and easy to expand. Various power systems can be confifigured according to customer needs;


System Schematic:

Applications:


Widely used in communication and industrial fifields. All of its communication power technology converts alternating current to direct current to supply power to the DC load, connects the battery pack in the power system to charge the battery pack, and detects the battery pack status. Three hot-swappable rectififier module ports can form an N+1 redundant system to provide fault tolerance for the load. In order to adapt to difffferent external power supply systems, the monitoring system is equipped with 45 difffferent alarm options. The monitoring screen can display current alarm information, query historical alarm information, and support RS485/SNMP remote operation.
