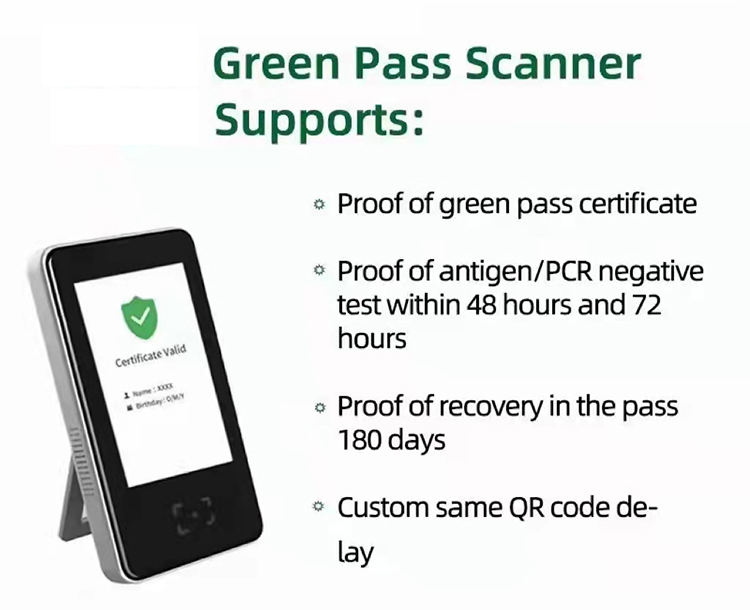

Professional Epidemic Prevention QR Code Scanner HongKong Green Pass Scanner HS-600HK
Using a 5-inch large screen display, the verification and display results are easy to observe, and the alarm sound reminder is more intuitive. The metal shell is fully covered, and multiple assembly holes are designed, which is more convenient for application in various scenarios with different needs. It can be used with access control, gate and other control systems.
Specification
System parameters |
|
Display |
5 inch screen,Resolution 800*480 |
Interface |
MIPI |
WIFI |
2.4GHz IEEE802.11 b/g/n |
Multi-language |
Chinese Traditional, English |
Audio |
Vioce output (Support customize by MP3 file) |
Performance parameters |
|
Image sensor |
CMOS |
DPI(W*H) |
640px * 480px |
2D Symbologies |
Paper, screen QR code |
level:68° vertical:51° diagonal: 84.8° |
|
Sensitivity |
Tilt:±60° rotate:±60° deflection:360° |
Electrical parameters |
|
Power Supply |
5V/2A |
Button RST |
Reset button |
LED indicator |
Blue |
Environmental parameters |
|
Working Temperature |
-10℃ ~ +60℃ |
Relative humidity |
≤95%(No condensation) |
Physical parameters |
|
Interface |
Network*1, Relay alarm/access(open/close)*1, DC power*1 |
Appearance size |
86.8 * 164.6 * 20.6(L * W * D)mm |
Weight |
360g |
Application
Supermarkets, hotels, cafes, food squares, department stores, public security, government and other scenes.
Ordering Information
Product model |
HS-600HK |
|
Package |
D*W*H |
205*105*80(mm) |
Boxing list |
1.Host 2. Power cable 4.Screws 5.Base bracket |
weight |
539g |
||
Package box |
D*W*H |
430*230*435(mm) |
|||
weight |
11.7kg |
||||
Other optional |
1.Fixed bracket 2.Tripod |
Net weight |
10.78kg |
