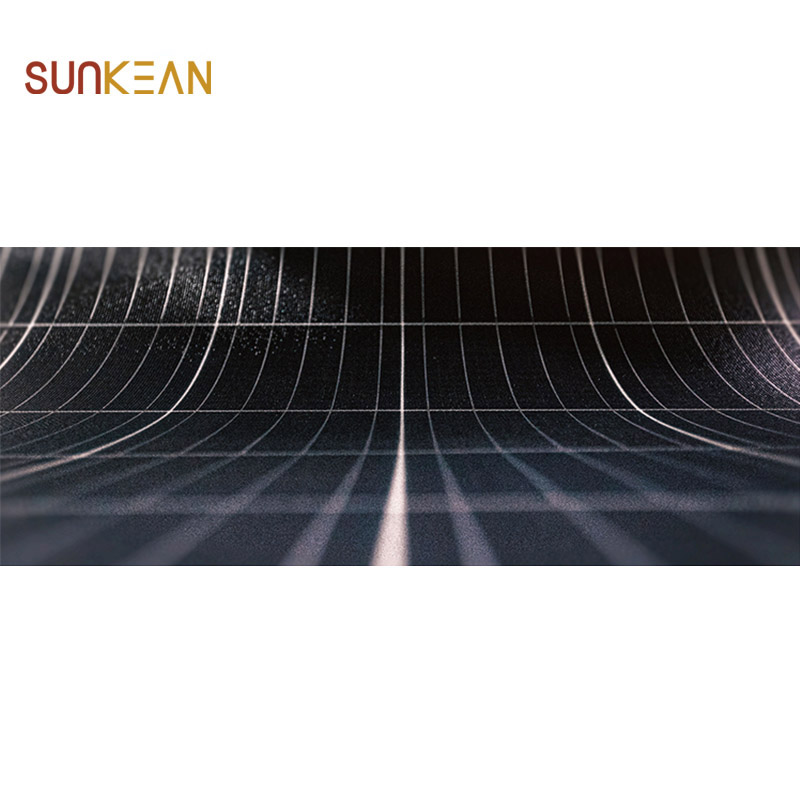

High efficiency 310W outdoor applications flexible solar panel

310W flexible solar panel ultra-light、fast-installation、aesthetic and durable.

Product Details

High efficiency 310W outdoor applications flexible solar panel

310W is frameless and has the most flexibility. It is suited to many innovative cross-market applications.


310M frameless flexible solar panel Characteristics:



Electrical Characteristics:

Module Type
SMF310M-6X10UW
Testing Condition STC
NMOT
Maximum Power (Pmax)
310 233
Maximum Power Voltage (Vmp)
33.3
30.7
Maximum Power Current (Imp)
9.31
7.59
Open Circuit Voltage(Voc)
40.5 37.6
Short Circuit Current(Isc)
9.81 8.04
Module Efficiency (%) 18.4%
Operating Temperature
-40°C to 85°C
Maximum System Voltage
1000V DC (IEC)
Maximum Series Fuse Rating
20A
Application Class
Class A
Power Tolerance
0/+5 W

*STC: Irradiance 1000W/m2 , Cell temperature 25℃, AM=1.5.

  Tolerances of Pmax , Voc and Isc are within ±5%

*NMOT: Irradiance 800W/m2 , Ambient temperature 20℃,AM=1.5, Wind speed 1 m/s.


Mechanical Characteristics:

Solar Cell

Monocrystalline silicon (158.75mm)

No. of Cells

60(6x10)

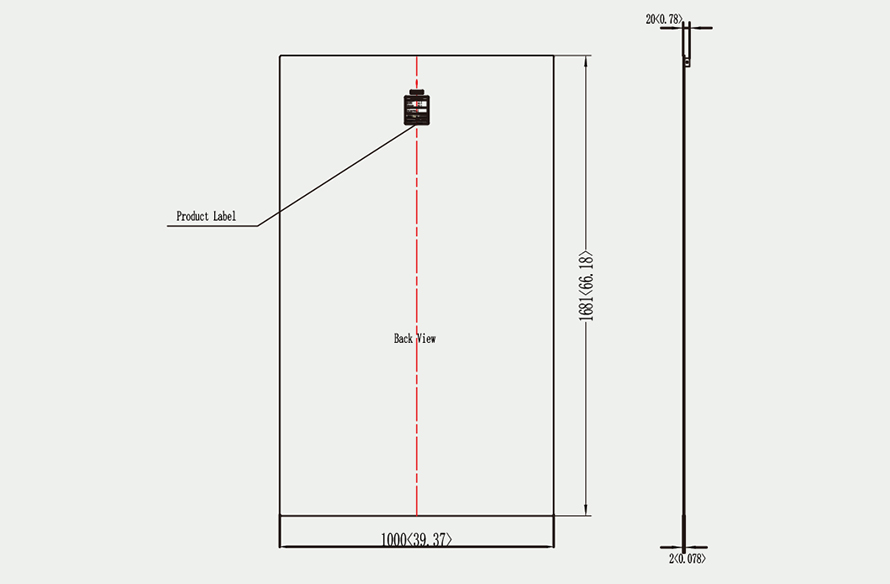

Module Dimensions

1681×1000×2 mm

Weight
5.0 kg

Backsheet

White
Frame

Black Anodized Aluminium Alloy

J-box IP 68 rated

Output Cables

Photovoltaic technology cable 4.0 mm2 , (+)150 / (-)450 mm

Connector

MC4 compatible


Lightweight 310M flexible solar panel Features:

-----Ultra-light: Glass free module weighs 5.0kg, 70% lighter than conventional glass modules.

-----Fast-lnstallation:Through"Quick- Bonding" installation requires no penetration, reduces time on roof by 40% and eliminates the use of mounting hardware.

-----Aesthetic:Seamless integration with underlying installation surface.

-----Durable: eArc is the first glassless module to pass the same durability tests as conventional glass modules, including IEC 61215:2016, lEC61730:2016 and UL1703 (USA). eArc has also passed PID, salt mist and ammonia corrosion tests.


Solar panel production process:


Packing & Delivery:

Half Cell Pv Modules


Application Scenario:


Company Profile:

SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover Mono perc solar panel,house solar power system, home solar panel , PV connectors, 100 watt solar panel, photovoltaic inverter etc solar products .

SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.


If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
