1.Model NO:AL-20201110-06
2.Product Name: Installation PV Concrete Piles Underpinning
3.Material:Q235B,Q195 Steel
4.Surface Treatment:Hot dip galvanizing
5.Application: Solar mounting system,fence, wooden house
6.Certificates:ISO9001,ISO1461-1999
7.Production Capacity: 1,000,000 Piece/Pieces per Month
8.Lead Time:10-15 days.
9.MOQ:100 pcs

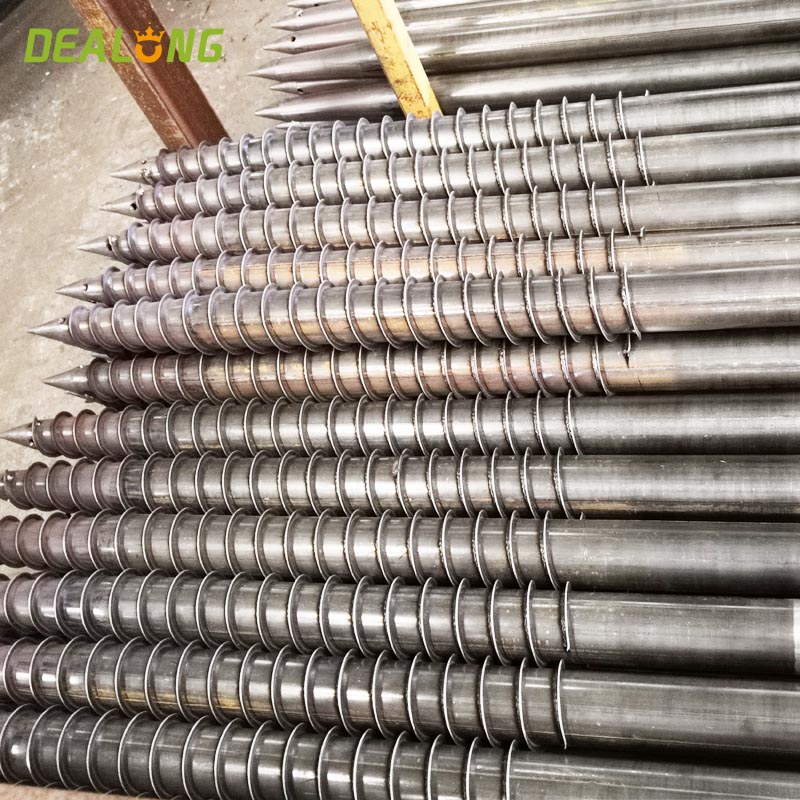

Piles Underpinning come with a durable hot dipped galvanized coating that will protect ground screws from corrosion.
Normal ground screw with flange
Item NO.
Length(mm)
Dia.of flange(mm)
Minium galvnized thickness (um)
OD(mm)
Thickness of tube(mm)
Remarks(mm)
F76-1200-T3
1200
200，T8.0
＞80
76
3（tolerances±0.25）
spiral piece Spec.12*T2
F76-1400-T3
1400
200，T8.0
＞80
76
3（tolerances±0.25）
spiral piece Spec.12*T2
F76-1600-T3
1600
200，T8.0
＞80
76
3（tolerances±0.25）
spiral piece Spec.12*T2
F76-1800-T3
1800
200，T8.0
＞80
76
3（tolerances±0.25）
spiral piece Spec.12*T2
F76-2000-T3
2000
200，T8.0
＞80
76
3（tolerances±0.25）
spiral piece Spec.12*T2
F76-2400-T3
2400
200，T8.0
＞80
76
3（tolerances±0.25）
spiral piece Spec.12*T2
F76-2500-T3
2500
200，T8.0
＞80
76
3（tolerances±0.25）
spiral piece Spec.12*T2
F76-3000-T3
3000
200，T8.0
＞80
76
3（tolerances±0.25）
spiral piece Spec.12*T2
22F76-1600-T3
1600
200，T8.0
＞80
76
3（tolerances±0.25）
spiral piece Spec.12*T2
22F76-1800-T3
1800
200，T8.0
＞80
76
3（tolerances±0.25）
spiral piece Spec.12*T2
22F76-2000-T3
2000
200，T8.0
＞80
76
3（tolerances±0.25）
spiral piece Spec.12*T2
22F76-2100-T3
2100
200，T8.0
＞80
76
3（tolerances±0.25）
spiral piece Spec.12*T2
22F76-2400-T3
2400
200，T8.0
＞80
76
3（tolerances±0.25）
spiral piece Spec.12*T2
22F76-2500-T3
2500
200，T8.0
＞80
76
3（tolerances±0.25）
spiral piece Spec.12*T2
22F76-3000-T3
3000
200，T8.0
＞80
76
3（tolerances±0.25）
spiral piece Spec.12*T2
Note: Shuangheng offers different type of ground screw based on different installation conditions,dimension can be customized.
Production process of ground screws
Ground screws application
Ground screws have a wide variety of application,not only for solar mounting system foundation, but also for light industrial projects, wooden structures to fencing, streetlinghts and storage containers, etc. Install into ground without concrete save your labor and material cost, and its environment friendly and recycle.
