Handheld Barcode Scanner

iDPRT 2D handheld barcode scanner,new generation imaging technology, greatly speed up your scanning.
The most cost-effective handheld scanner with fast scanning and damage barcode reading ability. OEM project or ODM project with private logo is acceptable with the MOQ requirement.

Request A Quote

Product Details

Product Information:

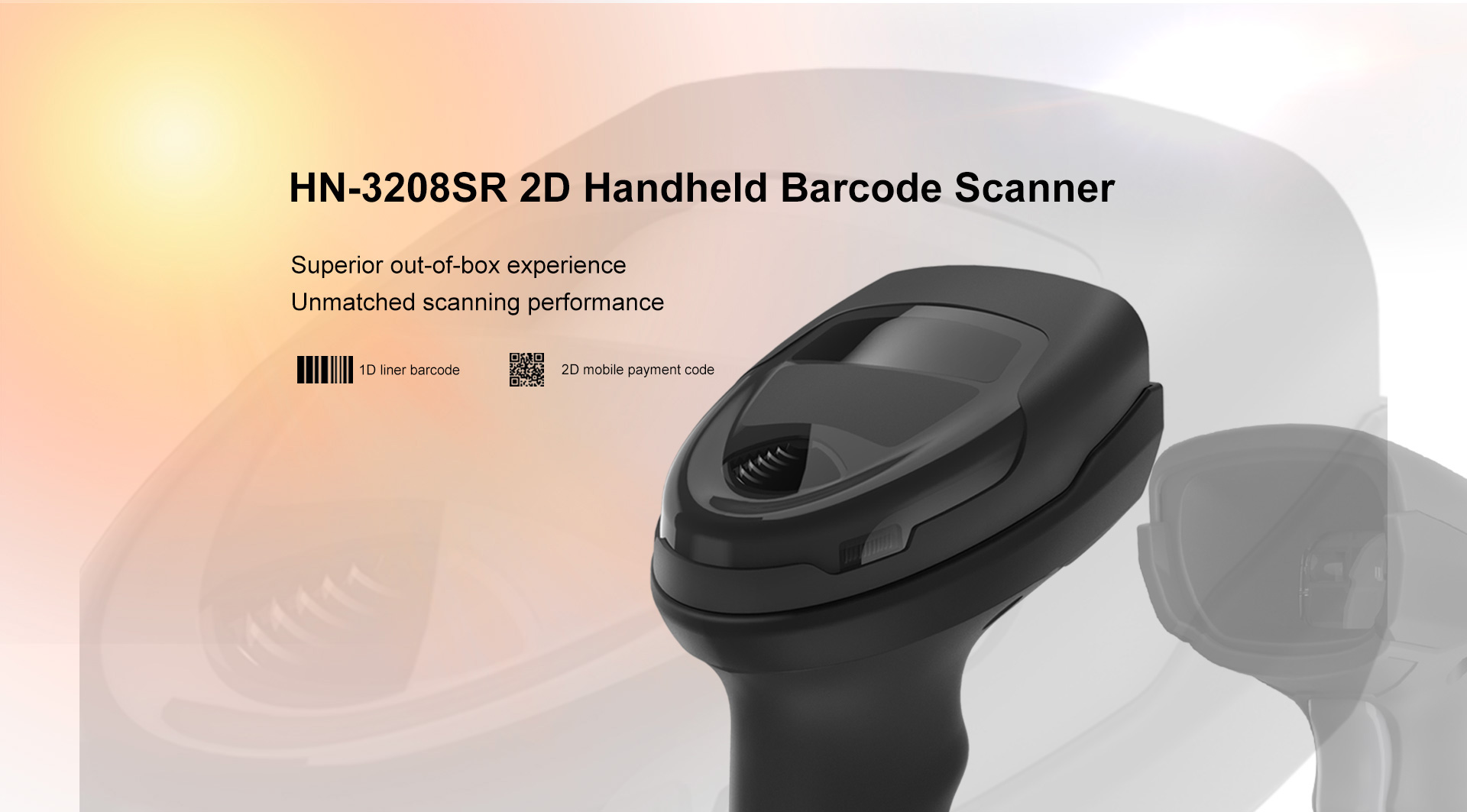

Model: HN-3208SR Handheld 2D Barcode scanner

Product Features：

The adoption of the latest master chip and imaging scanning technology has greatly improved the decoding speed of bar codes;
Smart red light replacement and sighting AIDS for a comfortable and convenient scanning experience;
The hardware adopts a highly integrated design scheme that guarantees the durability of the product in all directions;
Plug-and-play interface design, which can be quickly used in conjunction with other mainframe equipment;
ergonomic shell design with better grip;

Product Advantages:

All-round Scanning Capability Durability

Declassify Highly-distorted Barcodes

Trendy&Elegant Design

Rugged and Durable Construction

Product Specification:

Model	HN-3208SR
Image Sensor	CMOS
Pixel	640x480
Illumination	Infrared LED
Focus	Infrared LED
Symbologies	2D: PDF417,QR Code,Data Matrix,HanXin,
	Maxicode,Postal Codes etc 1D: Code128,
	UCC/EAN-128,AIM128,EAN-8,EAN-13,
	ISBN/ISSN,UPC-E,UPC-A,Interleaved 2 of,
	5,ITF-6,25,Code39,Codabar,Code 93,Code,
	11,Plessey,ITF-4,Matrix 2 of5,Industrial,25,
	Standard MSI-Plessey,RSS-14、RSS-,Limited、
	RSS-Expand etc.
Resolution	≥ 3mil
Typical DOF	5mil Code39:20mm–150mm 13mil
	EAN:30mm–300mm6.7mil PDF417:
	25mm–130mm 10mil DM：15mm–100mm
	20mil QR： 15mm–210mm
Recognition Sensitivity	Pitch±60º Tilt360º Skew±60º
FOV	Horizontal: 32 ° , vertical: 25 °
Symbol Contrast	≥ 20%
Dimension(mm)	83（D）67（W）175（H）
Weight	128g
Scanner Interface	RJ-45 crystal head
Housing Materials	PC+TPU
Notification	Buzzer, LED Indicator
Interfaces	RS-232 Serial Port, USB, USB
Interfaces	Virtual Serial Port
Trigger Method	Manual keystroke, induction recognition,
Trigger Method	continuous recognition
Operating Voltage	5VDC±10%
Operating Current	Standby：100mA；Work：230mA
Power	Standby： 0.5W； Work：1.15W
Operating Temperature	-20 ℃ ~+50℃
Storage Temperature	-40℃ ~+70℃
Relative Humidity	5%~95%（No Condensation）
ESD	±15 kV Air Discharge,±8 kV Direct Discharge
Anti-shock Ability	1.5 m
Protection Grade	IP42
Certification	CE, FCC, RoHS
Cable	USB: use to connect the scanner to
	the information receiving host
	RS-232: use to connect the scanner
	to the nformation receiving host
AC Adapter	5V, coordinate with RS-232
AC Adapter	cable to power the scanner
Test Condition	Environment temperature: 23ºC Environment
	illumination: 300LUX filament lamp DOF
	depends on the resolution, contrast of the
	printing codebar, and the environment
	illumination
