GROWATT SPF5000TL HVM PV Inverter Off-grid

GROWATT SPF 3000~5000TL HVM series off grid solar inverter is integrated with a MPPT solar charge controller. Transformerless design reliable power conversion in compact size.

Features and benefits

Certificate :
All
Size :
130/350/455mm
Output Type :
Single Phase
Warranty :
2 years

Request A Quote

Product Details

GROWATT SPF 3000~5000TL HVM Off-grid Inverter

* Integrated MPPT charge controller

* Battery charging priority can be set

* Load supply priority can be set

* Optional WIFI/ GPRS remote monitoring

* Parallel operation up to 6 units only available for 4-5KVA

Single phase to three phase

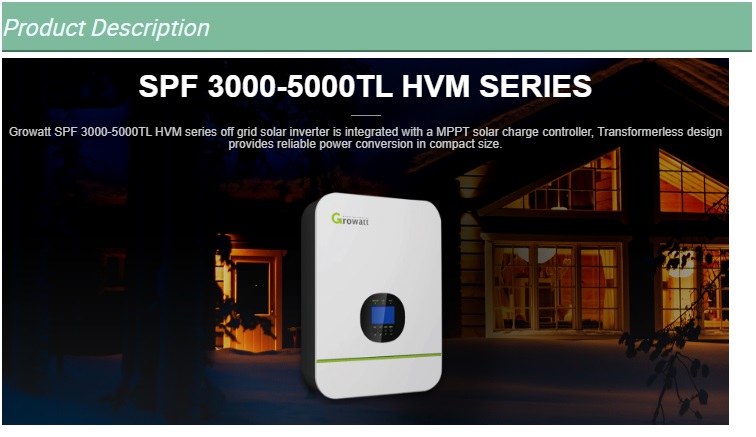

48v 230v inverter

Datasheet	SPF 3000TL HVM	SPF 5000TL HVM
Battery voltage	24VDC	48VDC
INVERTER OUTPUT
RATED POWER	3000VA/ 3000W	5000VA/ 5000W
Parallel Capability	No	Yes, 6 units
AC Voltage Regulation (Battery Mode)	230VAC ± 5% @ 50/60Hz	230VAC ± 5% @ 50/60Hz
Surge Power	6000VA	10000VA
Efficiency (Peak)	93%	93%
Waveform	Pure sine wave	Pure sine wave
Transfer Time	10 ms (For Personal Computers); 20 ms (For Home Appliances)
SOLAR CHARGER
Maximum PV Array Power	1000W	4500W
MPPT Range @ Operating Voltage	30VDC ~ 80VDC	60VDC ~115VDC
Maximum PV Array Open Circuit Voltage	100VDC	145VDC
Maximum Solar Charge Current	50A	80A
Maximum Efficiency	97%	97%
Standby Power Consumption	2 W	2 W
AC CHARGER
Charge Current	30A	60A
AC Input Voltage	230 VAC	230 VAC
Selectable Voltage Rang	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
PHYSICAL
Dimension (D/W/H) in mm	120/315/390	130/350/455
Net Weight (kgs)	8	14.5
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C - 60°C
