Ground Screw Mounting Structure

FOENAN Ground Screw Mounting Structure can work with concrete base or ground screw depending on different soil condition.

Features and benefits

Brand :
FOEN

Request A Quote

Product Details

Ground Screw Mounting Structure

Ground Screw Mounting Structure can work with concrete base or ground screw depending on different soil condition.

Technical Data

Material	AL 6005-T5/SUS304/Q235B
Surface Treatment	AverageAnodizing Coating Thickness≥12μmAverage Hot-galvanized Coating Thickness≥ 65μm
Panel Type	Framed & Frameless
Wind Load	≤60m/s
SnowLoad	1.4KN/m2
Panel Orientation	Landscape/Portrait
Tilt Angle	0°~60°
Seismic Load	Lateral seismic factor: Kp=1; seismic coefficient: Z=1; Use coefficient: I=1
Standards	JIS C 8955 : 2017 AS/NZS 1170 DIN1055 ASCE/SEI 7-05 International Building Code: IBC 2009
Warranty	15years qualitywarranty, 25years life span warranty

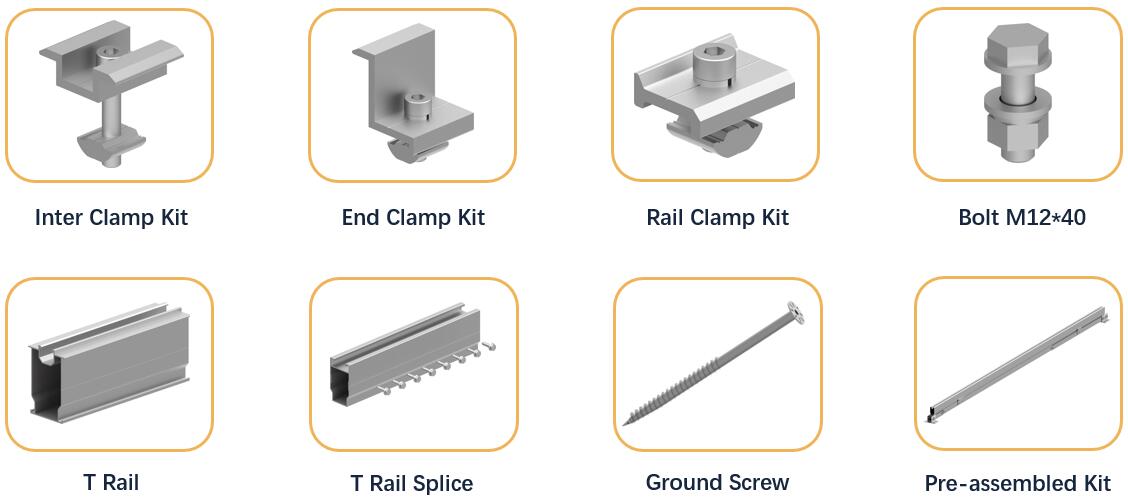

Component List

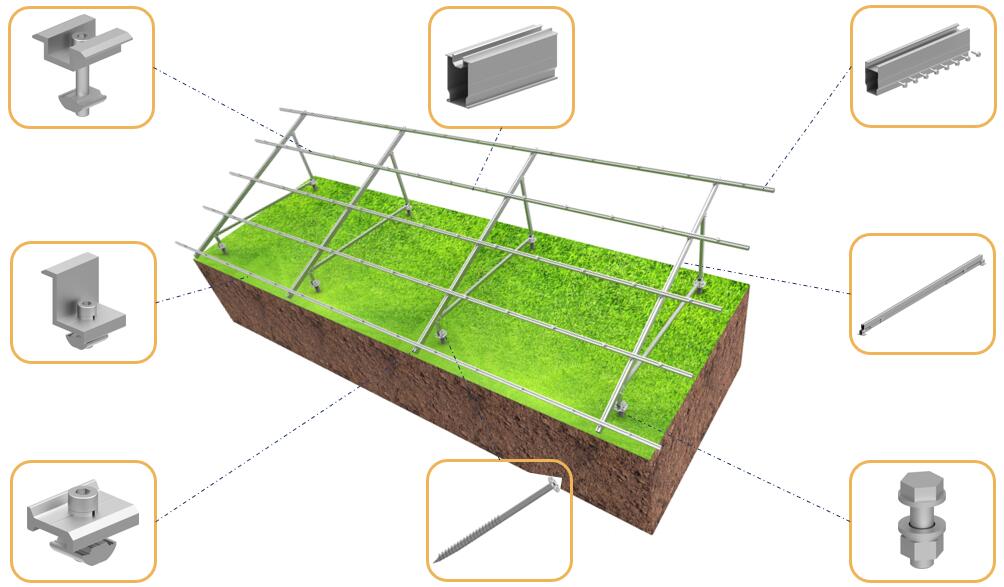

System Overview

Advantages

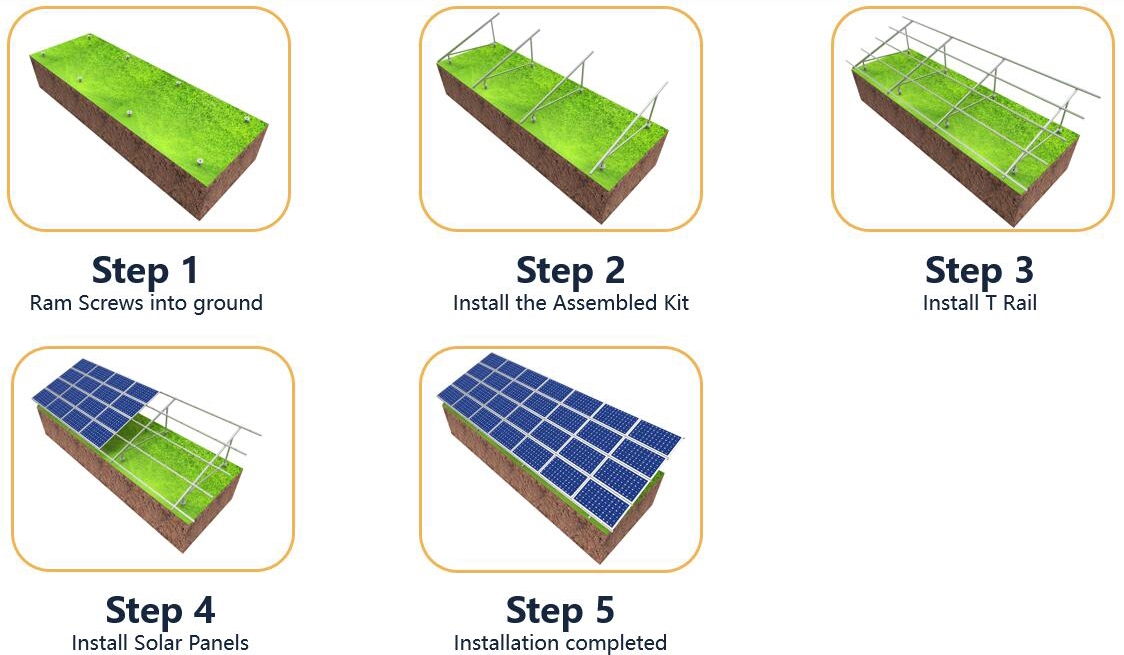

1.Quick Installation: Highly pre-assembled before shipment, save your onsite labor cost

2.Adjustable Structure: Can be adjusted in both landscape and portrait direction, making the system being compatible in certain rugged terrain

3.15 Years Warranty: 15 years' warranty, 25 years' life span
