Warranty :
10 YEARSCertificate :

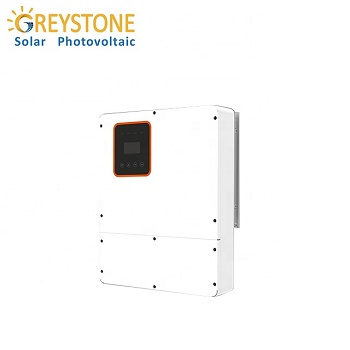

UL,TUV,CE,IECGreystone PV 8kw Hybrid Solar System with Battery Storage

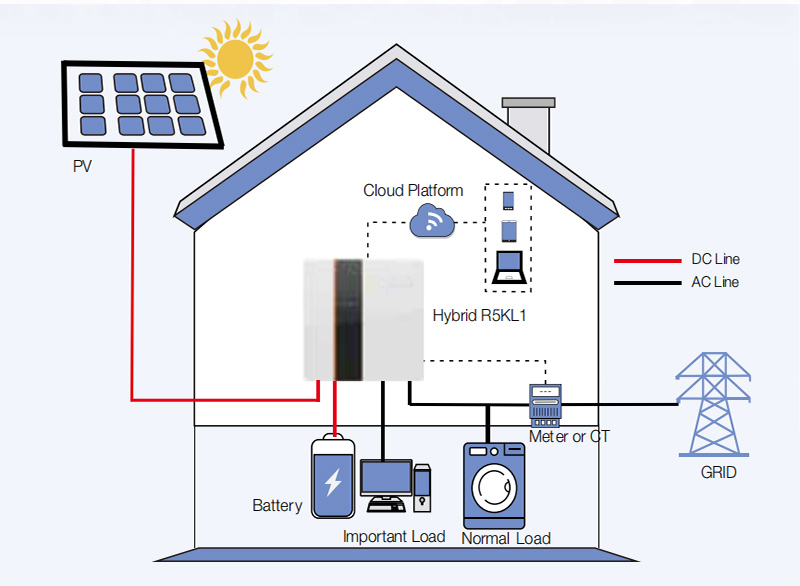

System Wiring Diagram
|
Technical Details
|
8kw Hybrid Solar Power System Configuration List |
|||
| Item | Model | Description | Quantity |
| 1 | Solar Panel |
370W half-cell mono solar panel |
21pcs |
| 2 |
DC Combiner Box |
8KW,220V | 1pc |
| 3 | Deep Cycle Battery | 12V,200AH | 18pcs |
| 4 | Hybrid Inverter | 5KW,220V AC | 1pc |
| 5 | Mounting Supporrt | Roof/Ground | 1set |
| 6 | PV Cable | 10mm² PV cable | 40m |
| 7 | Connector | MC4 | 5 pairs |
 |
>Perc/Bifacial/Shingled solar panels are available. >25-year linear warranty. >High transmissivity,low-iron tempered glass. >Class A,tested in TUV.
|
|
>120V/220V AC voltage. >10kw Power. |
 |
 |
>Maximum efficiency up to 98.2%
>4 independent MPPT design, making full use of light energy in different directions.
>Distributed virtual power station management node.
>Remote monitoring of computers and mobile phones.
|
|
>2V,12V Gel Battery. >48V lithium battery is available. >50%DOD,1422 circle times. |
 |
 |
>PV Cable 4mm ² 6mm ². >AC Cable. >Length can be customized. |
|
>Tile Roof /Metal Roof/RC Roof is available. >Solar Carport Solution
|
 |
Packing&Delivery
Factory
 |
 |
 |
 |
Certicification
FAQ
|
1. What about the quality of the mounting support? 2.Are your Hybrid solar system certifications complete? A:Sure,We have exported hybrid systems to more than 30 countries, covering Europe, America, Asia, Africa and Australia. The certification is very complete .
3. What if the power generation system shows abnormal power output? A: 1. whether the module is over-matched 2. whether the module is shaded 3. whether the module is abnormal 4. whether the module orientation and inverter working mode 5. whether the grid connection distance is appropriate. 4.The advantages of home photovoltaic system? A: Solar photovoltaic power generation performance is stable and reliable, with a service life of more than 25 years; Small investment, big income; zero pollution; Low maintenance costs. 5.How do your company deal with the problem on quality? A:Our company has been doing this industry for more than 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
|
