Certificate :
TUV, CE, IEC,Warranty :
25 years linear warrantyMonocrystalline PERC black frame Singled solar Panel
Product Details
Product Specification
| MECHANICAL CHARACTERISTICS | ||||||
| Solar Cells | Monocrystalline silicon | |||||
| NO. of Cells | 360(36*10) | |||||
| Dimensions | 1646*1140*35mm | |||||
| Weight | 20.5kg | |||||

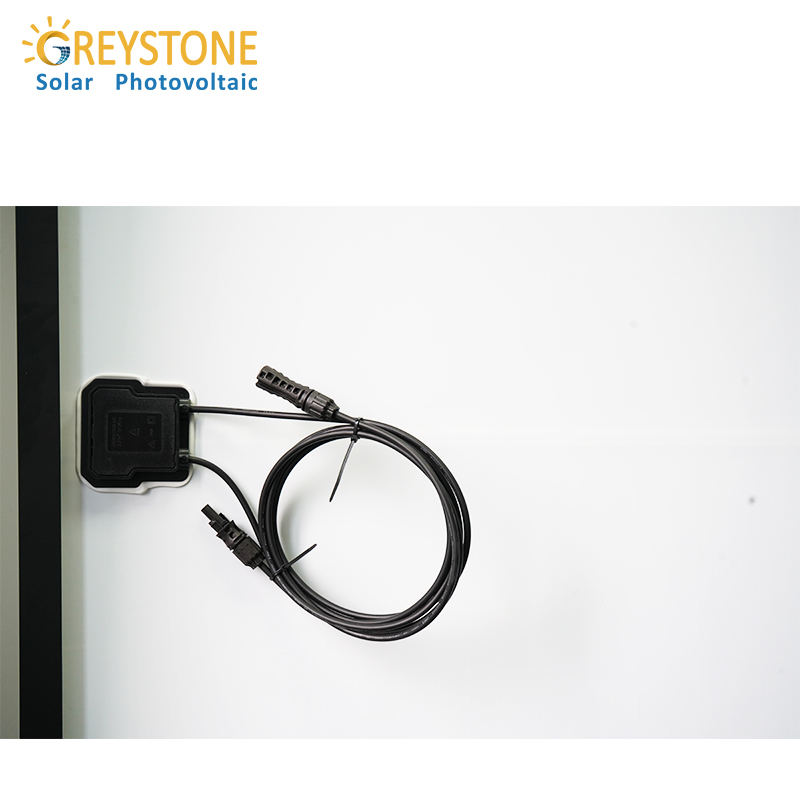

| Junction Box | IP68, two diodes | |||||
| Front Glass | AR coating tempered glass, 3.2mm | |||||
| Frame | Anodized aluminum profile | |||||
| Output Cables | 4.0mm²,800mm（Be customized by customers） | |||||
| Connectors | MC4 | |||||
| ELECTRICAL PARAMETERS | ||||||
|
|
400 | 395 | 390 | 385 | 380 | 375 |
| Rated Maximum Power (Pmax) [Wp] | 400 | 395 | 390 | 385 | 380 | 375 |
| Open Circuit Voltage (Voc) [V] | 49.5 | 49.4 | 49.3 | 49.3 | 49.1 | 48.9 |
| Short Circuit Current (Isc) [A] | 10.12 | 10.07 | 10.03 | 9.98 | 9.93 | 9.89 |
| Maximum Power Voltage (Vmp) [V] | 41 | 40.9 | 40.8 | 40.8 | 40.6 | 40.4 |
| Maximum Power Current (Imp) [A] | 9.76 | 9.66 | 9.56 | 9.44 | 9.36 | 9.28 |
| Module Efficiency [%] | 21.3 | 21.1 | 20.8 | 20.5 | 20.3 | 20 |
| Working Temperature [°C] | -40°C ~ +85°C | |||||
| Maximum System Voltage | DC 1500 /1000 (IEC) | |||||
| Maximum Series Fuse Rating | 20 | |||||
| Application Class | Class A | |||||
| Maximum Surface Load Capacity[Pa] | 5400 | |||||
Difference
 |
 |
| Different welding methods | When shaded by shadow,shingled modules have the best output power if the shingled modules are installed vertically. |
Projects
FAQ
Q1:What is the MOQ?
A1: A pallet if we have stock.But we recommend you to order a 20ft container because of the high sea freight
Q2: What about the lead time?
A2: Sample needs 10 days, mass production needs 2-3weeks.
Q3: What’s the warranty?
A3: Our solar panels are assured with 12 years product warranty, and 25 years linear power warranty.
Q5: How can I contact you?
A5: Pls feel free to leave a message on our website, any question will be answered asap.
