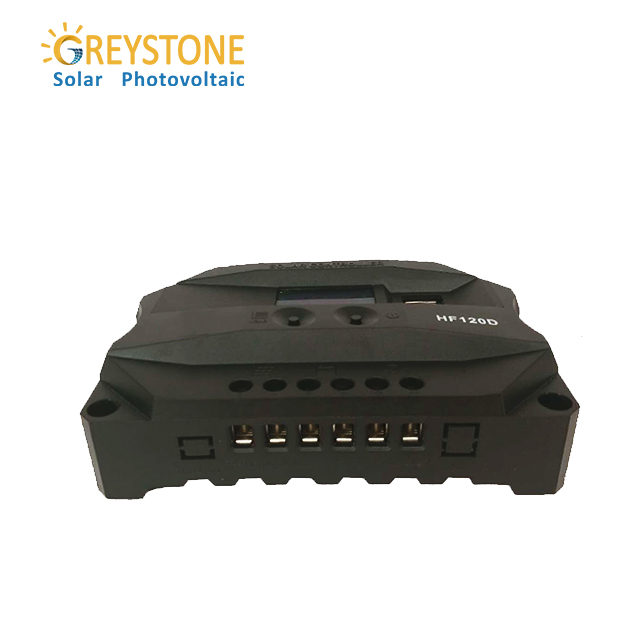

Greystone Compact PWM Solar Charge Controller


The industry design of HF1 series solar charge controller makes this series controllers different from traditional controllers, makes it have more advantage than traditional controllers in mass production.Combine with the revolutionary design of dispassion plate,this series controllers' structure become more compact, at the same time without lose any function of traditional controllers.




Features and benefits
  • Certificate :

    CE, RoHS, FCC
  • Warranty :

    3
Product Details

Greystone Compact PWM Solar Charge Controller


Product Description


Advantages


1. High efficient PWM charging.

2. Use MOSFET as electronic switch.

3. LED indicators indicate battery voltage state.

4. Automatic detection of voltage.

5. Temperature compensation.

6. Widely used,simple operation.

7. USB 5V/1A out put,charge the electronic devices.

8. DC12V output.

9. High voltage disconnection,high voltage recovery.

10. Low voltage disconnection,low voltage recovery.

11. Overload protection,short circuit protection.

12. Solar panel,battery reverse polarity protection.

13. Reverse current protection at night.

14. Overheat protection and short circuit protection of USB output.






Equipment Parameters

Product Name
GS-HF1         Style
PWM Charge Controller
Brand
Greystone Colour
Black
Material
Plastic
Packing Packed in carton and Shockproof
Gross Weight 175/230/327/627/696g Mode Name
HF1 Series

Model
HF110D HF120D HF130D HF150D HF160D
PV voltage
≤50V
Rated Charge current
10A 20A 30A 50A 60A
Rated system voltage
12V/24V Auto
Rated Discharge current
10A 20A 30A 50A 60A
Charge mode
PWM Multi-stage(bulk, absorption, float)
Float charge voltage
13.8V(13V~15V)×1/×2
Absorption voltage
14.4V(13V~15V)×1/×2, (lasting:2hrs)
LVD voltage
10.7V(10V~14V)×1/×2
LVR voltage
12.6V(10V~14V)×1/×2
HVD voltage 16.0V×1/×2
HVR voltage
15.5V×1/×2
Working mode for load
light control, time&light control, normal mode
Light control voltage
5V(1V~10V)×1/×2
Charge circuit voltage drop
<0.3V
<0.3V
Discharge circuit voltage drop
<0.18V
<0.2V
No load loss
≤12mA(12V),≤14mA(24V)
≤13mA
USB output
5V/1A
Battery type
GEL,SLD,FLD,Usr(自定义/default)
Installing cable size
≤6mm² ≤10mm²
≤16mm²
≤25mm²
Working temperature
-10℃~50℃
Dimension

130×75×38

(mm)

140×85×42.5

(mm)

160×95×45

(mm)

188×120×51

(mm)

Weight
175g 230g 327g 627g 696g


Model
HF110 HF120
Rated current 10A 15A 20A
Rated voltage 12V/24V
Charge mode PWM
Float charge voltage 13.8V/27.6V
Absorption voltage 14.4V/28.8V(lasting:2hrs)
LVD voltage 10.8V/21.6V
LVR voltage 12.6V/25.2V
Overload protection voltage

≥1.2×rated current,60s

≥1.5×rated current,10s

≥1.8×rated current,0.2s

USB output 5V/1A
Circuit voltage drop <0.3V/<0.18V
No load loss 12mA(12V),≤14mA(24V)
Installing cable size 6mm²
≤10mm²
Working temperature -20℃~50
Dimension

130×75×38(mm)

140×85×42.5(mm)

Weight 175g
230g




Factory and Delivery


FAQ



1. Q: How can I contact you if I have a problem?

    A: There is contact information at the bottom of our website, so feel free to contact us if you have any questions.


2. Q: Do you have the relevant certificates to prove that you have quality assurance?

    A: We can show you any relevant qualification certificate, and contact the after-sales service to answer any questions for you.


3. Q: Is the HF1 series different from other series?

    A: The industry design of HF1 series solar charge controller makes this series controllers different from traditional controllers,

        makes it have more advantage than traditional controllers in mass production.Combine with the revolutionary design of dispassion

        plate,this series controllers' structure become more compact, at the same time without lose any function of traditional controllers.


4. Q: What is the role of LCD?

    A: The HD vivid LCD allows you to observe the working status and data of the controller more clearly.
