| Configuration | Model | GL-U2 | ||||||
| CPU | Intel Celeron J1800/J1900/I5 (optional) | |||||||
| RAM | DDR3 2G/4G/8G(optional) | |||||||
| Hard disk | mSATA SSD 32G/64G/128G(optional) | |||||||
| O.S. support | Windows 7/8/10/Linux (optional) | |||||||
| MSR | (optional) | |||||||
| Speaker | 2W *2 | |||||||
| Display | Screen Type | 15.6 inch LCD,LED Backlight | ||||||
| 2nd Displays | LED 8 Customer display/VFD Customer display/12.5 inch LCD screen/15.6 inch LCD screen (optional) | |||||||
| Touch type | Capacitive touch screen | |||||||
| Resolution | 1366(RGB)*768,XGA/1920(RGB）*768，FHD(optional) | |||||||
| Aspect Ratio | 16:9 | |||||||

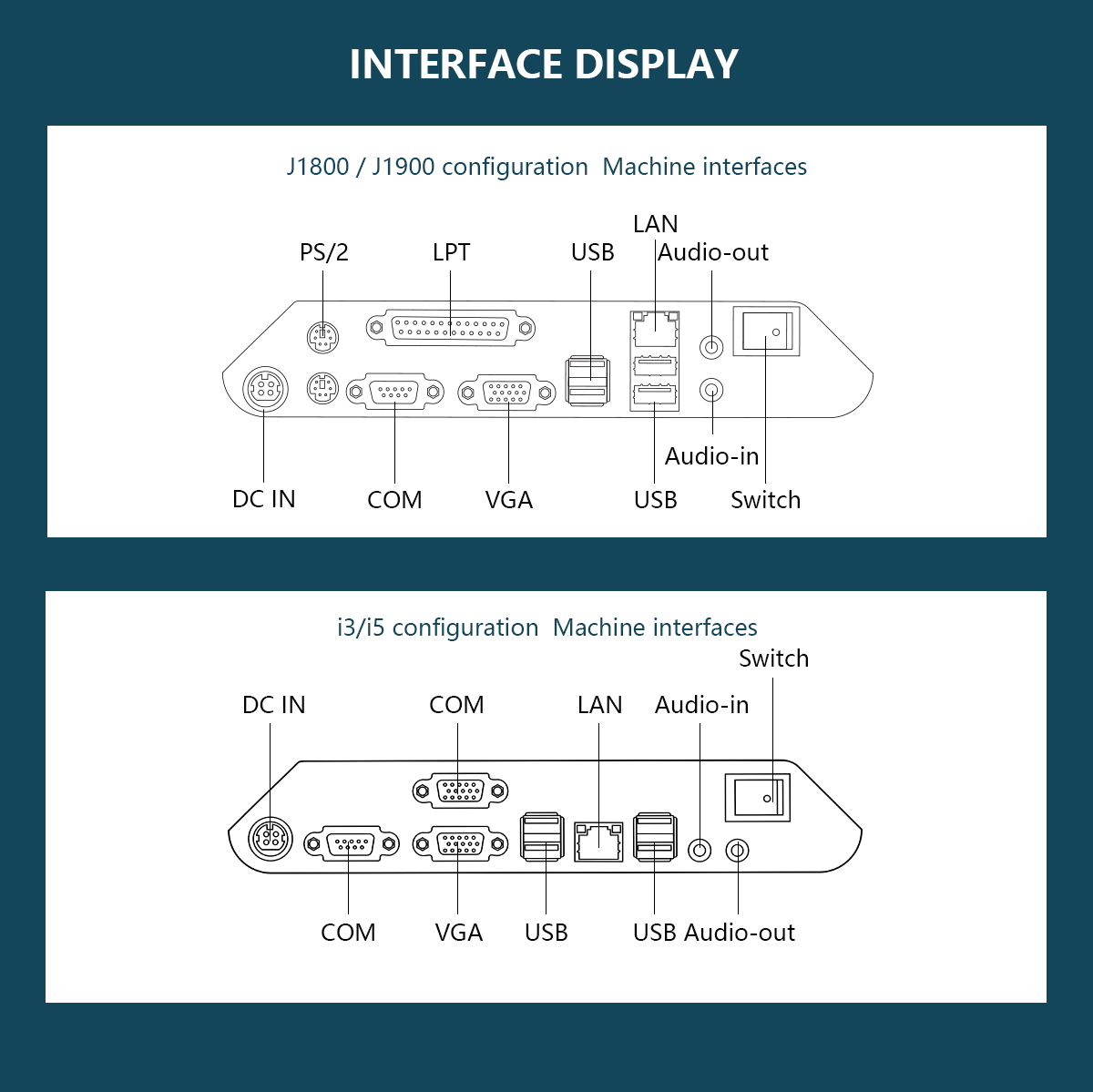

| Interface | Audio | Audio-out *1 | ||||||
| LAN | RJ45 *1 | |||||||
| USB | USB 2.0*5; USB 3.0 *1 | |||||||
| Display | VGA*1 | |||||||
| COM | RS232*2 | |||||||
| Power DC-IN | 12V 4PIN *1 | |||||||
| Weight | Single screen with guest display | 6.15KG | ||||||
| No guest display on single screen | 5.85KG | |||||||
| Double screen 15.6+15.6 | 8.06KG | |||||||
| Double screen 15.6+11.6 | 6.6KG | |||||||
| Size | Single screen | 46*26.5*41.5(CM) | ||||||
| Double screen | 46*32*51.5(CM) | |||||||
