F3N-30 series F3N-40TN/DN20-N /N2/P/P2 Square proximity sensor Front induction

F3N-40TN20-N horizontal detector 20mm metal inductive proximity sensor switch IP67 water-proof


Product Details




 F3N-40TN/DN20-N /N2/P/P2 Square proximity sensor Front induction
Quick Details
Model Number:
F3N-40TN/DN20-N/N2/P/P2 R2M
Type:
Inductive Proximity Sensor
Place of Origin:
Hunan, China
Brand Name:
F&C
Usage:
Metals detection
Theory:
Inductive sensor, Inductance Sensor
Output:
NPN or PNP, Switching Transducer
Description:
Inductive proximity sensor
Product name:
horizontal detector 20mm metal inductive proximity sensor switch IP67
Detection mode:
NPN.NO NC/ PNP.NO NC
Induction Method:
front detection
Detection distance:
20mm
Frequency:
600Hz
Standard sensing object:
60*60*1(iron)
Material:
ABS/PBT
metal inductive switch:
metal inductive switch
F3N-40TN20-N horizontal detector 20mm metal inductive proximity sensor switch IP67 water-proof




F3N-40TN20 Big rectan Proximity sensor F3N-40TN20-N R2M
F3N-40TN20-N/D R2M
NPN.NO ▆▆ ▆ 20mm Max 60×60×1(iron) φ4.2×2M/3-wires
F3N-40TN20-N2 R2M
F3N-40TN20-N2/D R2M
NPN.NC
F3N-40TN20-P R2M
F3N-40TN20-P/D R2M
PNP.NO
F3N-40TN20-P2 R2M
F3N-40TN20-P2/D R2M
PNP.NC

Small metal inductive switch
Induction Direction Model
Front induction F3N-40TN20-N R2M
F3N-40TN20-N2 R2M
F3N-40TN20-P R2M
F3N-40TN20-P2 R2M
F3N-40TN20-B R2M
F3N-40TN20-B2 R2M
Detection distance 20mm
Recommand distance 16mm
Standard sensing object  60*60*1(iron)
Response frequency 600Hz
Hysteresis  no more than 10% Detection distance
Operating voltage 12-24VDC 10%/(customize 5V)
Current consumption less than 10mA
Load current 24V 100mA Max
Leakage current less than 0.01mA  No-load
Residual voltage less than 1.0VDC
Operating Temperature -25 TO +70
Waterproof degree IP67
Material ABS/PBT
Wiring method
φ4×2M/3-wires
φ4×2M/2-wires

F3N-40TN20-N horizontal detector 20mm metal inductive proximity sensor switch IP67 water-proof

F3N-40TN20-N horizontal detector 20mm metal inductive proximity sensor switch IP67 water-proof

F3N-40DN20-N

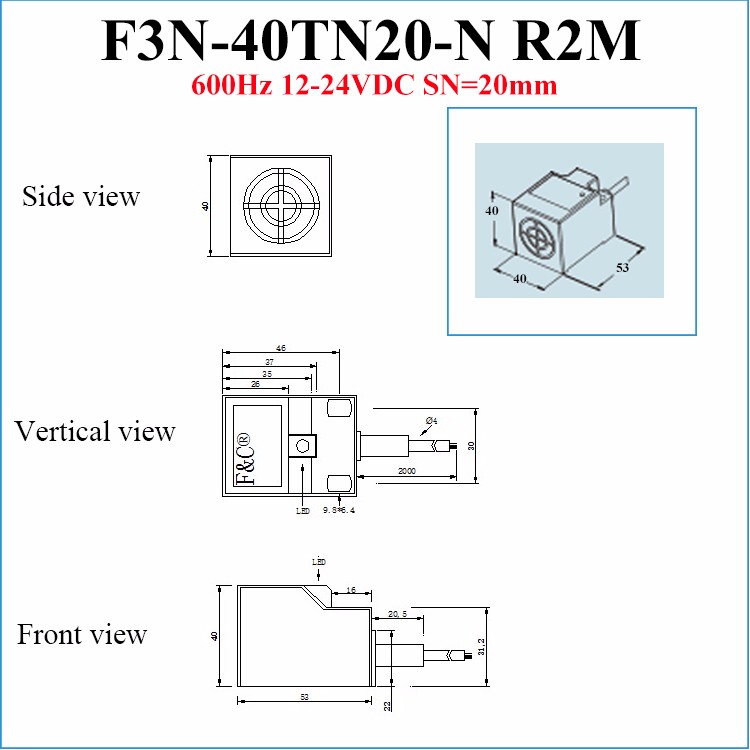

  F3N-40DN20_dimensionF3N-40TN20-N horizontal detector 20mm metal inductive proximity sensor switch IP67 water-proof  4mm sensing distance 2/3wires Proximity Sensor Switching Transducer
