Overview
Category
Model
Detection mode
Detection distance
Detected objects
Entry cable
F3N-06TN01-N R2M
NPN.NO
▆ 1mm
6×6×1(iron)
φ3×2M/3-wires or 150mm with M8 connector
F3N-06TN01-P R2M
PNP.NO
F3N-06DN01-N R2M
NPN.NO
F3N-06DN01-P R2M
PNP.NO

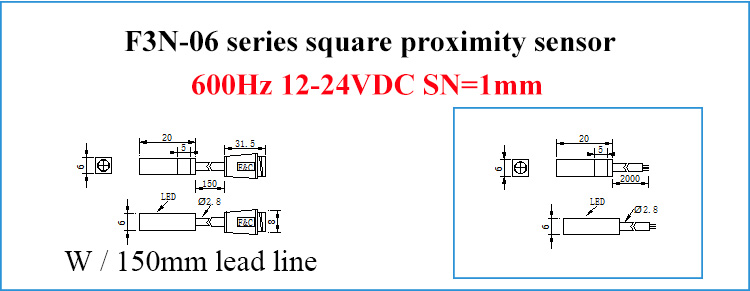

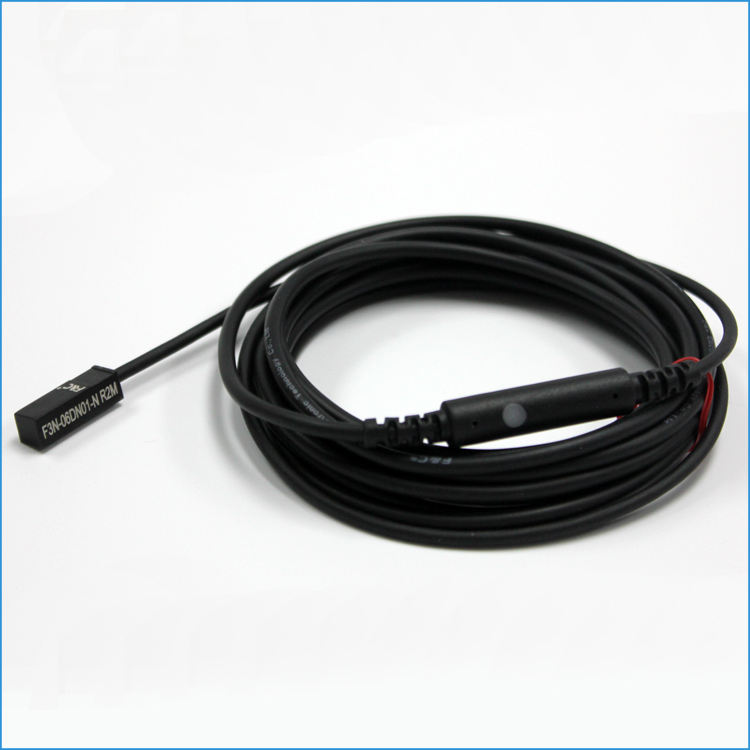

F&C Inductive proximity sensor with NPN NO, 12-24VDC, IP67 Sn1mm F3N series with CE
| Induction Method | Top Induction | Front Induction | ||
| NPN NO | F3N-06DN01-N R2M | F3N-06TN01-N R2M | ||
| NPN NC | F3N-06DN01-N2 R2M | F3N-06TN01-N2 R2M | ||
| PNP NO | F3N-06DN01-P R2M | F3N-06TN01-P R2M | ||
| PNP NC | F3N-06DN01-P2 R2M | F3N-06TN01-P2 R2M | ||
| Detection Distance1 | 1mm | |||
| Standard Detection Object | 18×18×1(iron) | |||
| Response Frequency | 600HZ (Different Frequency can be customized) | |||
| Hysteresis | within 10% of sensing distance | |||
| Operating Voltage | 12-24V DC | |||
| Current Consumption | Less than 8mA (No Load) | |||
| Load Current | 100mA Max@30V DC | |||
| Leakage Current | 1.1mA (No Load) | |||
| Residual Voltage | Less than 1.0V DC (No Load) | |||
| Protection circuit | Reverse circuit protection short circuit protection | |||
| Operating Temperature | -25~70ºC | |||
| Protection Degree | IP67(can customeize IP68) | |||
| Material | PBT and SUS | |||
| Wire Method |
1.dia 3×2M/3 wires 2 dia 3×2M/2 wires |
|||
