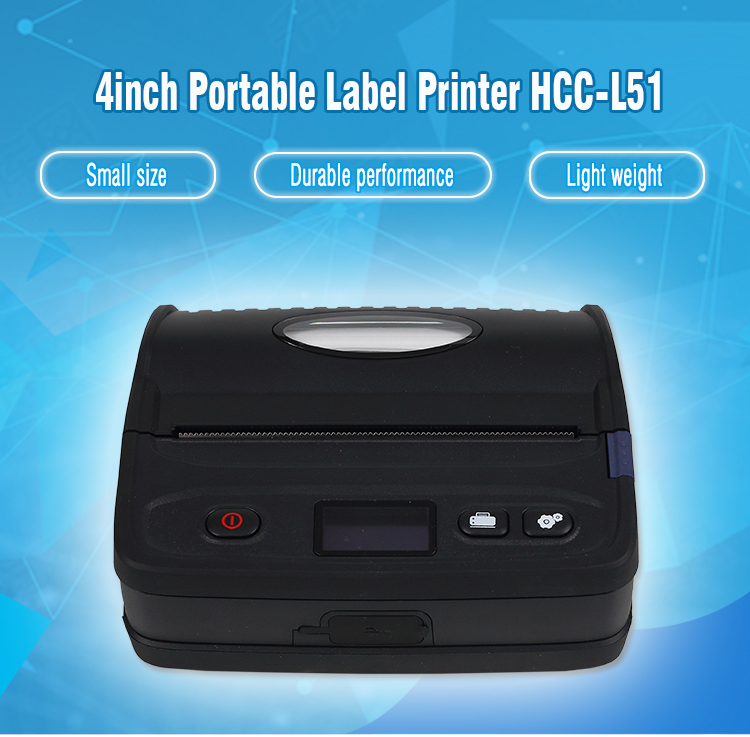

Bluetooth 2D Barcode Thermal Label Printing Mobile POS Printer HCC-L51
HCC-L51 indoor and outdoor working thermal printer is widely applied, such as the logistic, warehouse, catering, administrative fees receipt printing, post receipt printing, bill book printing machine,restaurant ordering, barcode printer for medical store, billing printer for retail shop, etc.
Feature

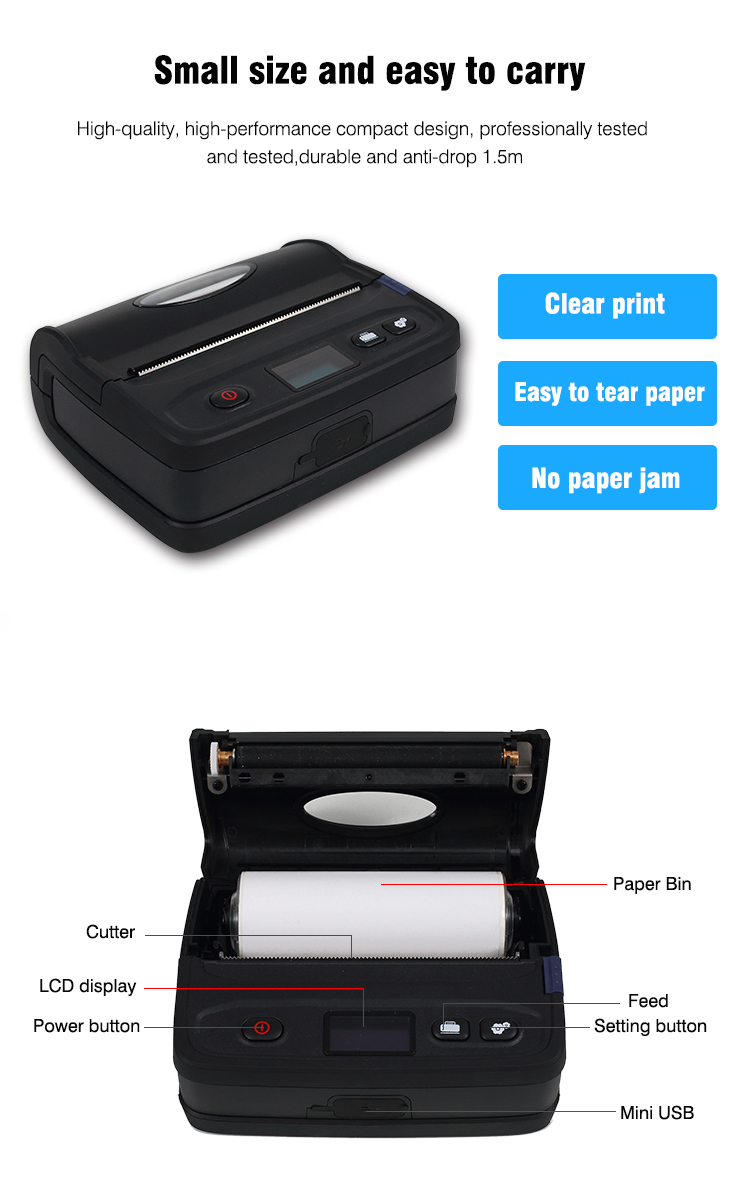

1. LCD display
2. 1”,2”,3”,4” Paper Size available
3. Super battery capability
4. Super diameter paper by outside bracket
5. Compatible with CPCL, ESC/POS command set
Specification
|
Printing Method |
Thermal Line |
|
|
Resolution |
8 dots/mm（203dpi） |
|
|
Effective Printing Width |
104mm/100mm/72mm/48mm/37.5mm |
|
|
101.5mm±0.5mm: 800dots/line 111.5mm±0.5mm:832dots/line |
||
|
Paper Width & Dots per line |
44mm±0.5mm: 300dots/line 58mm±0.5mm: 384dots/line 79.5mm±0.5mm: 576dots/line 104mm±0.5mm: 800dots/line 112mm±0.5mm: 832dots/line |
|
|
Printing Speed |
80mm/s (thermal paper); 50mm/s (label paper) |
|
|
Graph Printing |
Diagram, downloaded bitmap supported |
|
|
Print Font |
Chinese: 24×24; 16×16; ASCII: 9×24;12×24;18×16 |
|
|
TPH |
50km |
|
|
Barcode |
1-Dimension |
UPCA, UPCE, EAN13, EAN8, CODE39, ITF25, CODABAR, CODE9 |
|
3, CODE128 |
||
|
2-Dimension (reserved) |
PDF417, QR CODE, DATA Matrix |
|
|
Interface |
Mini USB+Bluetooth Double Mould Bluetooth2.0&Bluetooth4.0, one-to-many |
|
|
BT or one-to-one BT optional）or WIFI (reserved) |
||
|
Command Set |
ESC/POS & CPCL |
|
|
Other Functions |
Paper-out alarm, Black-mark detection, Auto-sleep, LCD Display, Buzzer |
|
|
Paper Type |
Thermal Paper, Black mark Paper（44mm or 58mm）and Label Paper |
|
|
Paper Roll Diameter |
Max 40mm (extensible) |
|
|
Paper Thickness |
0.06mm～0.14mm |
|
|
Battery& Charger |
7.4V/2300mAh rechargeable Li-ion battery; 8.4V/800mA charger |
|
|
Printing length for one charge |
more than 120m（25% printing density） |
|
|
Standby |
more than 150hours |
|
|
Paper Supply Method |
Drop-in easy paper loading |
|
|
Outline Dimension |
140(L)X115(W)X51(H)mm |
|
|
Weight |
500g（not including paper） |
|
|
Drop Resistance |
1.5m |
|
