System application:
Solar Pump Solution is mainly used in the fields of daily life water, agricultural and forestry irrigation, desert management, livestock water, village and town water supply.
MAIN FUNCTION
1. Max.power point tracking technology is adopted, and the efficiency > 99%.
2. It can drive three-phase AC pump.
3. Fully automatic operation control, soft start and soft stop, unattended.
4. Perfect system protection mechanism, overvoltage, undervoltage, overcurrent, short circuit, lack of phase, pump drying and other protection functions.
5. Flow and energy display, RS485 function.
6. DC and AC input power supply.
Production parameter
|

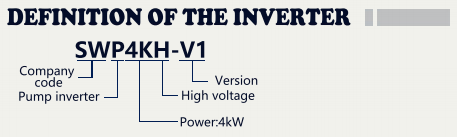

Item \Model
|
SWP4KH-V1
|
SWP5K5H
|
SWP7K5H
|
SWP11KH-V1
|
SWP15KH-V1
|
SWP18K5H
|
SWP22KH-V1
|
SWP30KH-V1
|
SWP37KH-V1
|
|
PV Input
|
|
|
|
|
|
|
|
|
|
|
Max. input DC voltage
|
800V
|
800V
|
800V
|
800V
|
800V
|
800V
|
800V
|
800V
|
800V
|
|
Recommended MPPT Voltage
|
485~750Vdc
|
485~750Vdc
|
485~750Vdc
|
485~750Vdc
|
485~750Vdc
|
485~750Vdc
|
485~750Vdc
|
485~750Vdc
|
485~750Vdc
|
|
Max. MPPT Effiffifficiency
|
99%
|
99%
|
99%
|
99%
|
99%
|
99%
|
99%
|
99%
|
99%
|
|
Number of String
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
|
A.C. Input
|
|
|
|
|
|
|
|
|
|
|
Voltage
|
330~460Vac(3PH) When PV and power grid are required to be mixed, accessory products need to be added
|
|
Frequency
|
50Hz/60Hz(±3%)
|
|
A.C. Output
|
|
|
|
|
|
|
|
|
|
|
Max. applicable motor output power
|
4kW
|
5.5kW
|
7.5kW
|
11kW
|
15kW
|
18.5kW
|
22kW
|
30kW
|
37kW
|
|
Rated Output Voltage
|
380-460Vac 3-phase
|
380-460Vac 3-phase
|
380-460Vac 3-phase
|
380-460Vac 3-phase
|
380-460Vac 3-phase
|
380-460Vac 3-phase
|
380-460Vac 3-phase
|
380-460Vac 3-phase
|
380-460Vac 3-phase
|
|
Output Frequency Range
|
0~50/60Hz
|
0~50/60Hz
|
0~50/60Hz
|
0~50/60Hz
|
0~50/60Hz
|
0~50/60Hz
|
0~50/60Hz
|
0~50/60Hz
|
0~50/60Hz
|
|
Rated output current
|
10A
|
13A
|
18A
|
21A
|
29A
|
36A
|
42A
|
57A
|
71A
|
|
Mechanical data
|
|
|
|
|
|
|
|
|
|
|
Dimensions(W/H/D)(mm)
|
252/195/230
|
340/273/288
|
340/273/288
|
340/273/288
|
540/310/295
|
540/310/295
|
540/310/295
|
594/334/301
|
594/334/301
|
|
Weight
|
3.2kg
|
4.9kg
|
4.9kg
|
5.2kg
|
9kg
|
9kg
|
9kg
|
16kg
|
16kg
|
|
System
|
|
|
|
|
|
|
|
|
|
|
Protection Level
|
IP20
|
IP20
|
IP20
|
IP20
|
IP20
|
IP20
|
IP20
|
IP20
|
IP20
|
|
Operating Temperature
|
-25℃ to +50℃,above 50℃ need derate operating
|
|
Cooling Way
|
Force cooling
|
|
Display
|
LED
|
|
Communication interface
|
RS485
|
|
Altitude
|
1000m; above 1000m need derate operating
|
|
Noise Emission
|
<65dB
|
|
Compliance
|
EN 50178; IEC/EN 62109-1; IEC 61800
|
